Dissecting the Cloud – Part 1

“The Cloud brings it with it the promise of utility-style computing and the ability to pay according to usage.

Cloud Computing provides elasticity or the ability to grow and shrink based on traffic patterns.

Cloud Computing does away with CAPEX and the need to buy infrastructure upfront and replaces it with OPEX model and so on”.

All this old news and has been repeated many times. But what exactly constitutes cloud computing? What brings about the above features? What are its building blocks of the cloud that enable one to realize the above?

This post tries to look deeper into the innards of the Cloud to determine what the cloud really is.

Before we get to this I would like to dwell on an analogy to understand the Cloud better.

Let us assume, Mr. A owns a large building of about 15,000 sq feet and about 100 feet tall. Let us assume that Mr. A wants to rent this building.

Now, assume that the door of this building opens to single, large room on the inside!

Mr. X comes to rent this building. If this was the case then poor Mr. X would have to pay through his nose, presumably, for the entire building even though his requirement would have been for a small room of about 600 x 600 feet. Imagine the waste of space. Moreover this would also have resulted in an enormous waste of electricity. Imagine the lighting needed. Also an inordinate amount of water would have to be utilized if this single, large room needed to be cleaned. The cost for all of this would have to be borne by Mr. X.

This is clearly not a pleasant state of affairs for either Mr. X or for the owner Mr. A of the building.

The solution to this is easy.  What Mr. A needs to do, is to partition the building into self-contained rooms (600 x 600 sq feet) with all the amenities. Each self-contained unit would need to have its own electricity and water meter.

Now Mr. A can rent rooms to different tenants on their need basis. This is a win-win situation both for Mr, A and Mr. X. The tenants only need to pay for the rooms they occupy and the electricity and water they consume.

This is exactly the principle behind cloud computing and is known as ‘virtualization’

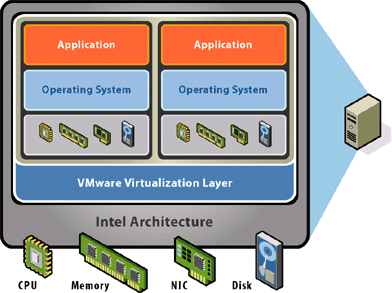

There are 3 computing components that one must consider. CPU, Network and Storage. The below picture shows the virtualization of CPU,RAM, NIC (network card), Disk (storage)


The Cloud is essentially made up of  anywhere between 100 servers to 100,000 servers. The servers are akin to the large building. Running a single OS and application(s) on the entire server is a waste of computing, storage and network resources.

Virtualization abstracts the hardware, storage and network through the use of software known as the ‘hypervisor’. On top of the hypervisor several ‘guest OSes’ can run. Applications can then run on these guest OSes.

Hence over the CPU (single, dual or multi-core) of the server,  multiple guest OS’es  can run each with its own set of applications

This is similar to partitioning the large CPU resource of the server into smaller units.

There are 3 main Virtualization technologies namely VMware, Citrix and MS Hyper-V

Here is a diagram showing the 3 main the virtualization technologies


To be continued …

Find me on Google+

Sneak preview of Windows 8 with VMWare Workstation 8.0.3

Here’s a sneak preview of Windows 8 evaluation version using VMWare’s Workstation 8.0.3. For those who read my earlier post “Experiences with VMWare Workstation 8.0.3 : The good, bad and the Ugly” the Windows 8 VM experience  must definitely rate as good. The setup and installation of Windows 8 in Workstation was a breeze. There was just one hiccup which is mentioned below.

The initial experience with Windows 8 is truly breath taking. The metro-style screen with its mosaic of tiles looks really great. Besides, Microsoft with Windows 8 is definitely taking the right path with a tile for the App Store and the SkyDrive. More on that later…

To get started download Windows 8 Release preview ISO image from http://windows.microsoft.com/en-US/windows-8/iso. Make a note of the Product key in the page.

Start your VMWare Workstation and choose “Create a new VM”. Browse to the directory which has the ISO image start the VM. Use the product key that you made a note of in the download page. While the installation will start you are bound to run into the error “Windows cannot read the product key from the unattend answer file”. To fix this issue power off the Windows 8 VM. Now select the “Settings” of the VM and remove floppy drive from the settings. Now Power on your VM. This time things should go smoothly and you installation process should begin.

Soon you should see Windows 8 installation screen

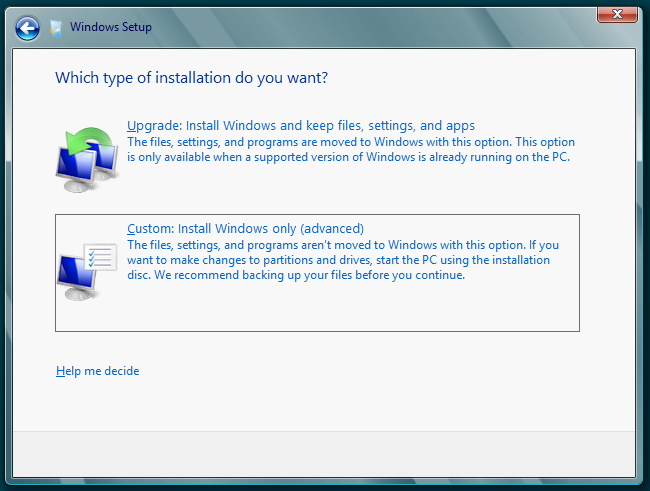

Choose the custom option as shown below

The installation should start and you should see

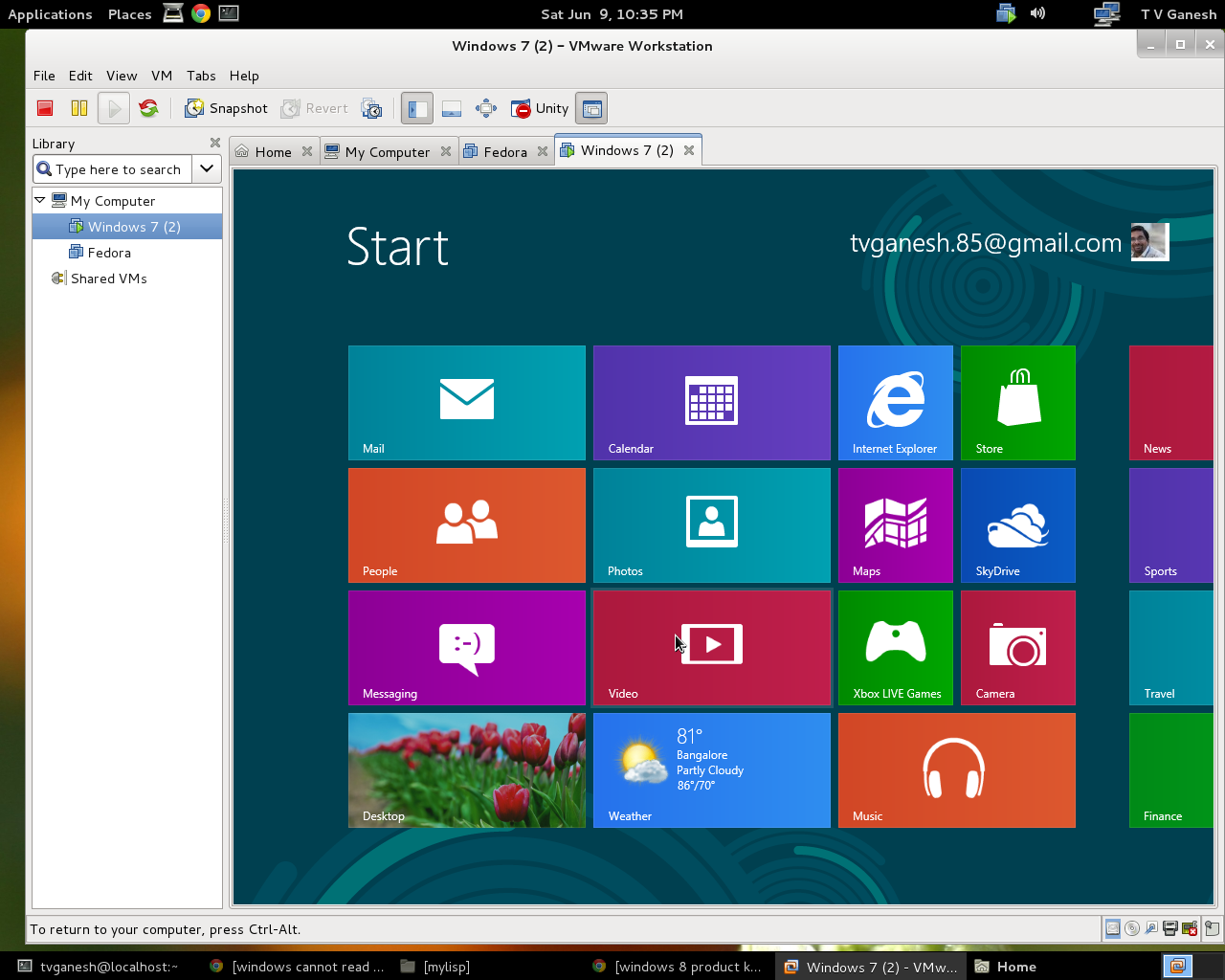

Follow the prompts and pretty soon you should see a really appealing Windows 8 metro style screen. The screen has a really cool tiled look. In fact with this look icons seem almost passe.

A quick look at this screen and you will see that Microsoft has now included the Store (App Store) and the SkyDrive. I am certain both of these will be put to great use in the future. Games and apps will be downloaded from the App Store. Play around the desktop.

Windows 8 is supposed to be based on touch where the user touches the screen to select an application. To navigate between applications or to get back to the metro-style screen move the mouse to the lower left corner of the screen and you should see a small metro-style screen. The top left corner has your current running applications.

I wanted to check out the Skydrive. So I created 2 text files in my Documents folder and selected Skydrive.

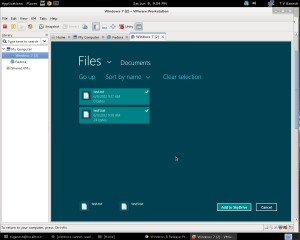

You can right click the files and select them. Go the bottom right corner and right click. You should see the task bar pop up. Click add and you will get a screen as shown below

Uploading files and folders to the cloud is bound to be commonly used in the not too distant future. The Skydrive right on your desktop will be a god send for users who want to keep a back up copy on the Cloud.

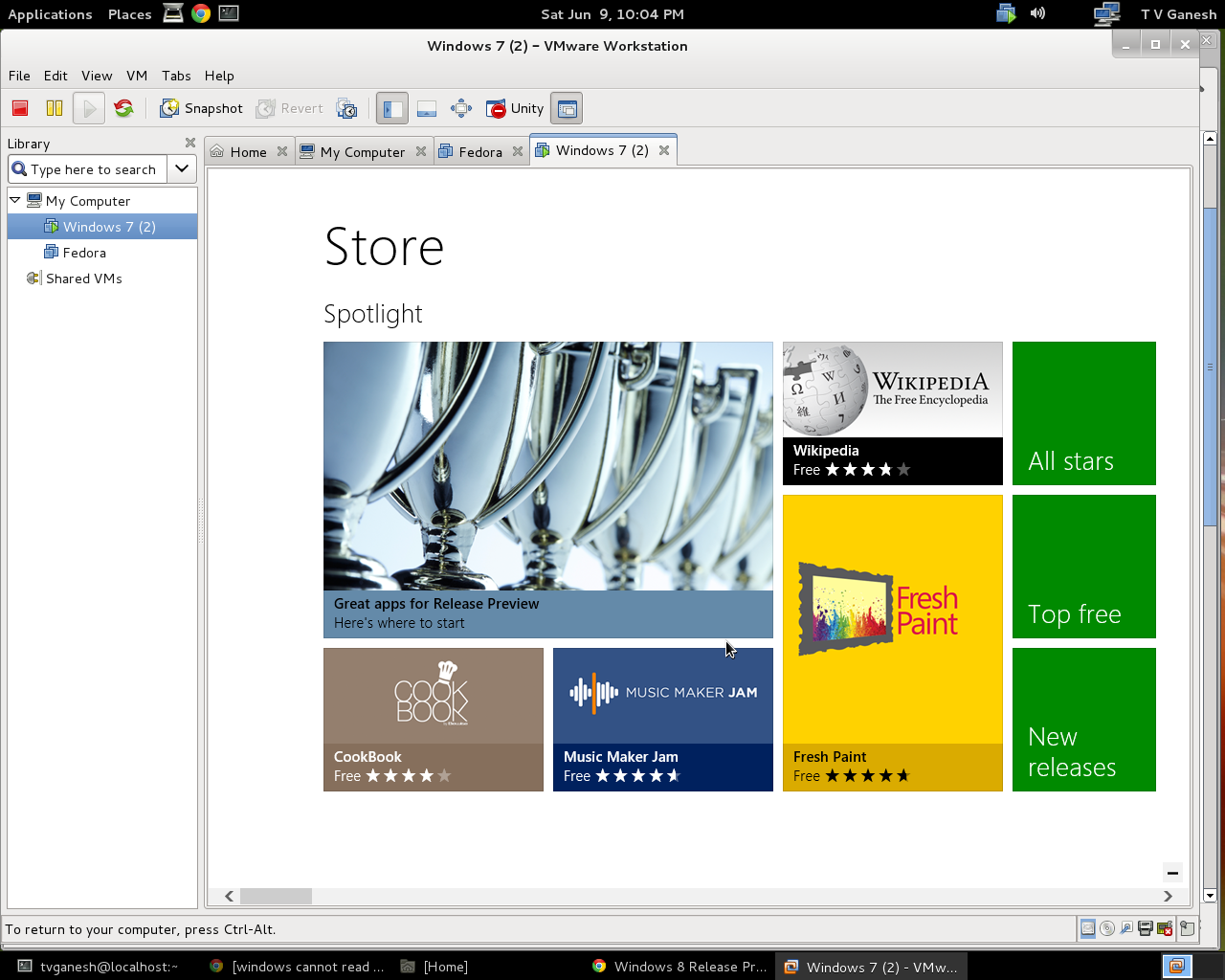

The App Store is another alluring addition.

If the boot  and load times of applications are fast in Windows 8 then Windows 8 looks to be a clear winner.

In fact with the stylish tiled look, touch interface, app store and Skydrive Windows 8 may actually give iPad a run for its money given the fact that Windows 8 provides actual computing capability in addition to consuming content.
