Deconstructing Convolutional Neural Networks with Tensorflow and Keras

I have been very fascinated by how Convolution Neural  Networks have been able to, so efficiently,  do image classification and image recognition CNN’s have been very successful in in both these tasks. A good paper that explores the workings of a CNN Visualizing and Understanding Convolutional Networks  by Matthew D Zeiler and Rob Fergus. They show how through a reverse process of convolution using a deconvnet.

In their paper they show how by passing the feature map through a deconvnet ,which does the reverse process of the convnet, they can reconstruct what input pattern originally caused a given activation in the feature map

In the paper they say “A deconvnet can be thought of as a convnet model that uses the same components (filtering, pooling) but in reverse, so instead of mapping pixels to features, it does the opposite. An input image is presented to the CNN and features  activation computed throughout the layers. To examine a given convnet activation, we set all other activations in the layer to zero and pass the feature maps as input to the attached deconvnet layer. Then we successively (i) unpool, (ii) rectify and (iii) filter to reconstruct the activity in the layer beneath that gave rise to the chosen activation. This is then repeated until input pixel space is reached.”

I started to scout the internet to see how I can implement this reverse process of Convolution to understand what really happens under the hood of a CNN.  There are a lot of good articles and blogs, but I found this post Applied Deep Learning – Part 4: Convolutional Neural Networks take the visualization of the CNN one step further.

This post takes VGG16 as the pre-trained network and then uses this network to display the intermediate visualizations.  While this post was very informative and also the visualizations of the various images were very clear, I wanted to simplify the problem for my own understanding.

Hence I decided to take the MNIST digit classification as my base problem. I created a simple 3 layer CNN which gives close to 99.1% accuracy and decided to see if I could do the visualization.

As mentioned in the above post, there are 3 major visualisations

  1. Feature activations at the layer
  2. Visualisation of the filters
  3. Visualisation of the class outputs

Feature Activation – This visualization the feature activation at the 3 different layers for a given input image. It can be seen that first layer  activates based on the edge of the image. Deeper layers activate in a more abstract way.

Visualization of the filters: This visualization shows what patterns the filters respond maximally to. This is implemented in Keras here

To do this the following is repeated in a loop

  • Choose a loss function that maximizes the value of a convnet filter activation
  • Do gradient ascent (maximization) in input space that increases the filter activation

Visualizing Class Outputs of the MNIST Convnet: This process is similar to determining the filter activation. Here the convnet is made to generate an image that represents the category maximally.

You can access the Google colab notebook here – Deconstructing Convolutional Neural Networks in Tensoflow and Keras

import numpy as np
import pandas as pd
import os
import tensorflow as tf
import matplotlib.pyplot as plt
from keras.layers import Dense, Dropout, Flatten
from keras.layers import Conv2D, MaxPooling2D, Input
from keras.models import Model
from sklearn.model_selection import train_test_split
from keras.utils import np_utils
Using TensorFlow backend.
In [0]:
mnist=tf.keras.datasets.mnist
# Set training and test data and labels
(training_images,training_labels),(test_images,test_labels)=mnist.load_data()
In [0]:
#Normalize training data
X =np.array(training_images).reshape(training_images.shape[0],28,28,1)
# Normalize the images by dividing by 255.0
X = X/255.0
X.shape
# Use one hot encoding for the labels
Y = np_utils.to_categorical(training_labels, 10)
Y.shape
# Split training data into training and validation data in the ratio of 80:20
X_train, X_validation, y_train, y_validation = train_test_split(X,Y,test_size=0.20, random_state=42)
In [4]:
# Normalize test data
X_test =np.array(test_images).reshape(test_images.shape[0],28,28,1)
X_test=X_test/255.0
#Use OHE for the test labels
Y_test = np_utils.to_categorical(test_labels, 10)
X_test.shape
Out[4]:
(10000, 28, 28, 1)

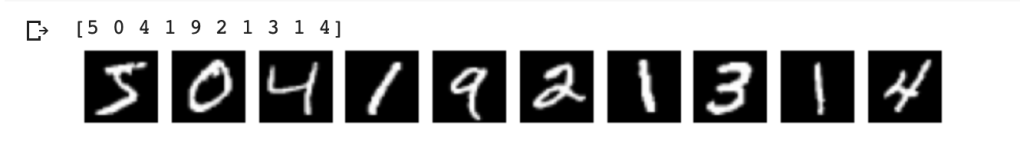

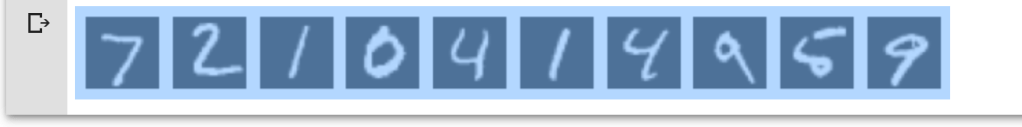

Display data

Display the training data and the corresponding labels

In [5]:
print(training_labels[0:10])
f, axes = plt.subplots(1, 10, sharey=True,figsize=(10,10))
for i,ax in enumerate(axes.flat):
    ax.axis('off')
    ax.imshow(X[i,:,:,0],cmap="gray")

Create a Convolutional Neural Network

The CNN consists of 3 layers

  • Conv2D of size 28 x 28 with 24 filters
  • Perform Max pooling
  • Conv2D of size 14 x 14 with 48 filters
  • Perform max pooling
  • Conv2d of size 7 x 7 with 64 filters
  • Flatten
  • Use Dense layer with 128 units
  • Perform 25% dropout
  • Perform categorical cross entropy with softmax activation function
In [0]:
num_classes=10
inputs = Input(shape=(28,28,1))
x = Conv2D(24,kernel_size=(3,3),padding='same',activation="relu")(inputs)
x = MaxPooling2D(pool_size=(2, 2))(x)
x = Conv2D(48, (3, 3), padding='same',activation='relu')(x)
x = MaxPooling2D(pool_size=(2, 2))(x)
x = Conv2D(64, (3, 3), padding='same',activation='relu')(x)
x = MaxPooling2D(pool_size=(2, 2))(x)
x = Flatten()(x)
x = Dense(128, activation='relu')(x)
x = Dropout(0.25)(x)
output = Dense(num_classes,activation="softmax")(x)

model = Model(inputs,output)

model.compile(loss='categorical_crossentropy',
          optimizer='adam',
          metrics=['accuracy'])

Summary of CNN

Display the summary of CNN

In [7]:
model.summary()
Model: "model_1"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
input_1 (InputLayer)         (None, 28, 28, 1)         0
_________________________________________________________________
conv2d_1 (Conv2D)            (None, 28, 28, 24)        240
_________________________________________________________________
max_pooling2d_1 (MaxPooling2 (None, 14, 14, 24)        0
_________________________________________________________________
conv2d_2 (Conv2D)            (None, 14, 14, 48)        10416
_________________________________________________________________
max_pooling2d_2 (MaxPooling2 (None, 7, 7, 48)          0
_________________________________________________________________
conv2d_3 (Conv2D)            (None, 7, 7, 64)          27712
_________________________________________________________________
max_pooling2d_3 (MaxPooling2 (None, 3, 3, 64)          0
_________________________________________________________________
flatten_1 (Flatten)          (None, 576)               0
_________________________________________________________________
dense_1 (Dense)              (None, 128)               73856
_________________________________________________________________
dropout_1 (Dropout)          (None, 128)               0
_________________________________________________________________
dense_2 (Dense)              (None, 10)                1290
=================================================================
Total params: 113,514
Trainable params: 113,514
Non-trainable params: 0
_________________________________________________________________

Perform Gradient descent and validate with the validation data

In [8]:
epochs = 20
batch_size=256
history = model.fit(X_train,y_train,
         epochs=epochs,
         batch_size=batch_size,
         validation_data=(X_validation,y_validation))
————————————————
acc = history.history[ ‘accuracy’ ]
val_acc = history.history[ ‘val_accuracy’ ]
loss = history.history[ ‘loss’ ]
val_loss = history.history[‘val_loss’ ]
epochs = range(len(acc)) # Get number of epochs
#————————————————

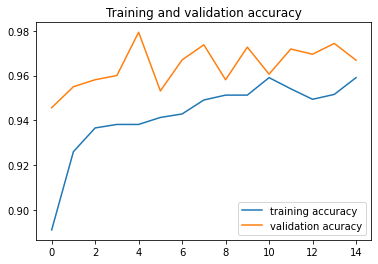

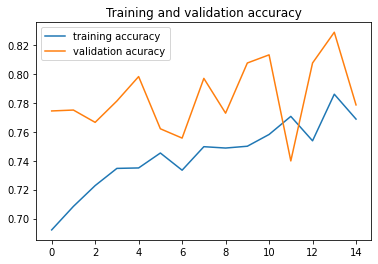

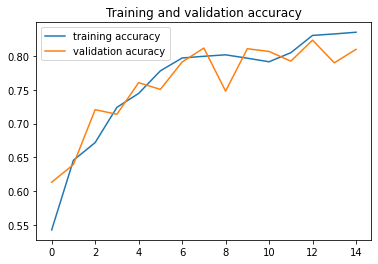

# Plot training and validation accuracy per epoch
#————————————————
plt.plot ( epochs, acc,label=”training accuracy” )
plt.plot ( epochs, val_acc, label=’validation acuracy’ )
plt.title (‘Training and validation accuracy’)

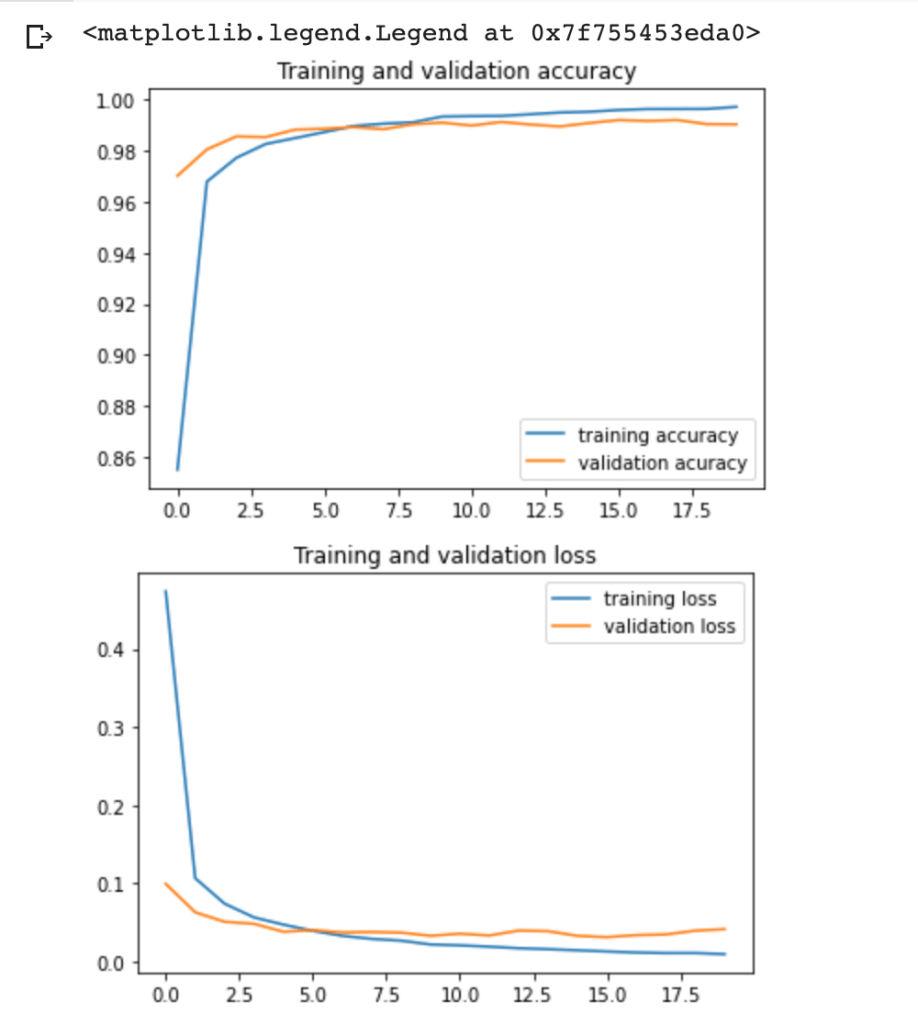

plt.legend()
plt.figure()
#————————————————

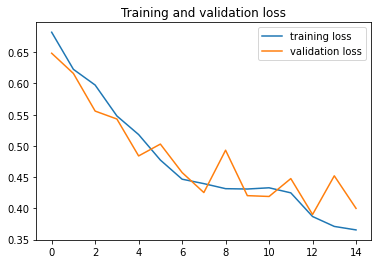

# Plot training and validation loss per epoch
#————————————————
plt.plot ( epochs, loss , label=”training loss”)
plt.plot ( epochs, val_loss,label=”validation loss” )
plt.title (‘Training and validation loss’ )
plt.legend()
Test model on test data
f, axes = plt.subplots(1, 10, sharey=True,figsize=(10,10))
for i,ax in enumerate(axes.flat):
ax.axis(‘off’)
ax.imshow(X_test[i,:,:,0],cmap=”gray”)
l=[]
for i in range(10):
  x=X_test[i].reshape(1,28,28,1)
  y=model.predict(x)
  m = np.argmax(y, axis=1)
  print(m)
[7]
[2]
[1]
[0]
[4]
[1]
[4]
[9]
[5]
[9]

Generate the filter activations at the intermediate CNN layers

In [12]:
img = test_images[51].reshape(1,28,28,1)
fig = plt.figure(figsize=(5,5))
print(img.shape)
plt.imshow(img[0,:,:,0],cmap="gray")
plt.axis('off')

Display the activations at the intermediate layers

This displays the intermediate activations as the image passes through the filters and generates these feature maps

In [13]:
layer_names = ['conv2d_4', 'conv2d_5', 'conv2d_6']

layer_outputs = [layer.output for layer in model.layers if 'conv2d' in layer.name]
activation_model = Model(inputs=model.input,outputs=layer_outputs)
intermediate_activations = activation_model.predict(img)
images_per_row = 8
max_images = 8

for layer_name, layer_activation in zip(layer_names, intermediate_activations):
    print(layer_name,layer_activation.shape)
    n_features = layer_activation.shape[-1]
    print("features=",n_features)
    n_features = min(n_features, max_images)
    print(n_features)

    size = layer_activation.shape[1]
    print("size=",size)
    n_cols = n_features // images_per_row
    display_grid = np.zeros((size * n_cols, images_per_row * size))


    for col in range(n_cols):
      for row in range(images_per_row):
          channel_image = layer_activation[0,:, :, col * images_per_row + row]

          channel_image -= channel_image.mean()
          channel_image /= channel_image.std()
          channel_image *= 64
          channel_image += 128
          channel_image = np.clip(channel_image, 0, 255).astype('uint8')
          display_grid[col * size : (col + 1) * size,
                         row * size : (row + 1) * size] = channel_image
    scale = 2. / size
    plt.figure(figsize=(scale * display_grid.shape[1],
                        scale * display_grid.shape[0]))
    plt.axis('off')
    plt.title(layer_name)
    plt.grid(False)
    plt.imshow(display_grid, aspect='auto', cmap='viridis')

plt.show()

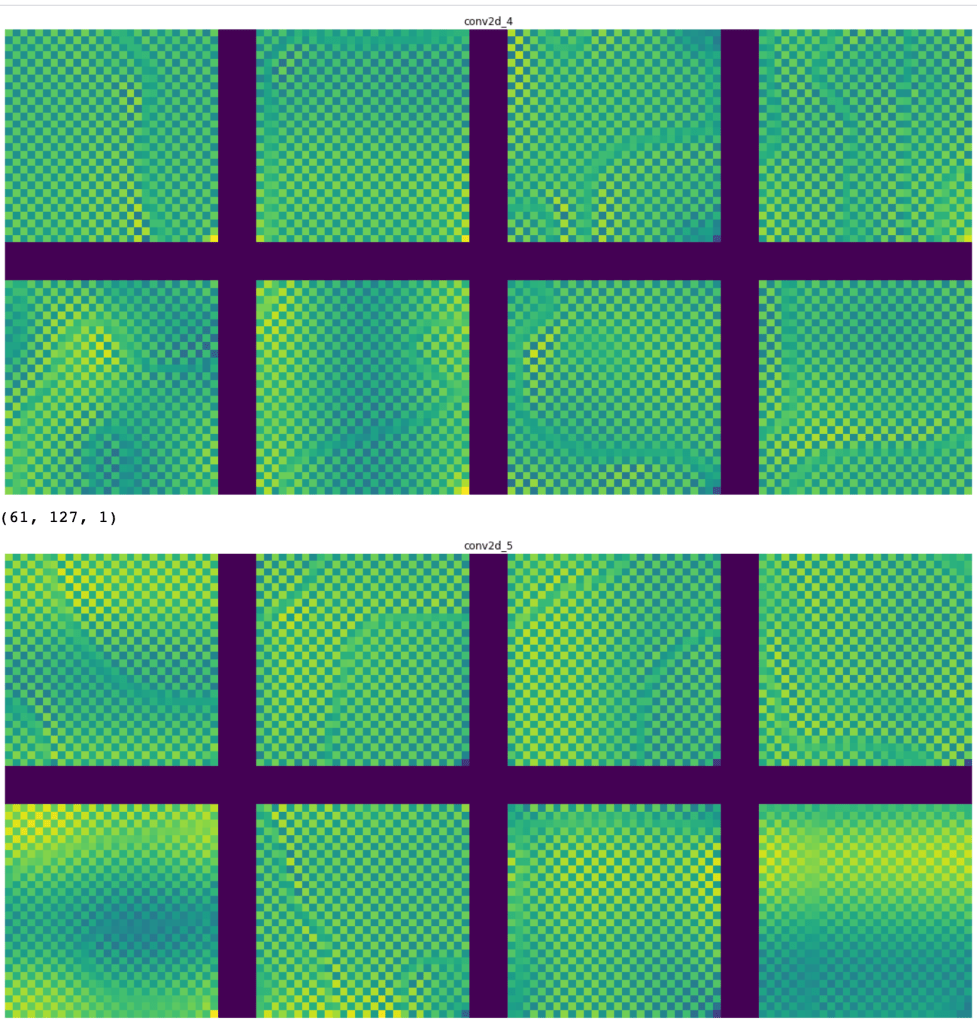

It can be seen that at the higher layers only abstract features of the input image are captured
# To fix the ImportError: cannot import name 'imresize' in the next cell. Run this cell. Then comment and restart and run all
#!pip install scipy==1.1.0

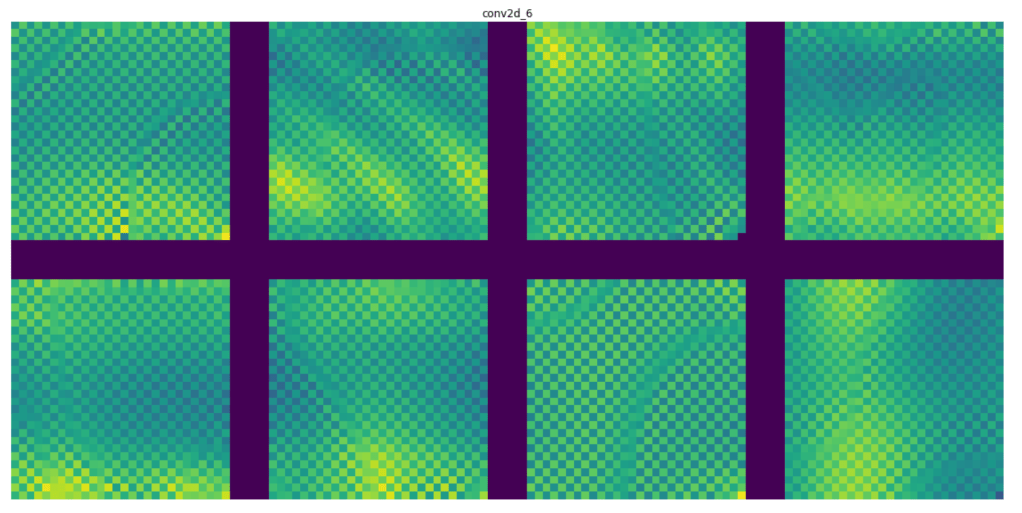

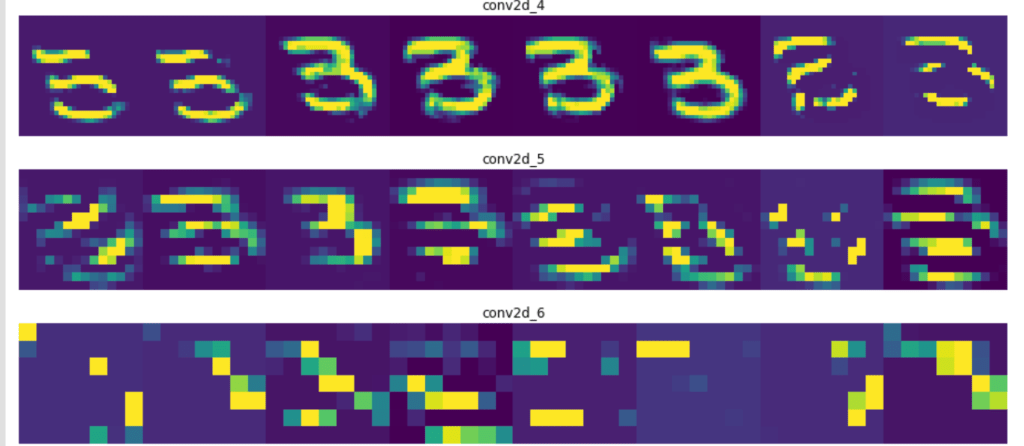

Visualize the pattern that the filters respond to maximally

  • Choose a loss function that maximizes the value of the CNN filter in a given layer
  • Start from a blank input image.
  • Do gradient ascent in input space. Modify input values so that the filter activates more
  • Repeat this in a loop.
In [14]:
from vis.visualization import visualize_activation, get_num_filters
from vis.utils import utils
from vis.input_modifiers import Jitter

max_filters = 24
selected_indices = []
vis_images = [[], [], [], [], []]
i = 0
selected_filters = [[0, 3, 11, 15, 16, 17, 18, 22],
    [8, 21, 23, 25, 31, 32, 35, 41],
    [2, 7, 11, 14, 19, 26, 35, 48]]

# Set the layers
layer_name = ['conv2d_4', 'conv2d_5', 'conv2d_6']
# Set the layer indices
layer_idx = [1,3,5]
for layer_name,layer_idx in zip(layer_name,layer_idx):


    # Visualize all filters in this layer.
    if selected_filters:
        filters = selected_filters[i]
    else:
        # Randomly select filters
        filters = sorted(np.random.permutation(get_num_filters(model.layers[layer_idx]))[:max_filters])
    selected_indices.append(filters)

    # Generate input image for each filter.
    # Loop through the selected filters in each layer and generate the activation of these filters
    for idx in filters:
        img = visualize_activation(model, layer_idx, filter_indices=idx, tv_weight=0.,
                                   input_modifiers=[Jitter(0.05)], max_iter=300)
        vis_images[i].append(img)

    # Generate stitched image palette with 4 cols so we get 2 rows.
    stitched = utils.stitch_images(vis_images[i], cols=4)
    plt.figure(figsize=(20, 30))
    plt.title(layer_name)
    plt.axis('off')
    stitched = stitched.reshape(1,61,127,1)
    plt.imshow(stitched[0,:,:,0])
    plt.show()
    i += 1
from vis.utils import utils
new_vis_images = [[], [], [], [], []]
i = 0
layer_name = ['conv2d_4', 'conv2d_5', 'conv2d_6']
layer_idx = [1,3,5]
for layer_name,layer_idx in zip(layer_name,layer_idx):

    # Generate input image for each filter.
    for j, idx in enumerate(selected_indices[i]):
        img = visualize_activation(model, layer_idx, filter_indices=idx,
                                   seed_input=vis_images[i][j], input_modifiers=[Jitter(0.05)], max_iter=300)
        #img = utils.draw_text(img, 'Filter {}'.format(idx))
        new_vis_images[i].append(img)

    stitched = utils.stitch_images(new_vis_images[i], cols=4)
    plt.figure(figsize=(20, 30))
    plt.title(layer_name)
    plt.axis('off')
    print(stitched.shape)
    stitched = stitched.reshape(1,61,127,1)
    plt.imshow(stitched[0,:,:,0])
    plt.show()
    i += 1

Visualizing Class Outputs

Here the CNN will generate the image that maximally represents the category. Each of the output represents one of the digits as can be seen below

In [16]:
from vis.utils import utils
from keras import activations
codes = '''
zero 0
one 1
two 2
three 3
four 4
five 5
six 6
seven 7
eight 8
nine 9
'''
layer_idx=10
initial = []
images = []
tuples = []
# Swap softmax with linear for better visualization
model.layers[layer_idx].activation = activations.linear
model = utils.apply_modifications(model)
for line in codes.split('\n'):
    if not line:
        continue
    name, idx = line.rsplit(' ', 1)
    idx = int(idx)
    img = visualize_activation(model, layer_idx, filter_indices=idx,
                               tv_weight=0., max_iter=300, input_modifiers=[Jitter(0.05)])

    initial.append(img)
    tuples.append((name, idx))

i = 0
for name, idx in tuples:
    img = visualize_activation(model, layer_idx, filter_indices=idx,
                               seed_input = initial[i], max_iter=300, input_modifiers=[Jitter(0.05)])
    #img = utils.draw_text(img, name) # Unable to display text on gray scale image
    i += 1
    images.append(img)

stitched = utils.stitch_images(images, cols=4)
plt.figure(figsize=(20, 20))
plt.axis('off')
stitched = stitched.reshape(1,94,127,1)
plt.imshow(stitched[0,:,:,0])

plt.show()

In the grid below the class outputs show the MNIST digits to which output responds to maximally. We can see the ghostly outline
of digits 0 – 9. We can clearly see the outline if 0,1, 2,3,4,5 (yes, it is there!),6,7, 8 and 9. If you look at this from a little distance the digits are clearly visible. Isn’t that really cool!!




Conclusion:


It is really interesting to see the class outputs which show the image to which the class output responds to maximally. In the
post Applied Deep Learning – Part 4: Convolutional Neural Networks the class output show much more complicated images and is worth a look. It is really interesting to note that the model has adjusted the filter values and the weights of the fully connected network to maximally respond to the MNIST digits

References

1. Visualizing and Understanding Convolutional Networks
2. Applied Deep Learning – Part 4: Convolutional Neural Networks
3. Visualizing Intermediate Activations of a CNN trained on the MNIST Dataset
4. How convolutional neural networks see the world
5. Keras – Activation_maximization

Also see

1. Using Reinforcement Learning to solve Gridworld
2. Deep Learning from first principles in Python, R and Octave – Part 8
3. Cricketr learns new tricks : Performs fine-grained analysis of players
4. Video presentation on Machine Learning, Data Science, NLP and Big Data – Part 1
5. Big Data-2: Move into the big league:Graduate from R to SparkR
6. OpenCV: Fun with filters and convolution
7. Powershell GUI – Adding bells and whistles

To see all posts click Index of posts

The mechanics of Convolutional Neural Networks in Tensorflow and Keras

Convolutional Neural Networks (CNNs), have been very popular in the last decade or so. CNNs have been used in multiple applications like image recognition, image classification, facial recognition, neural style transfer etc. CNN’s have been extremely successful in handling these kind of problems. How do they work? What makes them so successful? What is the principle behind CNN’s ?

Note: this post is based on two Coursera courses I did, namely namely Deep Learning specialisation by Prof Andrew Ng and Tensorflow Specialisation by  Laurence Moroney.

In this post I show you how CNN’s work. To understand how CNNs work, we need to understand the concept behind machine learning algorithms. If you take a simple machine learning algorithm in which you are trying to do multi-class classification using softmax or binary classification with the sigmoid function, for a set of for a set of input features against a target variable we need to create an objective function of the input features versus the target variable. Then we need to minimise this objective function, while performing gradient descent, such that the cost  is the lowest. This will give the set of weights for the different variables in the objective function.

The central problem in ML algorithms is to do feature selection, i.e.  we need to find the set of features that actually influence the target.  There are various methods for doing features selection – best fit, forward fit, backward fit, ridge and lasso regression. All these methods try to pick out the predictors that influence the output most, by making the weights of the other features close to zero. Please look at my post – Practical Machine Learning in R and Python – Part 3, where I show you the different methods for doing features selection.

In image classification or Image recognition we need to find the important features in the image. How do we do that? Many years back, have played around with OpenCV.  While working with OpenCV I came across are numerous filters like the Sobel ,the Laplacian, Canny, Gaussian filter et cetera which can be used to identify key features of the image. For example the Canny filter feature can be used for edge detection, Gaussian for smoothing, Sobel for determining the derivative and we have other filters for detecting vertical or horizontal edges. Take a look at my post Computer Vision: Ramblings on derivatives, histograms and contours So for handling images we need to apply these filters to pick  out the key features of the image namely the edges and other features. So rather than using the entire image’s pixels against the target class we can pick out the features from the image and use that as predictors of the target output.

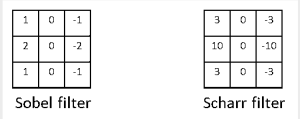

Note: that in Convolutional Neural Network, fixed filter values like the those shown above  are not used directly. Rather the filter values are learned through back propagation and gradient descent as shown below.

In CNNs the filter values are considered to be weights which are then learned and updated in each forward/backward propagation cycle much like the way a fully connected Deep Learning Network learns the weights of the network.

Here is a short derivation of the most important parts of how a CNNs work

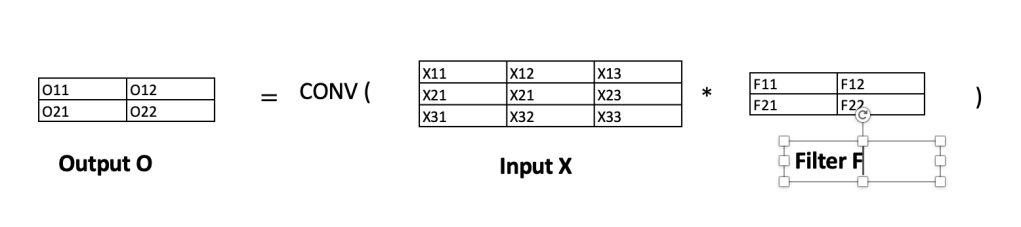

The convolution of a filter F with the input X can be represented as.





Convolving we get



This the forward propagation as it passes through a non-linear function like Relu



To go through back propagation we need to compute the \partial L  at every node of Convolutional Neural network



The loss with respect to the output is \partial L/\partial O. \partial O/\partial X & \partial O/\partial F are the local derivatives

We need these local derivatives because we can learn the filter values using gradient descent

where \alpha is the learning rate. Also \partial L/\partial X is the loss which is back propagated to the previous layers. You can see the detailed derivation of back propagation in my post Deep Learning from first principles in Python, R and Octave – Part 3 in a L-layer, multi-unit Deep Learning network.

In the fully connected layers the weights associated with each connection is computed in every cycle of forward and backward propagation using gradient descent. Similarly, the filter values are also computed and updated in each forward and backward propagation cycle. This is done so as to minimize the loss at the output layer.

By using the chain rule and simplifying the back propagation for the Convolutional layers we get these 2 equations. The first equation is used to learn the filter values and the second is used pass the loss to layers before

(for the detailed derivation see Convolutions and Backpropagations

An important aspect of performing convolutions is to reduce the size of  the flattened image that is passed into the fully connected DL network. Successively convolving with 2D filters and doing a max pooling helps to reduce the size of the features that we can use for learning the images. Convolutions also enable a sparsity of connections  as you can see in the diagram below. In the LeNet-5 Convolution Neural Network of Yann Le Cunn, successive convolutions reduce the image size from 28 x 28=784 to 120 flattened values.

Here is an interesting Deep Learning problem. Convolutions help in picking out important features of images and help in image classification/ detection. What would be its equivalent if we wanted to identify the Carnatic ragam of a song? A Carnatic ragam is roughly similar to Western scales (major, natural, melodic, blues) with all its modes Lydian, Aeolion, Phyrgian etc. Except in the case of the ragams, it is more nuanced, complex and involved. Personally, I can rarely identify a ragam on which a carnatic song is based (I am tone deaf when it comes to identifying ragams). I have come to understand that each Carnatic ragam has its own character, which is made up of several melodic phrases which are unique to that flavor of a ragam. What operation like convolution would be needed so that we can pick out these unique phrases in a Carnatic ragam? Of course, we would need to use it in Recurrent Neural Networks with LSTMs as a song is a time sequence of notes to identify sequences. Nevertheless, if there was some operation with which we can pick up the distinct, unique phrases from a song and then run it through a classifier, maybe we would be able to identify the ragam of the song.

Below I implement 3 simple CNN using the Dogs vs Cats Dataset from Kaggle. The first CNN uses regular Convolutions a Fully connected network to classify the images. The second approach uses Image Augmentation. For some reason, I did not get a better performance with Image Augumentation. Thirdly I use the pre-trained Inception v3 network.



1. Basic Convolutional Neural Network in Tensorflow & Keras

You can view the Colab notebook here – Cats_vs_dogs_1.ipynb

Here some important parts of the notebook

Create CNN Model

  • Use 3 Convolution + Max pooling layers with 32,64 and 128 filters respectively
  • Flatten the data
  • Have 2 Fully connected layers with 128, 512 neurons with relu activation
  • Use sigmoid for binary classification
In [0]:
model = tf.keras.models.Sequential([
    tf.keras.layers.Conv2D(32,(3,3),activation='relu',input_shape=(150,150,3)),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Conv2D(64,(3,3),activation='relu'),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Conv2D(128,(3,3),activation='relu'),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Flatten(),
    tf.keras.layers.Dense(128,activation='relu'),
    tf.keras.layers.Dense(512,activation='relu'),
    tf.keras.layers.Dense(1,activation='sigmoid')
])

Print model summary

In [13]:
model.summary()
Model: "sequential"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
conv2d (Conv2D)              (None, 148, 148, 32)      896
_________________________________________________________________
max_pooling2d (MaxPooling2D) (None, 74, 74, 32)        0
_________________________________________________________________
conv2d_1 (Conv2D)            (None, 72, 72, 64)        18496
_________________________________________________________________
max_pooling2d_1 (MaxPooling2 (None, 36, 36, 64)        0
_________________________________________________________________
conv2d_2 (Conv2D)            (None, 34, 34, 128)       73856
_________________________________________________________________
max_pooling2d_2 (MaxPooling2 (None, 17, 17, 128)       0
_________________________________________________________________
flatten (Flatten)            (None, 36992)             0
_________________________________________________________________
dense (Dense)                (None, 128)               4735104
_________________________________________________________________
dense_1 (Dense)              (None, 512)               66048
_________________________________________________________________
dense_2 (Dense)              (None, 1)                 513
=================================================================
Total params: 4,894,913
Trainable params: 4,894,913
Non-trainable params: 0
_________________________________________________________________

Use the Adam Optimizer with binary cross entropy

model.compile(optimizer='adam',
             loss='binary_crossentropy',
             metrics=['accuracy'])

Perform Gradient Descent

  • Do Gradient Descent for 15 epochs
history=model.fit(train_generator,
                 validation_data=validation_generator,
                 steps_per_epoch=100,
                 epochs=15,
                 validation_steps=50,
                 verbose=2)
Epoch 1/15
100/100 - 13s - loss: 0.6821 - accuracy: 0.5425 - val_loss: 0.6484 - val_accuracy: 0.6131
Epoch 2/15
100/100 - 13s - loss: 0.6227 - accuracy: 0.6456 - val_loss: 0.6161 - val_accuracy: 0.6394
Epoch 3/15
100/100 - 13s - loss: 0.5975 - accuracy: 0.6719 - val_loss: 0.5558 - val_accuracy: 0.7206
Epoch 4/15
100/100 - 13s - loss: 0.5480 - accuracy: 0.7241 - val_loss: 0.5431 - val_accuracy: 0.7138
Epoch 5/15
100/100 - 13s - loss: 0.5182 - accuracy: 0.7447 - val_loss: 0.4839 - val_accuracy: 0.7606
Epoch 6/15
100/100 - 13s - loss: 0.4773 - accuracy: 0.7781 - val_loss: 0.5029 - val_accuracy: 0.7506
Epoch 7/15
100/100 - 13s - loss: 0.4466 - accuracy: 0.7972 - val_loss: 0.4573 - val_accuracy: 0.7912
Epoch 8/15
100/100 - 13s - loss: 0.4395 - accuracy: 0.7997 - val_loss: 0.4252 - val_accuracy: 0.8119
Epoch 9/15
100/100 - 13s - loss: 0.4314 - accuracy: 0.8019 - val_loss: 0.4931 - val_accuracy: 0.7481
Epoch 10/15
100/100 - 13s - loss: 0.4309 - accuracy: 0.7969 - val_loss: 0.4203 - val_accuracy: 0.8109
Epoch 11/15
100/100 - 13s - loss: 0.4329 - accuracy: 0.7916 - val_loss: 0.4189 - val_accuracy: 0.8069
Epoch 12/15
100/100 - 13s - loss: 0.4248 - accuracy: 0.8050 - val_loss: 0.4476 - val_accuracy: 0.7925
Epoch 13/15
100/100 - 13s - loss: 0.3868 - accuracy: 0.8306 - val_loss: 0.3900 - val_accuracy: 0.8236
Epoch 14/15
100/100 - 13s - loss: 0.3710 - accuracy: 0.8328 - val_loss: 0.4520 - val_accuracy: 0.7900
Epoch 15/15
100/100 - 13s - loss: 0.3654 - accuracy: 0.8353 - val_loss: 0.3999 - val_accuracy: 0.8100













Plot results

    • Plot training and validation accuracy



  • Plot training and validation loss













#-----------------------------------------------------------
# Retrieve a list of list results on training and test data
# sets for each training epoch
#-----------------------------------------------------------
acc      = history.history[     'accuracy' ]
val_acc  = history.history[ 'val_accuracy' ]
loss     = history.history[    'loss' ]
val_loss = history.history['val_loss' ]

epochs   = range(len(acc)) # Get number of epochs

#------------------------------------------------
# Plot training and validation accuracy per epoch
#------------------------------------------------
plt.plot  ( epochs,     acc,label="training accuracy" )
plt.plot  ( epochs, val_acc, label='validation acuracy' )
plt.title ('Training and validation accuracy')
plt.legend()

plt.figure()

#------------------------------------------------
# Plot training and validation loss per epoch
#------------------------------------------------
plt.plot  ( epochs,     loss , label="training loss")
plt.plot  ( epochs, val_loss,label="validation loss" )

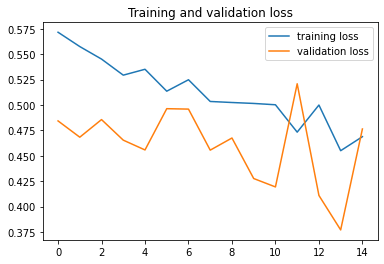

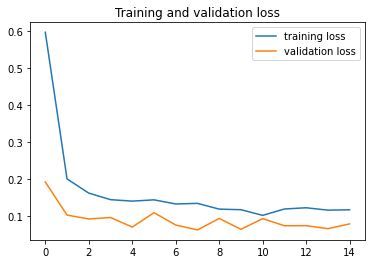

plt.title ('Training and validation loss'   )
plt.legend()





2. CNN with Image Augmentation

You can check the Cats_vs_Dogs_2.ipynb

Including the important parts of this implementation below

Use Image Augumentation

Use Image Augumentation to improve performance

  • Use the same model parameters as before
  • Perform the following image augmentation
    • width, height shift
    • shear and zoom

    Note: Adding rotation made the performance worse

import tensorflow as tf
from tensorflow import keras
from tensorflow.keras.optimizers import RMSprop
from tensorflow.keras.preprocessing.image import ImageDataGenerator
model = tf.keras.models.Sequential([
    tf.keras.layers.Conv2D(32,(3,3),activation='relu',input_shape=(150,150,3)),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Conv2D(64,(3,3),activation='relu'),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Conv2D(128,(3,3),activation='relu'),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Flatten(),
    tf.keras.layers.Dense(128,activation='relu'),
    tf.keras.layers.Dense(512,activation='relu'),
    tf.keras.layers.Dense(1,activation='sigmoid')
])


train_datagen = ImageDataGenerator(
      rescale=1./255,
      #rotation_range=90,
      width_shift_range=0.2,
      height_shift_range=0.2,
      shear_range=0.2,
      zoom_range=0.2)
      #horizontal_flip=True,
      #fill_mode='nearest')

validation_datagen = ImageDataGenerator(rescale=1./255)
#
train_generator = train_datagen.flow_from_directory(train_dir,
                                                    batch_size=32,
                                                    class_mode='binary',
                                                    target_size=(150, 150))
# --------------------
# Flow validation images in batches of 20 using test_datagen generator
# --------------------
validation_generator =  validation_datagen.flow_from_directory(validation_dir,
                                                         batch_size=32,
                                                         class_mode  = 'binary',
                                                         target_size = (150, 150))

# Use Adam Optmizer
model.compile(optimizer='adam',
             loss='binary_crossentropy',
             metrics=['accuracy'])
Found 20000 images belonging to 2 classes.
Found 5000 images belonging to 2 classes.

Perform Gradient Descent

history=model.fit(train_generator,
                 validation_data=validation_generator,
                 steps_per_epoch=100,
                 epochs=15,
                 validation_steps=50,
                 verbose=2)
Epoch 1/15
100/100 - 27s - loss: 0.5716 - accuracy: 0.6922 - val_loss: 0.4843 - val_accuracy: 0.7744
Epoch 2/15
100/100 - 27s - loss: 0.5575 - accuracy: 0.7084 - val_loss: 0.4683 - val_accuracy: 0.7750
Epoch 3/15
100/100 - 26s - loss: 0.5452 - accuracy: 0.7228 - val_loss: 0.4856 - val_accuracy: 0.7665
Epoch 4/15
100/100 - 27s - loss: 0.5294 - accuracy: 0.7347 - val_loss: 0.4654 - val_accuracy: 0.7812
Epoch 5/15
100/100 - 27s - loss: 0.5352 - accuracy: 0.7350 - val_loss: 0.4557 - val_accuracy: 0.7981
Epoch 6/15
100/100 - 26s - loss: 0.5136 - accuracy: 0.7453 - val_loss: 0.4964 - val_accuracy: 0.7621
Epoch 7/15
100/100 - 27s - loss: 0.5249 - accuracy: 0.7334 - val_loss: 0.4959 - val_accuracy: 0.7556
Epoch 8/15
100/100 - 26s - loss: 0.5035 - accuracy: 0.7497 - val_loss: 0.4555 - val_accuracy: 0.7969
Epoch 9/15
100/100 - 26s - loss: 0.5024 - accuracy: 0.7487 - val_loss: 0.4675 - val_accuracy: 0.7728
Epoch 10/15
100/100 - 27s - loss: 0.5015 - accuracy: 0.7500 - val_loss: 0.4276 - val_accuracy: 0.8075
Epoch 11/15
100/100 - 26s - loss: 0.5002 - accuracy: 0.7581 - val_loss: 0.4193 - val_accuracy: 0.8131
Epoch 12/15
100/100 - 27s - loss: 0.4733 - accuracy: 0.7706 - val_loss: 0.5209 - val_accuracy: 0.7398
Epoch 13/15
100/100 - 27s - loss: 0.4999 - accuracy: 0.7538 - val_loss: 0.4109 - val_accuracy: 0.8075
Epoch 14/15
100/100 - 27s - loss: 0.4550 - accuracy: 0.7859 - val_loss: 0.3770 - val_accuracy: 0.8288
Epoch 15/15
100/100 - 26s - loss: 0.4688 - accuracy: 0.7688 - val_loss: 0.4764 - val_accuracy: 0.7786

Plot results

  • Plot training and validation accuracy
  • Plot training and validation loss
In [15]:
import matplotlib.pyplot as plt
#-----------------------------------------------------------
# Retrieve a list of list results on training and test data
# sets for each training epoch
#-----------------------------------------------------------
acc      = history.history[     'accuracy' ]
val_acc  = history.history[ 'val_accuracy' ]
loss     = history.history[    'loss' ]
val_loss = history.history['val_loss' ]

epochs   = range(len(acc)) # Get number of epochs

#------------------------------------------------
# Plot training and validation accuracy per epoch
#------------------------------------------------
plt.plot  ( epochs,     acc,label="training accuracy" )
plt.plot  ( epochs, val_acc, label='validation acuracy' )
plt.title ('Training and validation accuracy')
plt.legend()

plt.figure()

#------------------------------------------------
# Plot training and validation loss per epoch
#------------------------------------------------
plt.plot  ( epochs,     loss , label="training loss")
plt.plot  ( epochs, val_loss,label="validation loss" )
plt.title ('Training and validation loss'   )
plt.legend()



Implementation using Inception Network V3

The implementation is in the Colab notebook Cats_vs_Dog_3.ipynb

This is implemented as below

Use Inception V3

import os

from tensorflow.keras import layers
from tensorflow.keras import Model


from tensorflow.keras.applications.inception_v3 import InceptionV3
pre_trained_model = InceptionV3(input_shape = (150, 150, 3),
                                include_top = False,
                                weights = 'imagenet')


for layer in pre_trained_model.layers:
  layer.trainable = False

# pre_trained_model.summary()

last_layer = pre_trained_model.get_layer('mixed7')
print('last layer output shape: ', last_layer.output_shape)
last_output = last_layer.output
Downloading data from https://storage.googleapis.com/tensorflow/keras-applications/inception_v3/inception_v3_weights_tf_dim_ordering_tf_kernels_notop.h5
87916544/87910968 [==============================] - 1s 0us/step
last layer output shape:  (None, 7, 7, 768)

Use Layer 7 of Inception Network

  • Use Image Augumentation
  • Use Adam Optimizer
In [0]:
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras.optimizers import RMSprop
from tensorflow.keras.preprocessing.image import ImageDataGenerator
# Flatten the output layer to 1 dimension
x = layers.Flatten()(last_output)
# Add a fully connected layer with 1,024 hidden units and ReLU activation
x = layers.Dense(1024, activation='relu')(x)
# Add a dropout rate of 0.2
x = layers.Dropout(0.2)(x)
# Add a final sigmoid layer for classification
x = layers.Dense  (1, activation='sigmoid')(x)

model = Model( pre_trained_model.input, x)
#train_datagen = ImageDataGenerator( rescale = 1.0/255. )
#validation_datagen = ImageDataGenerator( rescale = 1.0/255. )

train_datagen = ImageDataGenerator(
      rescale=1./255,
      #rotation_range=90,
      width_shift_range=0.2,
      height_shift_range=0.2,
      shear_range=0.2,
      zoom_range=0.2)
      #horizontal_flip=True,
      #fill_mode='nearest')

validation_datagen = ImageDataGenerator(rescale=1./255)
#
train_generator = train_datagen.flow_from_directory(train_dir,
                                                    batch_size=32,
                                                    class_mode='binary',
                                                    target_size=(150, 150))
# --------------------
# Flow validation images in batches of 20 using test_datagen generator
# --------------------
validation_generator =  validation_datagen.flow_from_directory(validation_dir,
                                                         batch_size=32,
                                                         class_mode  = 'binary',
                                                         target_size = (150, 150))


model.compile(optimizer='adam',
             loss='binary_crossentropy',
             metrics=['accuracy'])
Found 20000 images belonging to 2 classes.
Found 5000 images belonging to 2 classes.

Fit model

history=model.fit(train_generator,
                 validation_data=validation_generator,
                 steps_per_epoch=100,
                 epochs=15,
                 validation_steps=50,
                 verbose=2)
Epoch 1/15
100/100 - 31s - loss: 0.5961 - accuracy: 0.8909 - val_loss: 0.1919 - val_accuracy: 0.9456
Epoch 2/15
100/100 - 30s - loss: 0.2002 - accuracy: 0.9259 - val_loss: 0.1025 - val_accuracy: 0.9550
Epoch 3/15
100/100 - 30s - loss: 0.1618 - accuracy: 0.9366 - val_loss: 0.0920 - val_accuracy: 0.9581
Epoch 4/15
100/100 - 29s - loss: 0.1442 - accuracy: 0.9381 - val_loss: 0.0960 - val_accuracy: 0.9600
Epoch 5/15
100/100 - 30s - loss: 0.1402 - accuracy: 0.9381 - val_loss: 0.0703 - val_accuracy: 0.9794
Epoch 6/15
100/100 - 30s - loss: 0.1437 - accuracy: 0.9413 - val_loss: 0.1090 - val_accuracy: 0.9531
Epoch 7/15
100/100 - 30s - loss: 0.1325 - accuracy: 0.9428 - val_loss: 0.0756 - val_accuracy: 0.9670
Epoch 8/15
100/100 - 29s - loss: 0.1341 - accuracy: 0.9491 - val_loss: 0.0625 - val_accuracy: 0.9737
Epoch 9/15
100/100 - 29s - loss: 0.1186 - accuracy: 0.9513 - val_loss: 0.0934 - val_accuracy: 0.9581
Epoch 10/15
100/100 - 29s - loss: 0.1171 - accuracy: 0.9513 - val_loss: 0.0642 - val_accuracy: 0.9727
Epoch 11/15
100/100 - 29s - loss: 0.1018 - accuracy: 0.9591 - val_loss: 0.0930 - val_accuracy: 0.9606
Epoch 12/15
100/100 - 29s - loss: 0.1190 - accuracy: 0.9541 - val_loss: 0.0737 - val_accuracy: 0.9719
Epoch 13/15
100/100 - 29s - loss: 0.1223 - accuracy: 0.9494 - val_loss: 0.0740 - val_accuracy: 0.9695
Epoch 14/15
100/100 - 29s - loss: 0.1158 - accuracy: 0.9516 - val_loss: 0.0659 - val_accuracy: 0.9744
Epoch 15/15
100/100 - 29s - loss: 0.1168 - accuracy: 0.9591 - val_loss: 0.0788 - val_accuracy: 0.9669

Plot results

  • Plot training and validation accuracy
  • Plot training and validation loss
In [14]:
import matplotlib.pyplot as plt
#-----------------------------------------------------------
# Retrieve a list of list results on training and test data
# sets for each training epoch
#-----------------------------------------------------------
acc      = history.history[     'accuracy' ]
val_acc  = history.history[ 'val_accuracy' ]
loss     = history.history[    'loss' ]
val_loss = history.history['val_loss' ]

epochs   = range(len(acc)) # Get number of epochs

#------------------------------------------------
# Plot training and validation accuracy per epoch
#------------------------------------------------
plt.plot  ( epochs,     acc,label="training accuracy" )
plt.plot  ( epochs, val_acc, label='validation acuracy' )
plt.title ('Training and validation accuracy')
plt.legend()

plt.figure()

#------------------------------------------------
# Plot training and validation loss per epoch
#------------------------------------------------
plt.plot  ( epochs,     loss , label="training loss")
plt.plot  ( epochs, val_loss,label="validation loss" )
plt.title ('Training and validation loss'   )
plt.legend()



I intend to do some interesting stuff with Convolutional Neural Networks.

Watch this space!

See also
1. Architecting a cloud based IP Multimedia System (IMS)
2. Exploring Quantum Gate operations with QCSimulator
3. Big Data 6: The T20 Dance of Apache NiFi and yorkpy
4. The Many Faces of Latency
5. The Clash of the Titans in Test and ODI cricket

To see all posts click Index of posts

Big Data 6: The T20 Dance of Apache NiFi and yorkpy

“I don’t count my sit-ups. I only start counting once it starts hurting. ”

Muhammad Ali

“Hard work beats talent when talent doesn’t work hard.”

Tim Notke

In my previous post Big Data 5: kNiFI-ing through cricket data with Apache NiFi and yorkpy, I created a Big Data Pipeline that takes raw data in YAML format from a Cricsheet to processing and ranking IPL T20 players. In that post I had mentioned that we could create a similar pipeline to create a real time dashboard of IPL Analytics. I could have have done this but I needed to know how to create a Web UI. After digging and poking around, I have been able to create a simple Web UI running off Apache Web server. This UI uses basic JQuery and CSS to display a real time IPL T20 dashboard. As in my previous post, this is an end-2-end Big Data pipeline which can handle large data sets at scheduled times, process them and generate real time dashboards.

We could imagine an inter-galactic T20 championship league where T20 data comes in every hour or sooner and we need to perform analytics to see if us earthlings are any better than people with pointy heads  or little green men. The NiFi pipeline could be used as-is, however the yorkpy package would have to be rewritten in Pyspark. That is in another eon, though.

My package yorkpy has around ~45+ functions which fall in the following main categories

1. Pitching yorkpy . short of good length to IPL – Part 1 :Class 1: This includes functions that convert the yaml data of IPL matches into Pandas dataframe which are then saved as CSV. This part can perform analysis of individual IPL matches.
2. Pitching yorkpy.on the middle and outside off-stump to IPL – Part 2 :Class 2:This part includes functions to create a large data frame for head-to-head confrontation between any 2IPL teams says CSK-MI, DD-KKR etc, which can be saved as CSV. Analysis is then performed on these team-2-team confrontations.
3. Pitching yorkpy.swinging away from the leg stump to IPL – Part 3 Class 3:The 3rd part includes the performance of any IPL team against all other IPL teams. The data can also be saved as CSV.
4. Pitching yorkpy … in the block hole – Part 4 :Class 4: This part performs analysis of individual IPL batsmen and bowlers



Watch the live demo of the end-2-end NiFi pipeline at ‘The T20 Dance

You can download the NiFi template and associated code from Github at  T20 Dance

The Apache NiFi Pipeline is shown below

1. T20 Dance – Overall NiFi Pipeline



There are 5 process groups

2. ListAndConvertYaml2DataFrames

This post starts with having the YAML files downloaded and unpacked from Cricsheet.  The individual YAML files are converted into Pandas dataframes and saved as CSV. A concurrency of 12 is used to increase performance and process YAML files in parallel. The processor MergeContent creates a merged content to signal the completion of conversion and triggers the other Process Groups through a funnel.



3. Analyse individual IPL T20 matches

This Process Group ‘Analyse T20 matches’  used the yorkpy’s Class 1 functions which can perform analysis of individual IPL T20 matches. The matchWorm() and matchScorecard() functions are used, through any other function could have been used. The Process Group is shown below



4. Analyse performance of an IPL team in all matches against another IPL team

This Process Group ‘Analyse performance of IPL team in all matched against another IPL team‘ does analysis in all matches between any 2 IPL teams (Class 2) as shown below

5. Analyse performance of IPL team in all matches against all other IPL teams

This uses Class 3 functions. Individual data sets for each IPL team versus all other IPL teams is created before Class 3 yorkpy functions are invoked. This is included below

6. Analyse performances of IPL batsmen and bowlers

This Process Group uses Class 4 yorkpy functions. The match CSV files are processed to get batting and bowling details before calling the individual functions as shown below



7. IPL T20 Dashboard

The IPL T20 Dashboard is shown



Conclusion

This NiFI pipeline was done for IPL T20 however, it could be done for any T20 format like Intl T20, BBL, Natwest etc which are posted in Cricsheet. Also, only a subset of the yorkpy functions were used. There is a much wider variety of functions available.

Hope the T20 dance got your foot a-tapping!



You may also like
1. A primer on Qubits, Quantum gates and Quantum Operations
2.Computer Vision: Ramblings on derivatives, histograms and contours
3.Deep Learning from first principles in Python, R and Octave – Part 6
4.A Bluemix recipe with MongoDB and Node.js
5.Practical Machine Learning with R and Python – Part 4
6.Simulating the domino effect in Android using Box2D and AndEngine

To see all posts click Index of posts

Big Data-5: kNiFi-ing through cricket data with yorkpy

“The temptation to form premature theories upon insufficient data is the bane of our profession.”

                              Sherlock Holmes in the Valley of fear by Arthur Conan Doyle

“If we have data, let’s look at data. If all we have are opinions, let’s go with mine.”

                              Jim Barksdale, former CEO Netscape

In this post I use  Apache NiFi Dataflow Pipeline along with my Python package yorkpy to crunch through cricket data from Cricsheet. The Data Pipelne  flows all the way from the source  to target analytics output. Apache NiFi was created to automate the flow of data between systems.  NiFi dataflows enable the automated and managed flow of information between systems. This post automates the flow of data from Cricsheet, from where the zip file it is downloaded, unpacked, processed, transformed and finally T20 players are ranked.

While this is a straight forward example of what can be done, this pattern can be applied to real Big Data systems. For example hypothetically, we could consider that we get several parallel streams of  cricket data or for that matter any sports related data. There could be parallel Data flow pipelines that get the data from the sources. This would then be  followed by data transformation modules and finally a module for generating analytics. At the other end a UI based on AngularJS or ReactJS could display the results in a cool and awesome way.

Incidentally, the NiFi pipeline that I discuss in this post, is a simplistic example, and does not use the Big Data stack like HDFS, Hive, Spark etc. Nevertheless, the pattern used, has all the modules for a Big Data pipeline namely ingestion, unpacking, transformation and finally analytics. This NiF pipeline demonstrates the flow using the regular file system of Mac and my python based package yorkpy. The concepts mentioned could be used in a real Big Data scenario which has much fatter pipes of data coming. If  this was the case the NiFi pipeline would utilize  HDFS/Hive for storing the ingested data and Pyspark/Scala for the transformation and analytics and other related technologies.

A pictorial representation is given below

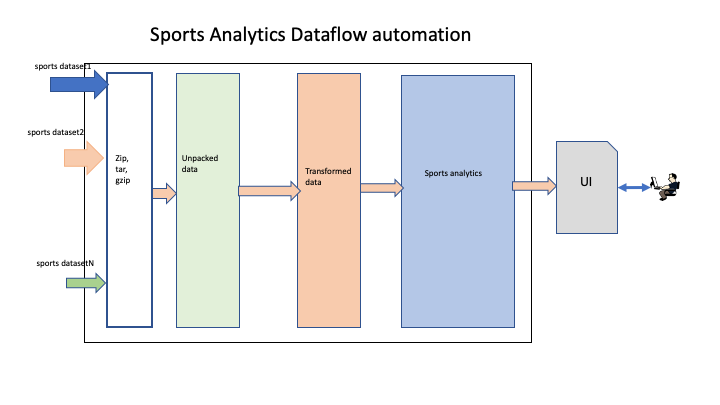

In the diagram above each of the vertical boxes could be any technology from the ever proliferating Big Data stack namely HDFS, Hive, Spark, Sqoop, Kafka, Impala and so on.  Such a dataflow automation could be created when any big sporting event happens, as long as the data generated large, and there is a need for dynamic and automated reporting. The UI could be based on AngularJS/ReactJS and could display analytical tables and charts.

This post demonstrates one such scenario in which IPL T20 data is downloaded from Cricsheet site, unpacked and stored in a specific directory. This dataflow automation is based on my yorkpy package. To know more about the yorkpy package  see Pitching yorkpy … short of good length to IPL – Part 1  and the associated parts. The zip file, from Cricsheet, contains individual IPL T20 matches in YAML format. The convertYaml2DataframeT20() function is used to convert the YAML files into Pandas dataframes before storing them as CSV files. After this done, the function rankIPLT20batting() function is used to perform the overall ranking of the T20 players. My yorkpy Python package has about ~ 50+ functions that perform various analytics on any T20 data for e.g it has the following classes of functions

  • analyze T20 matches
  • analyze performance of a T20 team in all matches against another T20 team
  • analyze performance of a T20 team against all other T20 teams
  • analyze performance of T20 batsman and bowlers
  • rank T20 batsmen and bowlers

The functions of yorkpy generate tables or charts. While this post demonstrates one scenario, we could use any of the yorkpy T20 functions, generate the output and display on a widget in the UI display, created with cool technologies like AngularJS/ReactJS,  possibly in near real time as data keeps coming in.,

To use yorkpy with NiFI the following packages have to be installed in your environment

-pip install yorkpy
-pip install pyyaml
-pip install pandas
-yum install python-devel (equivalent in Windows)
-pip install matplotlib
-pip install seaborn
-pip install sklearn
-pip install datetime

I have created a video of the NiFi Pipeline with the real dataflow fro source to the ranked IPL T20 batsmen. Take a look at RankingT20PlayersWithNiFiYorkpy

You can clone/fork the NiFi template from rankT20withNiFiYorkpy

The NiFi Data Flow Automation is shown below

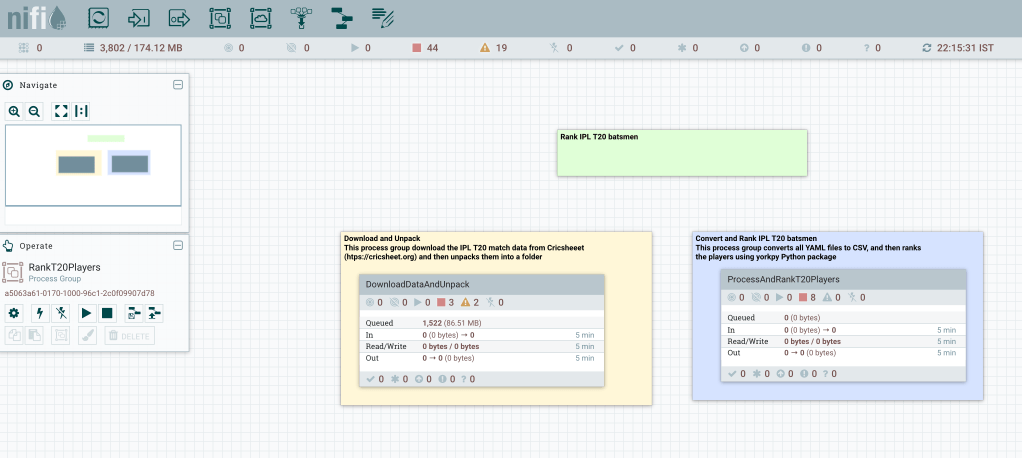

1. Overall flow

The overall NiFi flow contains 2 Process Groups a) DownloadAnd Unpack. b) Convert and Rank IPL batsmen. While it appears that the Process Groups are disconnected, they are not. The first process group downloads the T20 zip file, unpacks the. zip file and saves the YAML files in a specific folder. The second process group monitors this folder and starts processing as soon the YAML files are available. It processes the YAML converting it into dataframes before storing it as CSV file. The next  processor then does the actual ranking of the batsmen before writing the output into IPLrank.txt

1.1 DownloadAndUnpack Process Group

This process group is shown below

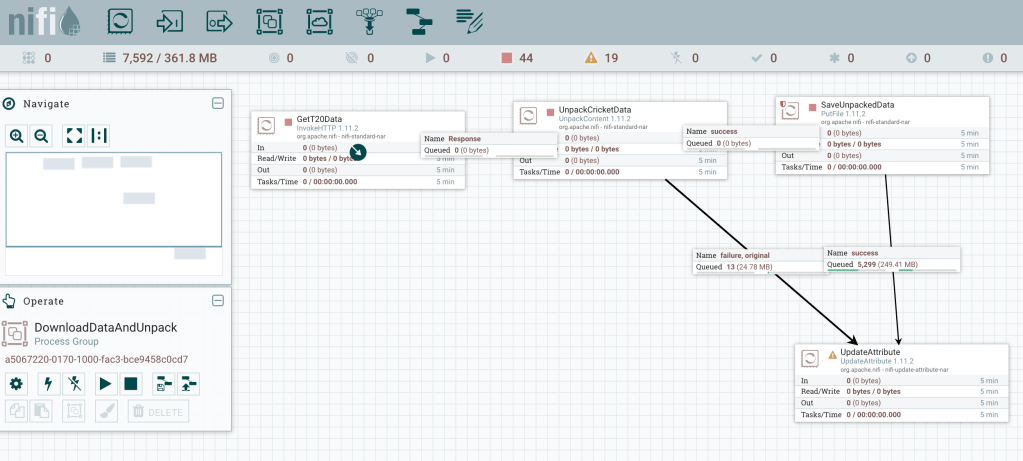

1.1.1 GetT20Data

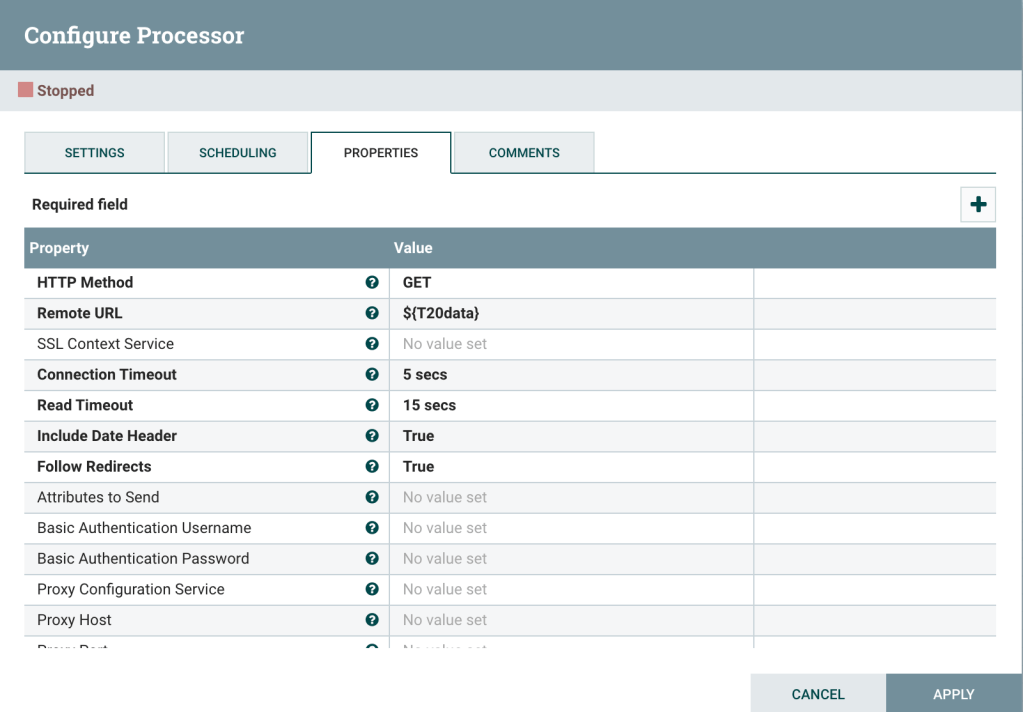

The GetT20Data Processor downloads the zip file given the URL

The ${T20data} variable points to the specific T20 format that needs to be downloaded. I have set this to https://cricsheet.org/downloads/ipl.zip. This could be set any other data set. In fact we could have parallel data flows for different T20/ Sports data sets and generate

1.1.2 SaveUnpackedData

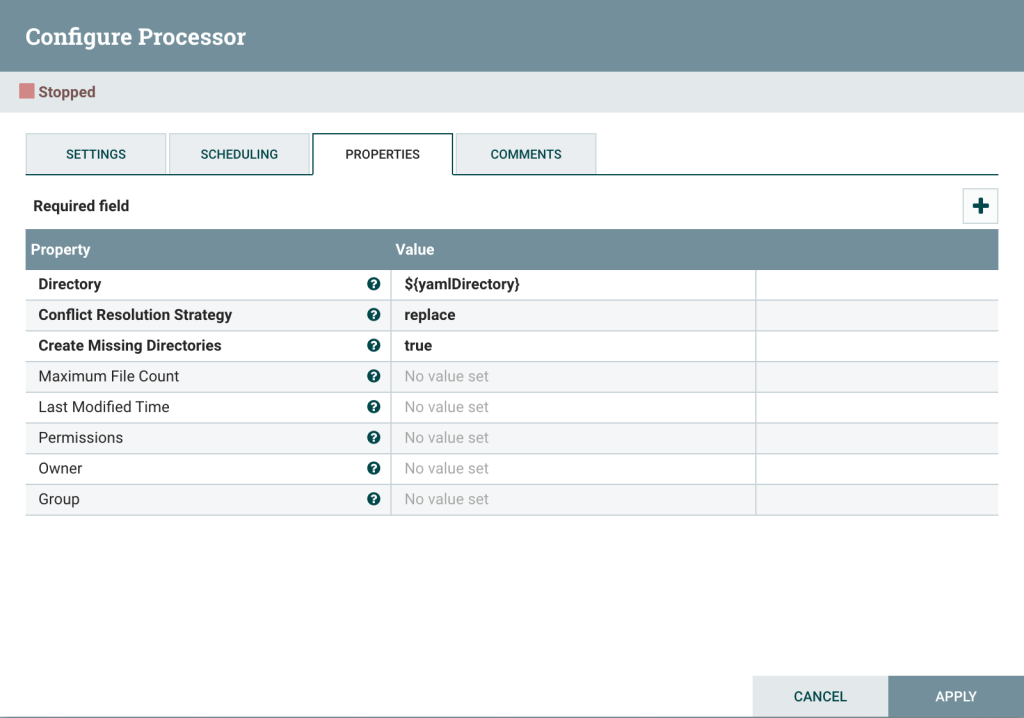

This processor stores the YAML files in a predetermined folder, so that the data can be picked up  by the 2nd Process Group for processing

1.2 ProcessAndRankT20Players Process Group

This is the second process group which converts the YAML files to pandas dataframes before storing them as. CSV files. The RankIPLPlayers will then read all the CSV files, stack them and then proceed to rank the IPL players. The Process Group is shown below

1.2.1 ListFile and FetchFile Processors

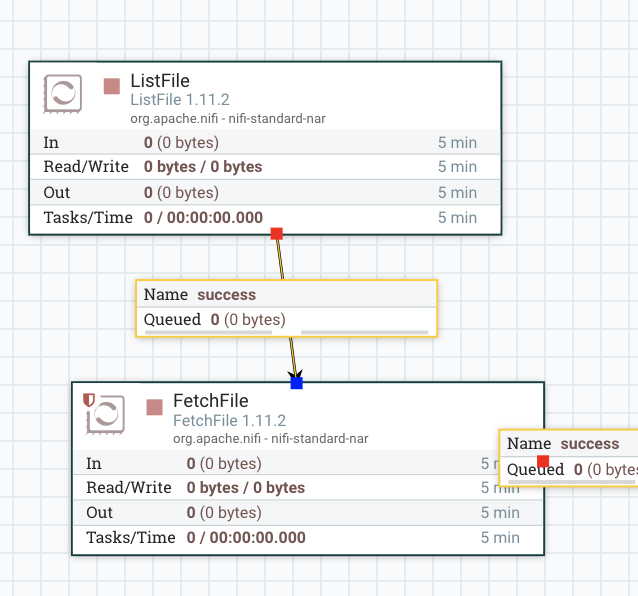

The left 2 Processors ListFile and FetchFile get all the YAML files from the folder and pass it to the next processor

1.2.2 convertYaml2DataFrame Processor

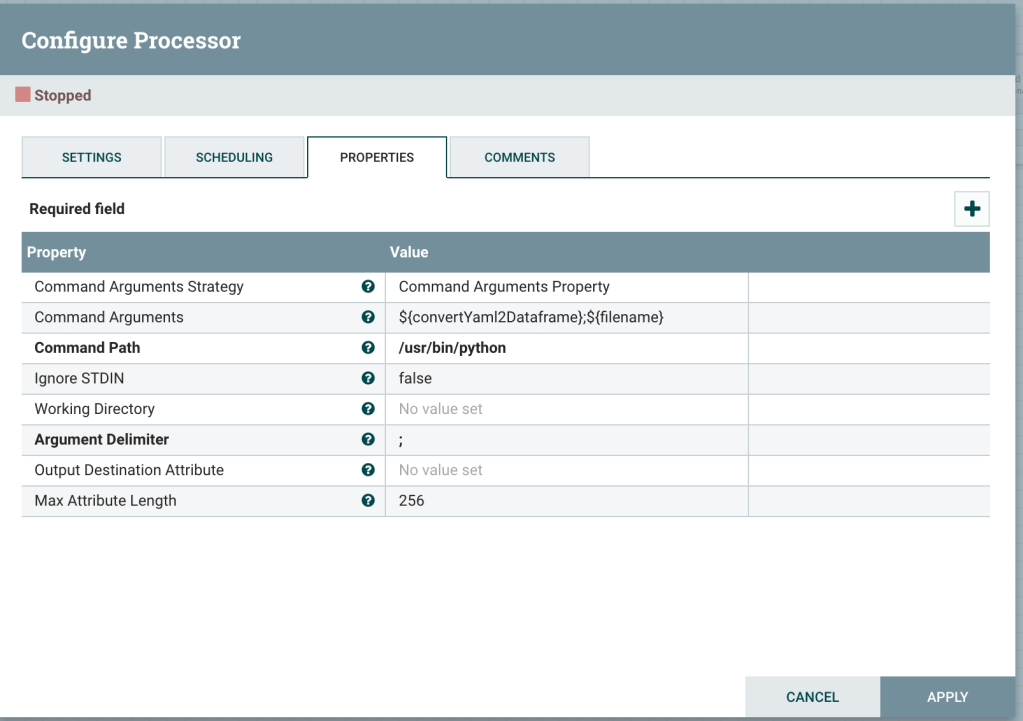

The convertYaml2DataFrame Processor uses the ExecuteStreamCommand which call a python script. The Python script invoked the yorkpy function convertYaml2Dataframe() as shown below

The ${convertYaml2Dataframe} variable points to the python file below which invoked the yorkpy function yka.convertYaml2PandasDataframeT20()

import yorkpy.analytics as yka
import argparse
parser = argparse.ArgumentParser(description='convert')
parser.add_argument("yamlFile",help="YAML File")
args=parser.parse_args()
yamlFile=args.yamlFile
yka.convertYaml2PandasDataframeT20(yamlFile,"/Users/tvganesh/backup/software/nifi/ipl","/Users/tvganesh/backup/software/nifi/ipldata")

This function takes as input $filename which comes from FetchFile processor which is a FlowFile. So I have added a concurrency of 8  to handle upto 8 Flowfiles at a time. The thumb rule as I read on the internet is 2x, 4x the number of cores of your system. Since I have an 8 core Mac, I could possibly have gone ~ 30 concurrent threads. Also the number of concurrent threads is less when the flow is run in a Oracle Box VirtualMachine. Box since a vCore < actual Core

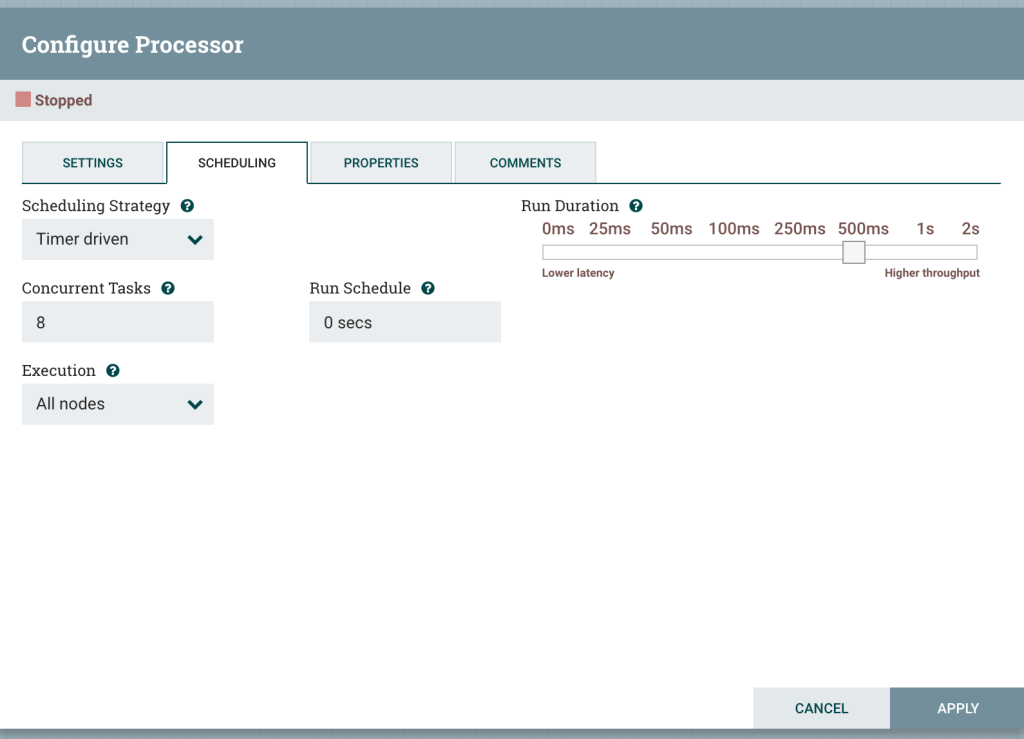

The scheduling tab is as below

Here are the 8 concurrent Python threads on Mac at bottom right… (pretty cool!)

I have not fully tested how latency vs throughput slider changes, affects the performance.

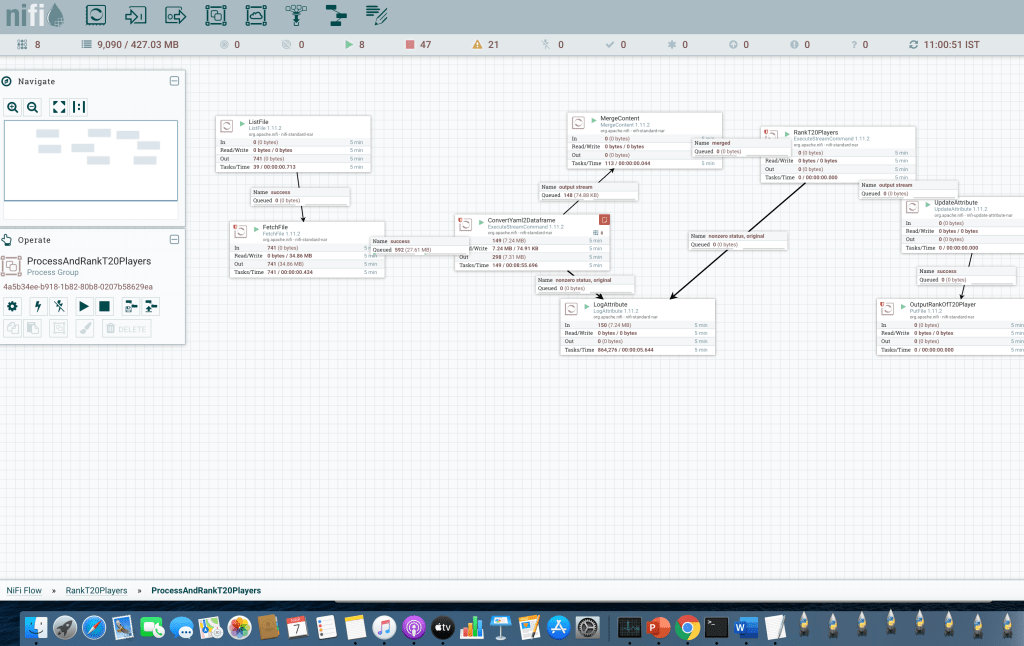

1.2.3 MergeContent Processor

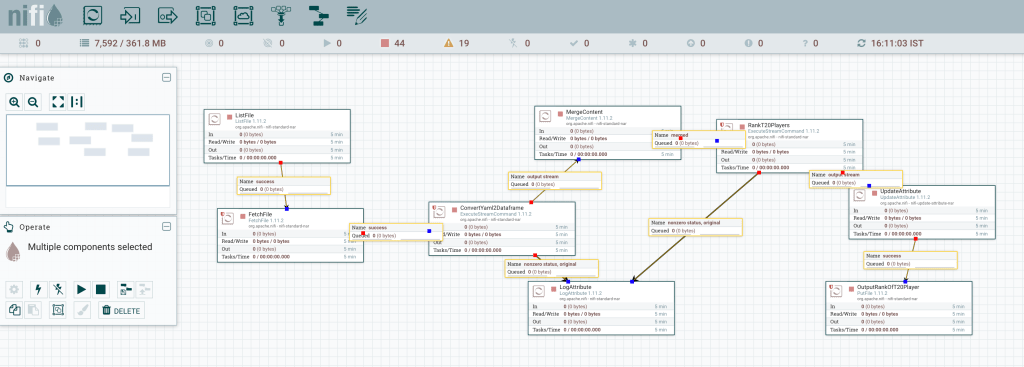

This processor’s only job is to trigger the rankIPLPlayers when all the FlowFiles have merged into 1 file.

1.2.4 RankT20Players

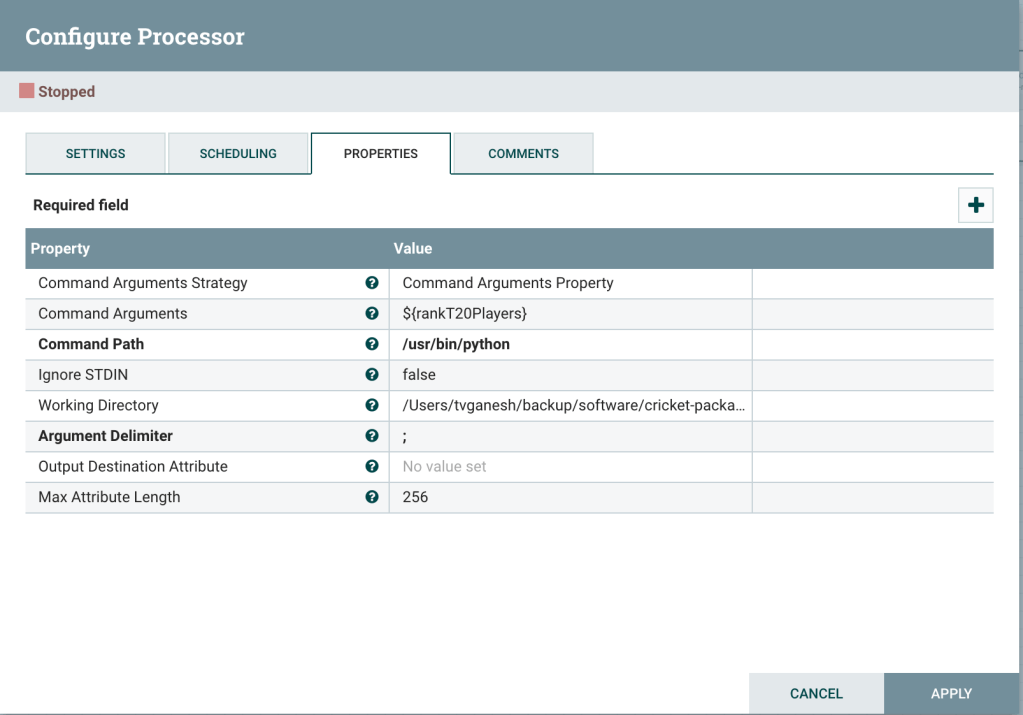

This processor is an ExecuteStreamCommand Processor that executes a Python script which invokes a yorkpy function rankIPLT20Batting()

import yorkpy.analytics as yka
rank=yka.rankIPLT20Batting("/Users/tvganesh/backup/software/nifi/ipldata")
print(rank.head(15))

1.2.5 OutputRankofT20Player Processor

This processor writes the generated rank to an output file.

1.3 Final Ranking of IPL T20 players

The Nodejs based web server picks up this file and displays on the web page the final ranks (the code is based on a good youtube for reading from file)

2. Final thoughts

As I have mentioned above though the above NiFi Cricket Dataflow automation does not use the Hadoop ecosystem, the pattern used is valid and can be used with some customization in Big Data flows as parallel stream. I could have also done this on Oracle VirtualBox but I thought since the code is based on Python and Pandas there is no real advantage of running on the VirtualBox.  GIve the NiFi flow a shot. Have fun!!!

Also see
1.My book ‘Deep Learning from first Practical Machine Learning with R and Python – Part 5
Edition’ now on Amazon

2. Introducing QCSimulator: A 5-qubit quantum computing simulator in R
3.De-blurring revisited with Wiener filter using OpenCV
4. Practical Machine Learning with R and Python – Part 5
5. Natural language processing: What would Shakespeare say?
6.Getting started with Tensorflow, Keras in Python and R
7.Revisiting World Bank data analysis with WDI and gVisMotionChart

To see all posts click Index of posts

Ranking T20 players in Intl T20, IPL, BBL and Natwest using yorkpy

There is a voice that doesn’t use words, listen.
When someone beats a rug, the blows are not against the rug, but against the dust in it.
I lost my hat while gazing at the moon, and then I lost my mind.
Rumi

Introduction

After a long hiatus, I am back to my big, bad, blogging ways! In this post I rank T20 players from several different leagues namely

  • International T20
  • Indian Premier League (IPL) T20
  • Big Bash League (BBL) T20
  • Natwest Blast (NTB) T20

I have added 8 new functions to my Python Package yorkpy, which will perform the ranking for the above 4 T20 League formats. To know more about my Python package see Pitching yorkpy . short of good length to IPL – Part 1, and the related posts on yorkpy. The code can be easily extended to other leagues which have a the same ‘yaml’ format for the matches. I also fixed some issues which started to crop up, possibly because a few things have changed in the new data.

The new functions are

  1. rankIntlT20Batting()
  2. rankIntlT20Batting()
  3. rankIPLT20Batting()
  4. rankIPLT20Batting
  5. rankBBLT20Batting()
  6. rankBBLT20Batting()
  7. rankNTBT20Batting()
  8. rankNTBT20Batting()

The yorkpy package uses data from Cricsheet

You can clone/fork the code for yorkpy at yorkpy

You can download the PDF of the post from Rank T20

yorkpy can be installed with ‘pip install yorkpy

1. International T20

The steps to do before ranking for International T20 matches are 1. Download International T20 zip file from Cricsheet Intl T20 2. Unzip the file. This will create a folder with yaml files

import yorkpy.analytics as yka
#yka.convertAllYaml2PandasDataframesT20("../t20s","../data")

This above step will convert the yaml files into CSV files. Now do the ranking as below

1a. Ranking of International T20 batsmen

import yorkpy.analytics as yka
intlT20RankBatting=yka.rankIntlT20Batting("C:\\software\\cricket-package\\yorkpyPkg\\data\\data")
intlT20RankBatting.head(15)
##                      matches  runs_mean     SR_mean
## batsman
## V Kohli                   58  38.672414  125.212402
## KS Williamson             42  32.595238  122.884631
## Mohammad Shahzad          52  31.942308  118.212288
## CH Gayle                  50  31.140000  111.869984
## BB McCullum               69  29.492754  117.011666
## MM Lanning                48  28.812500   98.582663
## SJ Taylor                 44  28.659091   98.684856
## MJ Guptill                68  28.573529  117.673702
## DA Warner                 71  28.507042  121.142746
## DPMD Jayawardene          53  27.584906  107.787092
## KC Sangakkara             54  26.407407  106.039838
## JP Duminy                 68  26.294118  114.606717
## TM Dilshan                78  26.243590   97.910384
## RG Sharma                 65  25.907692  113.056548
## H Masakadza               53  25.566038   99.453880

1b. Ranking of International T20 bowlers

import yorkpy.analytics as yka
intlT20RankBowling=yka.rankIntlT20Bowling("C:\\software\\cricket-package\\yorkpyPkg\\data\\data")
intlT20RankBowling.head(15)
##                       matches  wicket_mean  econrate_mean
## bowler
## Umar Gul                   58     1.603448       7.637931
## SL Malinga                 78     1.500000       7.409188
## Saeed Ajmal                63     1.492063       6.451058
## DW Steyn                   46     1.478261       7.014855
## A Shrubsole                45     1.422222       6.294444
## M Morkel                   41     1.292683       7.680894
## KMDN Kulasekara            57     1.280702       7.476608
## TG Southee                 51     1.274510       8.759804
## SCJ Broad                  53     1.264151            inf
## Shakib Al Hasan            58     1.241379       6.836207
## R Ashwin                   44     1.204545       7.162879
## Nida Dar                   44     1.204545       6.083333
## KH Brunt                   44     1.204545       5.982955
## KD Mills                   42     1.166667       8.289683
## SR Watson                  46     1.152174       8.246377

2. Indian Premier League (IPL) T20

The steps to do before ranking for IPL T20 matches are 1. Download IPL T20 zip file from Cricsheet IPL T20 2. Unzip the file. This will create a folder with yaml files

import yorkpy.analytics as yka
#yka.convertAllYaml2PandasDataframesT20("../ipl","../ipldata")

This above step will convert the yaml files into CSV files in the /ipldata folder. Now do the ranking as below

2a. Ranking of batsmen in IPL T20

import yorkpy.analytics as yka
IPLT20RankBatting=yka.rankIPLT20Batting("C:\\software\\cricket-package\\yorkpyPkg\\data\\ipldata")
IPLT20RankBatting.head(15)

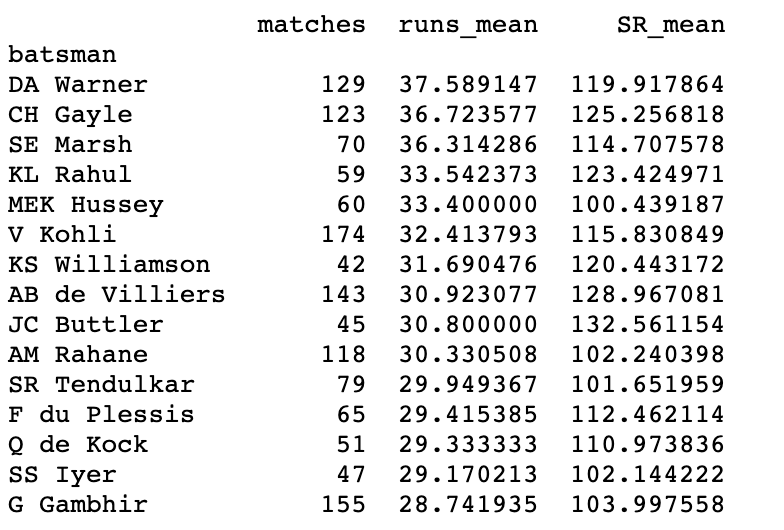

##                    matches  runs_mean     SR_mean
## batsman
## DA Warner              129  37.589147  119.917864
## CH Gayle               123  36.723577  125.256818
## SE Marsh                70  36.314286  114.707578
## KL Rahul                59  33.542373  123.424971
## MEK Hussey              60  33.400000  100.439187
## V Kohli                174  32.413793  115.830849
## KS Williamson           42  31.690476  120.443172
## AB de Villiers         143  30.923077  128.967081
## JC Buttler              45  30.800000  132.561154
## AM Rahane              118  30.330508  102.240398
## SR Tendulkar            79  29.949367  101.651959
## F du Plessis            65  29.415385  112.462114
## Q de Kock               51  29.333333  110.973836
## SS Iyer                 47  29.170213  102.144222
## G Gambhir              155  28.741935  103.997558

2b. Ranking of bowlers in IPL T20

import yorkpy.analytics as yka
IPLT20RankBowling=yka.rankIPLT20Bowling("C:\\software\\cricket-package\\yorkpyPkg\\data\\ipldata")
IPLT20RankBowling.head(15)
##                      matches  wicket_mean  econrate_mean
## bowler
## SL Malinga               122     1.540984       7.173361
## Imran Tahir               43     1.465116       8.155039
## A Nehra                   88     1.375000       7.923295
## MJ McClenaghan            56     1.339286       8.638393
## Rashid Khan               46     1.304348       6.543478
## Sandeep Sharma            79     1.303797       7.860759
## MM Patel                  63     1.301587       7.530423
## DJ Bravo                 131     1.282443       8.458333
## M Morkel                  70     1.257143       7.760714
## SP Narine                109     1.256881       6.747706
## YS Chahal                 83     1.228916       8.103659
## R Vinay Kumar            104     1.221154       8.556090
## RP Singh                  82     1.219512       8.149390
## CH Morris                 52     1.211538       7.854167
## B Kumar                  117     1.205128       7.536325

3. Natwest T20

The steps to do before ranking for Natwest T20 matches are 1. Download Natwest T20 zip file from Cricsheet NTB T20 2. Unzip the file. This will create a folder with yaml files

import yorkpy.analytics as yka
#yka.convertAllYaml2PandasDataframesT20("../ntb","../ntbdata")

This above step will convert the yaml files into CSV files in the /ntbdata folder. Now do the ranking as below

3a. Ranking of NTB batsmen

import yorkpy.analytics as yka
NTBT20RankBatting=yka.rankNTBT20Batting("C:\\software\\cricket-package\\yorkpyPkg\\data\\ntbdata")
NTBT20RankBatting.head(15)
##                      matches  runs_mean     SR_mean
## batsman
## Babar Azam                13  44.461538  121.268809
## T Banton                  13  42.230769  139.376274
## JJ Roy                    12  41.250000  142.182147
## DJM Short                 12  40.250000  131.182294
## AN Petersen               12  37.916667  132.522727
## IR Bell                   13  37.615385  130.104721
## M Klinger                 26  35.346154  112.682922
## EJG Morgan                16  35.062500  129.817650
## AJ Finch                  19  34.578947  137.093465
## MH Wessels                26  33.884615  116.300969
## S Steel                   11  33.545455  140.118207
## DJ Bell-Drummond          21  33.142857  108.566309
## Ashar Zaidi               11  33.000000  178.553331
## DJ Malan                  26  33.000000  120.127202
## T Kohler-Cadmore          23  32.956522  112.493019

3b. Ranking of NTB bowlers

import yorkpy.analytics as yka
NTBT20RankBowling=yka.rankNTBT20Bowling("C:\\software\\cricket-package\\yorkpyPkg\\data\\ntbdata")
NTBT20RankBowling.head(15)
##                        matches  wicket_mean  econrate_mean
## bowler
## MW Parkinson                11     2.000000       7.628788
## HF Gurney                   23     1.956522       8.831884
## GR Napier                   12     1.916667       8.694444
## R Rampaul                   19     1.736842       7.131579
## P Coughlin                  11     1.727273       8.909091
## AJ Tye                      26     1.692308       8.227564
## GC Viljoen                  12     1.666667       7.708333
## BAC Howell                  21     1.666667       6.857143
## BW Sanderson                12     1.583333       7.902778
## KJ Abbott                   14     1.571429       9.398810
## JE Taylor                   13     1.538462       9.839744
## JDS Neesham                 12     1.500000      10.812500
## MJ Potts                    12     1.500000       8.486111
## TT Bresnan                  21     1.476190       8.817460
## T van der Gugten            13     1.461538       7.211538

4. Big Bash Leagure (BBL) T20

The steps to do before ranking for BBL T20 matches are 1. Download BBL T20 zip file from Cricsheet BBL T20 2. Unzip the file. This will create a folder with yaml files

import yorkpy.analytics as yka
#yka.convertAllYaml2PandasDataframesT20("../bbl","../bbldata")

This above step will convert the yaml files into CSV files in the /bbldata folder. Now do the ranking as below

4a. Ranking of BBL batsmen

import yorkpy.analytics as yka
BBLT20RankBatting=yka.rankBBLT20Batting("C:\\software\\cricket-package\\yorkpyPkg\\data\\bbldata")
BBLT20RankBatting.head(15)
##                 matches  runs_mean     SR_mean
## batsman
## DJM Short            43  40.883721  118.773047
## SE Marsh             47  39.148936  113.616053
## AJ Finch             62  36.306452  120.271231
## AT Carey             37  34.945946  120.125341
## UT Khawaja           41  31.268293  107.355655
## CA Lynn              74  31.162162  121.746578
## MS Wade              46  30.782609  120.310081
## TM Head              45  30.000000  126.769564
## MEK Hussey           23  29.173913  109.492934
## BJ Hodge             29  29.000000  124.438040
## BR Dunk              39  28.230769  106.149913
## AD Hales             31  27.161290  117.678008
## BB McCullum          34  27.058824  115.486392
## GJ Bailey            57  27.000000  121.159220
## MR Marsh             47  26.510638  114.994909

4b. Ranking of BBL bowlers

import yorkpy.analytics as yka
BBLT20RankBowling=yka.rankBBLT20Bowling("C:\\software\\cricket-package\\yorkpyPkg\\data\\bbldata")
BBLT20RankBowling.head(15)
##                    matches  wicket_mean  econrate_mean
## bowler
## Yasir Arafat            15     2.000000       7.587778
## CH Morris               15     1.733333       8.572222
## TK Curran               27     1.629630       8.716049
## TT Bresnan              13     1.615385       8.775641
## JR Hazlewood            18     1.555556       7.361111
## CJ McKay                15     1.533333       8.555556
## DR Sams                 36     1.527778       8.581019
## AC McDermott            14     1.500000       9.166667
## JP Faulkner             20     1.500000       8.345833
## SP Narine               12     1.500000       7.395833
## AJ Tye                  51     1.490196       8.101307
## M Kelly                 21     1.476190       8.908730
## SA Abbott               73     1.438356       8.737443
## B Laughlin              82     1.426829       8.332317
## SW Tait                 31     1.419355       8.895161

Conclusion

You should be able to now rank players in the above formats as new data is added to Cricsheet. yorkpy can also be used for other leagues which follow the Cricsheet format.

Also see
1. Deep Learning from first principles in Python, R and Octave – Part 5
2. Using Linear Programming (LP) for optimizing bowling change or batting lineup in T20 cricket
3. Using Reinforcement Learning to solve Gridworld
4. Big Data-4: Webserver log analysis with RDDs, Pyspark, SparkR and SparklyR
5. My book ‘Practical Machine Learning in R and Python: Third edition’ on Amazon
6. Deblurring with OpenCV: Weiner filter reloaded
7. Rock N’ Roll with Bluemix, Cloudant & NodeExpress
8. Modeling a Car in Android

To see all posts click Index of posts

Using Reinforcement Learning to solve Gridworld

“Take up one idea. Make that one idea your life — think of it, dream of it, live on that idea. Let the brain, muscles, nerves, every part of your body, be full of that idea, and just leave every other idea alone. This is the way to success.”

– Swami Vivekananda

“Be the change you want to see in the world”

– Mahatma Gandhi

“If you want to shine like the sun, first burn like the sun”

-Shri A.P.J Abdul Kalam



Reinforcement Learning

Reinforcement Learning (RL) involves decision making under uncertainty which tries to maximize return over successive states.There are four main elements of a Reinforcement Learning system: a policy, a reward signal, a value function. The policy is a mapping from the states to actions or a probability distribution of actions. Every action the agent takes results in a numerical reward. The agent’s sole purpose is to maximize the reward in the long run.

Reinforcement Learning is very different from Supervised, Unsupervised and Semi-supervised learning where the data is either labeled, unlabeled or partially labeled and the learning algorithm tries to learn the target values from the input features which is then used either for inference or prediction. In unsupervised the intention is to extract patterns from the data. In Reinforcement Learning the agent/robot takes action in each state based on the reward it would get for a particular action in a specific state with the goal of maximizing the reward. In many ways Reinforcement Learning is similar to how human beings and animals learn. Every action we take is with the goal of increasing our overall happiness, contentment, money,fame, power over the opposite!

RL has been used very effectively in many situations, the most famous is AlphaGo from Deep Mind, the first computer program to defeat a professional Go player in the Go game, which is supposed to be extremely complex. Also AlphaZero, from DeepMind has a higher ELO rating than that of Stockfish and was able to beat Stockfish 800+ times in 1000 chess matches. Take a look at DeepMind

In this post, I use some of the basic concepts of Reinforcment Learning to solve Grids (mazes). With this we can solve mazes, with arbitrary size, shape and complexity fairly easily. The RL algorithm can find the optimal path through the maze. Incidentally, I recollect recursive algorithms in Data Structures book which take a much more complex route with a lot of back tracking to solve maze problems

Reinforcement Learning involves decision making under uncertainty which tries to maximize return over successive states.There are four main elements of a Reinforcement Learning system: a policy, a reward signal, a value function. The policy is a mapping from the states to actions or a probability distribution of actions. Every action the agent takes results in a numerical reward. The agent’s sole purpose is to maximize the reward in the long run.

The reward indicates the immediate return, a value function specifies the return in the long run. Value of a state is the expected reward that an agent can accrue.

The agent/robot takes an action in At in state St and moves to state S’t anf gets a reward Rt+1 as shown

An agent will seek to maximize the overall return as it transition across states
The expected return can be expressed as
G_{t} = R_{t+1} + \gamma G_{t+1} where G_{t} is the expected return in time t and the discounted expected return G_{t+1} in time t+1

A policy is a mapping from states to probabilities of selecting each possible action. If the agent is following policy \pi at time t, then \pi(a|s) is the probability that A_{t} = a if S_{t} = s.

The value function of a state s under a policy \pi, denoted v_{\pi}(s), is the expected return when starting in s and following \pi thereafter

This can be written as

v_{\pi}(s) = E_{\pi}[G_{t} |S_{t}=s] = E_{\pi}[\sum_{k=0}^{k=Inf} \gamma^{k}R_{t+k+1}|S_{t}=s]

= E_{\pi}[R_{t+1} + \gamma G_{t+1} |S_{t}=s]

v_{\pi}(s)=\sum_{a} \pi(a|s) \sum_{s',r} p(s',r|s,a)[r+\gamma*v_{\pi}(s')]

Similarly the action value function gives the expected return when taking an action ‘a’ in state ‘s’
q_{\pi}(s,a)= \sum_{s',r} p(s',r|s,a)[r+\gamma*\pi(a|s)q_{\pi}(s',a')]

These are Bellman’s equation for the state value function

The Bellman equations give the equation for each of the state

The Bellman optimality equations give the optimal policy of choosing specific actions in specific states to achieve the maximum reward and reach the goal efficiently. They are given as

v_{*}(s)=max_{a}\sum_{s',r} p(s',r|s,a)[r+\gamma*v_{*}(s')]

q_{*}(s,a)=\sum_{s',r} p(s',r|s,a)[r+\gamma*max_{a}q_{*}(s',a')]

The Bellman equations cannot be used directly in goal directed problems and dynamic programming is used instead where the value functions are computed iteratively

n this post I solve Grids using Reinforcement Learning. In the problem below the Maze has 2 end states as shown in the corner. There are four possible actions in each state up, down, right and left. If an action in a state takes it out of the grid then the agent remains in the same state. All actions have a reward of -1 while the end states have a reward of 0

This is shown as

where the reward for any transition is Rt=1Rt=−1 except the transition to the end states at the corner which have a reward of 0. The policy is a uniform policy with all actions being equi-probable with a probability of 1/4 or 0.25

You can fork/clone the code from my Github repository – Gridworld
Note: This post shows 3 different grids each with slightly more complexity and uses 3 methods
a) Bellman Update
b) Greedification
c) Bellman Optimality Update
with dynamic programming to solve the Grids

1. Gridworld-1

In [1]:
import numpy as np
import random
In [2]:
gamma = 1 # discounting rate
gridSize = 4
rewardValue = -1
terminationStates = [[0,0], [gridSize-1, gridSize-1]]
actions = [[-1, 0], [1, 0], [0, 1], [0, -1]]
numIterations = 1000

The action value provides the next state for a given action in a state and the accrued reward

In [3]:
def actionValue(initialPosition,action):
    if initialPosition in terminationStates:
        finalPosition = initialPosition
        reward=0
    else:
        #Compute final position
        finalPosition = np.array(initialPosition) + np.array(action)
        reward= rewardValue
    # If the action moves the finalPosition out of the grid, stay in same cell
    if -1 in finalPosition or gridSize in finalPosition:
        finalPosition = initialPosition
        reward= rewardValue

    #print(finalPosition)
    return finalPosition, reward

1a. Bellman Update

In [4]:
# Initialize valueMap and valueMap1
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
In [5]:
def policy_evaluation(numIterations,gamma,theta,valueMap):
    for i in range(numIterations):
        delta=0
        for state in states:
            weightedRewards=0
            for action in actions:
                finalPosition,reward = actionValue(state,action)
                weightedRewards += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
            valueMap1[state[0],state[1]]=weightedRewards
            delta =max(delta,abs(weightedRewards-valueMap[state[0],state[1]]))
        valueMap = np.copy(valueMap1)
        if(delta < 0.01):
            print(valueMap)
            break
In [6]:
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
policy_evaluation(1000,1,0.001,valueMap)
[[  0.         -13.89528403 -19.84482978 -21.82635535]
 [-13.89528403 -17.86330422 -19.84586777 -19.84482978]
 [-19.84482978 -19.84586777 -17.86330422 -13.89528403]
 [-21.82635535 -19.84482978 -13.89528403   0.        ]]

Findings

The valueMap is the result of several sweeps through all the states. It can be seen that the cells in the corner state have a higher value. We can start on any cell in the grid and move in the direction which is greater than the current state and we will reach the end state

1b. Greedify

The previous alogirthm while it works is somewhat inefficient as we have to sweep over the states to compute the state value function. The approach below works on the same problem but after each computation of the value function, a greedifications takes place to ensure that the action with the highest return is selected after which the policy ππ is followed

To make the transitions clearer I also create another grid which shows the path from any cell to the end states as

‘u’ – up

‘d’ – down

‘r’ – right

‘l’ – left

Important note: If there are several alternative actions with equal value then the algorithm will break the tie randomly

In [7]:
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
pi = np.ones((gridSize,gridSize))/4
pi1 = np.chararray((gridSize, gridSize))
pi1[:] = 'a'
In [8]:
# Compute the value state function for the Grid
def policy_evaluate(states,actions,gamma,valueMap):
    #print("iterations=",i)
    for state in states:
        weightedRewards=0
        for action in actions:
            finalPosition,reward = actionValue(state,action)
            weightedRewards += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
        # Set the computed weighted rewards to valueMap1
        valueMap1[state[0],state[1]]=weightedRewards
    # Copy to original valueMap
    valueMap = np.copy(valueMap1)
    return(valueMap)
In [9]:
def argmax(q_values):
    idx=np.argmax(q_values)
    return(np.random.choice(np.where(a==a[idx])[0].tolist()))


# Compute the best action in each state
def greedify_policy(state,pi,pi1,gamma,valueMap):
        q_values=np.zeros(len(actions))
        for idx,action in enumerate(actions):
            finalPosition,reward = actionValue(state,action)
            q_values[idx] += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
        # Find the index of the action for which the q_value is
        idx=q_values.argmax()
        pi[state[0],state[1]]=idx
        if(idx == 0):
            pi1[state[0],state[1]]='u'
        elif(idx == 1):
            pi1[state[0],state[1]]='d'
        elif(idx == 2):
            pi1[state[0],state[1]]='r'
        elif(idx == 3):
            pi1[state[0],state[1]]='l'


In [10]:
def improve_policy(pi, pi1,gamma,valueMap):
    policy_stable = True
    for state in states:
        old = pi[state].copy()
        # Greedify policy for state
        greedify_policy(state,pi,pi1,gamma,valueMap)
        if not np.array_equal(pi[state], old):
            policy_stable = False
    print(pi)
    print(pi1)
    return pi, pi1, policy_stable
In [11]:
def policy_iteration(gamma, theta):
    valueMap = np.zeros((gridSize, gridSize))
    pi = np.ones((gridSize,gridSize))/4
    pi1 = np.chararray((gridSize, gridSize))
    pi1[:] = 'a'
    policy_stable = False
    print("here")
    while not policy_stable:
        valueMap = policy_evaluate(states,actions,gamma,valueMap)
        pi,pi1, policy_stable = improve_policy(pi,pi1,  gamma,valueMap)
    return valueMap, pi,pi1
In [12]:
theta=0.1
valueMap, pi,pi1 = policy_iteration(gamma, theta)
[[0. 3. 0. 0.]
 [0. 0. 0. 0.]
 [0. 0. 0. 1.]
 [0. 0. 2. 0.]]
[[b'u' b'l' b'u' b'u']
 [b'u' b'u' b'u' b'u']
 [b'u' b'u' b'u' b'd']
 [b'u' b'u' b'r' b'u']]
[[0. 3. 3. 0.]
 [0. 0. 0. 1.]
 [0. 0. 1. 1.]
 [0. 2. 2. 0.]]
[[b'u' b'l' b'l' b'u']
 [b'u' b'u' b'u' b'd']
 [b'u' b'u' b'd' b'd']
 [b'u' b'r' b'r' b'u']]
[[0. 3. 3. 1.]
 [0. 0. 1. 1.]
 [0. 0. 1. 1.]
 [0. 2. 2. 0.]]
[[b'u' b'l' b'l' b'd']
 [b'u' b'u' b'd' b'd']
 [b'u' b'u' b'd' b'd']
 [b'u' b'r' b'r' b'u']]
[[0. 3. 3. 1.]
 [0. 0. 1. 1.]
 [0. 0. 1. 1.]
 [0. 2. 2. 0.]]
[[b'u' b'l' b'l' b'd']
 [b'u' b'u' b'd' b'd']
 [b'u' b'u' b'd' b'd']
 [b'u' b'r' b'r' b'u']]

Findings

From the above valueMap we can see that greedification solves this much faster as below

1c. Bellman Optimality update

The Bellman optimality update directly updates the value state function for the action that results in the maximum return in a state

In [13]:
gamma = 1 # discounting rate
rewardValue = -1
gridSize = 4
terminationStates = [[0,0], [gridSize-1, gridSize-1]]
actions = [[-1, 0], [1, 0], [0, 1], [0, -1]]
numIterations = 1000
In [14]:
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
pi = np.ones((gridSize,gridSize))/4
pi1 = np.chararray((gridSize, gridSize))
pi1[:] = 'a'
In [15]:
def bellman_optimality_update(valueMap, state, gamma):

    q_values=np.zeros(len(actions))

    for idx,action in enumerate(actions):
        finalPosition,reward = actionValue(state,action)
        q_values[idx] += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
    # Find the index of the action for which the q_value is
    idx=q_values.argmax()

    max = np.argmax(q_values)
    valueMap[state[0],state[1]] = q_values[max]
    #print(q_values[max])
In [16]:
def value_iteration(gamma, theta):
    valueMap = np.zeros((gridSize, gridSize))
    while True:
        delta = 0
        for state in states:
            v_old=valueMap[state[0],state[1]]
            bellman_optimality_update(valueMap, state, gamma)
            delta = max(delta, abs(v_old - valueMap[state[0],state[1]]))
        if delta < theta:
            break
    pi = np.ones((gridSize,gridSize))/4
    for state in states:
        greedify_policy(state,pi,pi1,gamma,valueMap)
    print(pi)
    print(pi1)
    return valueMap, pi,pi1
In [17]:
gamma = 1
theta = 0.01
valueMap,pi,pi1=value_iteration(gamma, theta)
pi
pi1
[[0. 3. 3. 1.]
 [0. 0. 0. 1.]
 [0. 0. 1. 1.]
 [0. 2. 2. 0.]]
[[b'u' b'l' b'l' b'd']
 [b'u' b'u' b'u' b'd']
 [b'u' b'u' b'd' b'd']
 [b'u' b'r' b'r' b'u']]
Out[17]:
chararray([[b'u', b'l', b'l', b'd'],
           [b'u', b'u', b'u', b'd'],
           [b'u', b'u', b'd', b'd'],
           [b'u', b'r', b'r', b'u']], dtype='|S1')

Findings

The above valueMap shows the optimal path from any state

2.Gridworld 2

To make the problem more interesting, I created a 2nd grid which has more interesting structure as shown below <img src=”fig5.png”

The end state is the grey cell. Transitions to the black cells have a negative reward of -10. All other transitions have a reward of -1, while the end state has a reward of 0

In [2]:

##2a. Bellman Update

In [3]:
gamma = 1 # discounting rate
gridSize = 4

terminationStates = [[0,0]]
#terminationStates = [[0,0]]
actions = [[-1, 0], [1, 0], [0, 1], [0, -1]]
numIterations = 1000
In [4]:
rewardValue = np.zeros((gridSize,gridSize)) -1
rewardValue[0]=np.array([-1,-10,-10,-10])
rewardValue[2]=np.array([-10,-10,-10,-1])
rewardValue
Out[4]:
array([[ -1., -10., -10., -10.],
       [ -1.,  -1.,  -1.,  -1.],
       [-10., -10., -10.,  -1.],
       [ -1.,  -1.,  -1.,  -1.]])
In [5]:
def actionValue(initialPosition,action):
    if initialPosition in terminationStates:
        finalPosition = initialPosition
        reward=0
    else:
        #Compute final position
        finalPosition = np.array(initialPosition) + np.array(action)

        # If the action moves the finalPosition out of the grid, stay in same cell
        if -1 in finalPosition or gridSize in finalPosition:
                finalPosition = initialPosition
                reward= rewardValue[finalPosition[0],finalPosition[1]]
        else:
                reward= rewardValue[finalPosition[0],finalPosition[1]]

    #print(finalPosition)
    return finalPosition, reward
In [6]:
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
In [7]:
def policy_evaluation(numIterations,gamma,theta,valueMap):
    for i in range(numIterations):
        delta=0
        #print("iterations=",i)
        for state in states:
            weightedRewards=0
            for action in actions:
                finalPosition,reward = actionValue(state,action)
                #print("reward=",reward,"valueMap=",valueMap[finalPosition[0],finalPosition][1])
                weightedRewards += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
            #print(weightedRewards)
            valueMap1[state[0],state[1]]=weightedRewards
            #print("wr=",weightedRewards,"va=",valueMap[state[0],state[1]])
            delta =max(delta,abs(weightedRewards-valueMap[state[0],state[1]]))
        valueMap = np.copy(valueMap1)
        #print(valueMap1)
        if(delta < 0.01):
            print(delta)
            print(valueMap)
            break
In [8]:
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
policy_evaluation(1000,1,0.0001,valueMap)
0.009862596190146178
[[   0.         -137.28514189 -209.19560831 -239.01378395]
 [-129.2494276  -180.67825796 -220.31626448 -237.86482779]
 [-194.08846546 -213.88769305 -231.5579035  -241.29920147]
 [-217.15664109 -227.25768494 -237.76348718 -241.51200989]]

2b. Greedify

In [9]:
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
pi = np.ones((gridSize,gridSize))/4
pi1 = np.chararray((gridSize, gridSize))
pi1[:] = 'a'
In [10]:
# Compute the value state function for the Grid
def policy_evaluate(states,actions,gamma,valueMap):
    #print("iterations=",i)
    for state in states:
        weightedRewards=0
        for action in actions:
            finalPosition,reward = actionValue(state,action)
            weightedRewards += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
        # Set the computed weighted rewards to valueMap1
        valueMap1[state[0],state[1]]=weightedRewards
    # Copy to original valueMap
    valueMap = np.copy(valueMap1)
    return(valueMap)
In [11]:
def argmax(q_values):
    idx=np.argmax(q_values)
    return(np.random.choice(np.where(a==a[idx])[0].tolist()))


# Compute the best action in each state
def greedify_policy(state,pi,pi1,gamma,valueMap):
        q_values=np.zeros(len(actions))
        for idx,action in enumerate(actions):
            finalPosition,reward = actionValue(state,action)
            q_values[idx] += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
        # Find the index of the action for which the q_value is
        idx=q_values.argmax()
        pi[state[0],state[1]]=idx
        if(idx == 0):
            pi1[state[0],state[1]]='u'
        elif(idx == 1):
            pi1[state[0],state[1]]='d'
        elif(idx == 2):
            pi1[state[0],state[1]]='r'
        elif(idx == 3):
            pi1[state[0],state[1]]='l'


In [12]:
def improve_policy(pi, pi1,gamma,valueMap):
    policy_stable = True
    for state in states:
        old = pi[state].copy()
        # Greedify policy for state
        greedify_policy(state,pi,pi1,gamma,valueMap)
        if not np.array_equal(pi[state], old):
            policy_stable = False
    print(pi)
    print(pi1)
    return pi, pi1, policy_stable
In [13]:
def policy_iteration(gamma, theta):
    valueMap = np.zeros((gridSize, gridSize))
    pi = np.ones((gridSize,gridSize))/4
    pi1 = np.chararray((gridSize, gridSize))
    pi1[:] = 'a'
    policy_stable = False
    print("here")
    while not policy_stable:
        valueMap = policy_evaluate(states,actions,gamma,valueMap)
        pi,pi1, policy_stable = improve_policy(pi,pi1,  gamma,valueMap)
    return valueMap, pi,pi1
In [14]:
theta=0.1
valueMap, pi,pi1 = policy_iteration(gamma, theta)
here
[[0. 3. 1. 1.]
 [0. 3. 2. 1.]
 [0. 1. 1. 1.]
 [1. 1. 2. 1.]]
[[b'u' b'l' b'd' b'd']
 [b'u' b'l' b'r' b'd']
 [b'u' b'd' b'd' b'd']
 [b'd' b'd' b'r' b'd']]
[[0. 3. 1. 1.]
 [0. 3. 2. 1.]
 [0. 1. 1. 1.]
 [1. 2. 2. 1.]]
[[b'u' b'l' b'd' b'd']
 [b'u' b'l' b'r' b'd']
 [b'u' b'd' b'd' b'd']
 [b'd' b'r' b'r' b'd']]
[[0. 3. 1. 1.]
 [0. 3. 2. 1.]
 [0. 1. 1. 1.]
 [2. 2. 2. 1.]]
[[b'u' b'l' b'd' b'd']
 [b'u' b'l' b'r' b'd']
 [b'u' b'd' b'd' b'd']
 [b'r' b'r' b'r' b'd']]
[[0. 3. 1. 1.]
 [0. 3. 2. 1.]
 [0. 1. 1. 1.]
 [2. 2. 2. 1.]]
[[b'u' b'l' b'd' b'd']
 [b'u' b'l' b'r' b'd']
 [b'u' b'd' b'd' b'd']
 [b'r' b'r' b'r' b'd']]
In [15]:
## 2c. Bellman Optimality update
In [16]:
gamma = 1 # discounting rate
rewardValue = np.zeros((gridSize,gridSize)) -1
rewardValue[0]=np.array([-1,-10,-10,-10])
rewardValue[2]=np.array([-10,-10,-10,-1])
rewardValue
gridSize = 4
terminationStates = [[0,0]]
actions = [[-1, 0], [1, 0], [0, 1], [0, -1]]
numIterations = 1000
In [17]:
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
pi = np.ones((gridSize,gridSize))/4
pi1 = np.chararray((gridSize, gridSize))
pi1[:] = 'a'
In [18]:

2c. Bellman Optimality Update

def bellman_optimality_update(valueMap, state, gamma):

    q_values=np.zeros(len(actions))

    for idx,action in enumerate(actions):
        finalPosition,reward = actionValue(state,action)
        q_values[idx] += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
    # Find the index of the action for which the q_value is
    idx=q_values.argmax()

    max = np.argmax(q_values)
    valueMap[state[0],state[1]] = q_values[max]
    #print(q_values[max])
In [19]:
def value_iteration(gamma, theta):
    valueMap = np.zeros((gridSize, gridSize))
    while True:
        delta = 0
        for state in states:
            v_old=valueMap[state[0],state[1]]
            bellman_optimality_update(valueMap, state, gamma)
            delta = max(delta, abs(v_old - valueMap[state[0],state[1]]))
        if delta < theta:
            break
    pi = np.ones((gridSize,gridSize))/4
    for state in states:
        greedify_policy(state,pi,pi1,gamma,valueMap)
    print(pi)
    print(pi1)
    return valueMap, pi,pi1
In [20]:
gamma = 1
theta = 0.000001
valueMap,pi,pi1=value_iteration(gamma, theta)
pi
pi1
[[0. 3. 1. 1.]
 [0. 3. 3. 3.]
 [0. 0. 0. 0.]
 [2. 2. 2. 0.]]
[[b'u' b'l' b'd' b'd']
 [b'u' b'l' b'l' b'l']
 [b'u' b'u' b'u' b'u']
 [b'r' b'r' b'r' b'u']]
Out[20]:
chararray([[b'u', b'l', b'd', b'd'],
           [b'u', b'l', b'l', b'l'],
           [b'u', b'u', b'u', b'u'],
           [b'r', b'r', b'r', b'u']], dtype='|S1')

Findings

The above shows the path from any cell to the stop cell as


3. Another maze

This is the third grid world which I create where the green cell is the end state and has a reward of 0. Transitions to the black cell will receive a reward of -10 and all other transitions will receive a reward of -1

In [2]:
gamma = 1 # discounting rate
gridSize = 5
terminationStates = [[2,2]]
actions = [[-1, 0], [1, 0], [0, 1], [0, -1]]
numIterations = 1000
In [3]:
rewardValue = np.zeros((gridSize,gridSize)) -1
rewardValue[1]=np.array([-1,-10,-1,-10,-1])
rewardValue[3]=np.array([-1,-10,-1,-10,-1])
rewardValue
Out[3]:
array([[ -1.,  -1.,  -1.,  -1.,  -1.],
       [ -1., -10.,  -1., -10.,  -1.],
       [ -1.,  -1.,  -1.,  -1.,  -1.],
       [ -1., -10.,  -1., -10.,  -1.],
       [ -1.,  -1.,  -1.,  -1.,  -1.]])
In [4]:

3a. Bellman Update

def actionValue(initialPosition,action):
    if initialPosition in terminationStates:
        finalPosition = initialPosition
        reward=0
    else:
        #Compute final position
        finalPosition = np.array(initialPosition) + np.array(action)

        # If the action moves the finalPosition out of the grid, stay in same cell
        if -1 in finalPosition or gridSize in finalPosition:
                finalPosition = initialPosition
                reward= rewardValue[finalPosition[0],finalPosition[1]]
        else:
                reward= rewardValue[finalPosition[0],finalPosition[1]]

    #print(finalPosition)
    return finalPosition, reward
In [5]:
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
In [6]:
def policy_evaluation(numIterations,gamma,theta,valueMap):
    for i in range(numIterations):
        delta=0
        #print("iterations=",i)
        for state in states:
            weightedRewards=0
            for action in actions:
                finalPosition,reward = actionValue(state,action)
                #print("reward=",reward,"valueMap=",valueMap[finalPosition[0],finalPosition][1])
                weightedRewards += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
            #print(weightedRewards)
            valueMap1[state[0],state[1]]=weightedRewards
            #print("wr=",weightedRewards,"va=",valueMap[state[0],state[1]])
            delta =max(delta,abs(weightedRewards-valueMap[state[0],state[1]]))
        valueMap = np.copy(valueMap1)
        #print(valueMap1)
        if(delta < 0.01):
            print(delta)
            print(valueMap)
            break
In [7]:
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
policy_evaluation(1000,1,0.0001,valueMap)
0.009697101372182715
[[-82.49768079 -80.51647225 -74.9345659  -80.51647225 -82.49768079]
 [-80.51647225 -71.15241689 -59.80375072 -71.15241689 -80.51647225]
 [-74.9345659  -59.80375072   0.         -59.80375072 -74.9345659 ]
 [-80.51647225 -71.15241689 -59.80375072 -71.15241689 -80.51647225]
 [-82.49768079 -80.51647225 -74.9345659  -80.51647225 -82.49768079]]

3b. Greedify

In [8]:
valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
pi = np.ones((gridSize,gridSize))/4
pi1 = np.chararray((gridSize, gridSize))
pi1[:] = 'a'
In [9]:
# Compute the value state function for the Grid
def policy_evaluate(states,actions,gamma,valueMap):
    #print("iterations=",i)
    for state in states:
        weightedRewards=0
        for action in actions:
            finalPosition,reward = actionValue(state,action)
            weightedRewards += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
        # Set the computed weighted rewards to valueMap1
        valueMap1[state[0],state[1]]=weightedRewards
    # Copy to original valueMap
    valueMap = np.copy(valueMap1)
    return(valueMap)
In [10]:
def argmax(q_values):
    idx=np.argmax(q_values)
    return(np.random.choice(np.where(a==a[idx])[0].tolist()))


# Compute the best action in each state
def greedify_policy(state,pi,pi1,gamma,valueMap):
        q_values=np.zeros(len(actions))
        for idx,action in enumerate(actions):
            finalPosition,reward = actionValue(state,action)
            q_values[idx] += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
        # Find the index of the action for which the q_value is
        idx=q_values.argmax()
        pi[state[0],state[1]]=idx
        if(idx == 0):
            pi1[state[0],state[1]]='u'
        elif(idx == 1):
            pi1[state[0],state[1]]='d'
        elif(idx == 2):
            pi1[state[0],state[1]]='r'
        elif(idx == 3):
            pi1[state[0],state[1]]='l'


In [11]:
def improve_policy(pi, pi1,gamma,valueMap):
    policy_stable = True
    for state in states:
        old = pi[state].copy()
        # Greedify policy for state
        greedify_policy(state,pi,pi1,gamma,valueMap)
        if not np.array_equal(pi[state], old):
            policy_stable = False
    print(pi)
    print(pi1)
    return pi, pi1, policy_stable
In [12]:
def policy_iteration(gamma, theta):
    valueMap = np.zeros((gridSize, gridSize))
    pi = np.ones((gridSize,gridSize))/4
    pi1 = np.chararray((gridSize, gridSize))
    pi1[:] = 'a'
    policy_stable = False
    print("here")
    while not policy_stable:
        valueMap = policy_evaluate(states,actions,gamma,valueMap)
        pi,pi1, policy_stable = improve_policy(pi,pi1,  gamma,valueMap)
    return valueMap, pi,pi1
In [13]:
theta=0.1
valueMap, pi,pi1 = policy_iteration(gamma, theta)
here
[[0. 2. 0. 2. 0.]
 [0. 0. 1. 0. 0.]
 [3. 2. 0. 3. 2.]
 [0. 1. 0. 1. 0.]
 [1. 2. 1. 2. 1.]]
[[b'u' b'r' b'u' b'r' b'u']
 [b'u' b'u' b'd' b'u' b'u']
 [b'l' b'r' b'u' b'l' b'r']
 [b'u' b'd' b'u' b'd' b'u']
 [b'd' b'r' b'd' b'r' b'd']]
[[0. 3. 0. 2. 0.]
 [0. 0. 1. 0. 0.]
 [3. 2. 0. 3. 2.]
 [1. 1. 0. 1. 1.]
 [1. 3. 1. 2. 1.]]
[[b'u' b'l' b'u' b'r' b'u']
 [b'u' b'u' b'd' b'u' b'u']
 [b'l' b'r' b'u' b'l' b'r']
 [b'd' b'd' b'u' b'd' b'd']
 [b'd' b'l' b'd' b'r' b'd']]
[[0. 3. 0. 2. 0.]
 [0. 0. 1. 0. 0.]
 [3. 2. 0. 3. 2.]
 [1. 1. 0. 1. 1.]
 [1. 3. 1. 2. 1.]]
[[b'u' b'l' b'u' b'r' b'u']
 [b'u' b'u' b'd' b'u' b'u']
 [b'l' b'r' b'u' b'l' b'r']
 [b'd' b'd' b'u' b'd' b'd']
 [b'd' b'l' b'd' b'r' b'd']]
In [14]:
gamma = 1 # discounting rate
gridSize=5
rewardValue = np.zeros((gridSize,gridSize)) -1
rewardValue = np.zeros((gridSize,gridSize)) -1
rewardValue[1]=np.array([-1,-10,-1,-10,-1])
rewardValue[3]=np.array([-1,-10,-1,-10,-1])
print(rewardValue)


terminationStates = [[2,2]]
actions = [[-1, 0], [1, 0], [0, 1], [0, -1]]
numIterations = 1000
[[ -1.  -1.  -1.  -1.  -1.]
 [ -1. -10.  -1. -10.  -1.]
 [ -1.  -1.  -1.  -1.  -1.]
 [ -1. -10.  -1. -10.  -1.]
 [ -1.  -1.  -1.  -1.  -1.]]
In [15]:

3c. Bellman Optimality Update

valueMap = np.zeros((gridSize, gridSize))
valueMap1 = np.zeros((gridSize, gridSize))
states = [[i, j] for i in range(gridSize) for j in range(gridSize)]
pi = np.ones((gridSize,gridSize))/4
pi1 = np.chararray((gridSize, gridSize))
pi1[:] = 'a'
In [16]:
def bellman_optimality_update(valueMap, state, gamma):

    q_values=np.zeros(len(actions))

    for idx,action in enumerate(actions):
        finalPosition,reward = actionValue(state,action)
        q_values[idx] += 1/4* (reward + gamma * valueMap[finalPosition[0],finalPosition][1])
    # Find the index of the action for which the q_value is
    idx=q_values.argmax()

    max = np.argmax(q_values)
    valueMap[state[0],state[1]] = q_values[max]
    #print(q_values[max])
In [17]:
def value_iteration(gamma, theta):
    valueMap = np.zeros((gridSize, gridSize))
    while True:
        delta = 0
        for state in states:
            v_old=valueMap[state[0],state[1]]
            bellman_optimality_update(valueMap, state, gamma)
            delta = max(delta, abs(v_old - valueMap[state[0],state[1]]))
        if delta < theta:
            break
    pi = np.ones((gridSize,gridSize))/4
    for state in states:
        greedify_policy(state,pi,pi1,gamma,valueMap)
    print(pi)
    print(pi1)
    return valueMap, pi,pi1
In [18]:
gamma = 1
theta = 0.000001
valueMap,pi,pi1=value_iteration(gamma, theta)
pi
pi1
[[1. 2. 1. 3. 1.]
 [1. 1. 1. 1. 1.]
 [2. 2. 0. 3. 3.]
 [0. 0. 0. 0. 0.]
 [0. 2. 0. 3. 0.]]
[[b'd' b'r' b'd' b'l' b'd']
 [b'd' b'd' b'd' b'd' b'd']
 [b'r' b'r' b'u' b'l' b'l']
 [b'u' b'u' b'u' b'u' b'u']
 [b'u' b'r' b'u' b'l' b'u']]
Out[18]:
chararray([[b'd', b'r', b'd', b'l', b'd'],
           [b'd', b'd', b'd', b'd', b'd'],
           [b'r', b'r', b'u', b'l', b'l'],
           [b'u', b'u', b'u', b'u', b'u'],
           [b'u', b'r', b'u', b'l', b'u']], dtype='|S1')


Findings

We can see that the Bellman Optimality Update correctly finds the path the to end node which we can see from the valueMap1 above which is

Conclusion:

We can see how with the Bellman equations implemented iteratively with dynamic programming we can solve mazes of arbitrary shapes and complexities as long as we correctly choose the reward for the transitions

References
1. Reinforcement learning – An introduction by Richard S. Sutton and Andrew G Barto
2. Reinforcement learning (RL) 101 with Python Blog by Gerard Martinez
3. Reinforcement Learning Demystified: Solving MDPs with Dynamic Programming Blog by Mohammed Ashraf

You may also like

1. My book ‘Deep Learning from first principles:Second Edition’ now on Amazon
2. Big Data-4: Webserver log analysis with RDDs, Pyspark, SparkR and SparklyR
3. Practical Machine Learning with R and Python – Part 3
3. Pitching yorkpy…on the middle and outside off-stump to IPL – Part 2
4. Sixer – R package cricketr’s new Shiny avatar
5. Natural language processing: What would Shakespeare say?
6. Getting started with Tensorflow, Keras in Python and R

To see all posts click Index of posts

Cricpy performs granular analysis of players

“Gold medals aren’t really made of gold. They’re made of sweat, determination, & a hard-to-find alloy called guts.” Dan Gable

“It doesn’t matter whether you are pursuing success in business, sports, the arts, or life in general: The bridge between wishing and accomplishing is discipline” Harvey Mackay

“I won’t predict anything historic. But nothing is impossible.” Michael Phelps

Introduction

In this post, I introduce 2 new functions in my Python package ‘cricpy’ (cricpy v0.20) see Introducing cricpy:A python package to analyze performances of cricketers which enable granular analysis of batsmen and bowlers. They are

  1. Step 1: getPlayerDataHA – This function is a wrapper around getPlayerData(), getPlayerDataOD() and getPlayerDataTT(), and adds an extra column ‘homeOrAway’ which says whether the match was played at home/away/neutral venues. A CSV file is created with this new column.
  2. Step 2: getPlayerDataOppnHA – This function allows you to slice & dice the data for batsmen and bowlers against specific oppositions, at home/away/neutral venues and between certain periods. This reducedsubset of data can be used to perform analyses. A CSV file is created as an output based on the parameters of opposition, home or away and the interval of time

Note All the existing cricpy functions can be used on this smaller fine-grained data set for a closer analysis of players

This post has been published in Rpubs and can be accessed at Cricpy performs granular analysis of players

You can download a PDF version of this post at Cricpy performs granular analysis of players

I have also updated the cricpy template with these lastest changes. See cricpy-template

1. Analyzing Rahul Dravid at 3 different stages of his career

The following functions analyze Rahul Dravid during 3 different periods of his illustrious career. a) 1st Jan 2001-1st Jan 2002 b) 1st Jan 2004-1st Jan 2005 c) 1st Jan 2009-1st Jan 2010

import cricpy.analytics as ca
# Get the homeOrAway dataset for Dravid in matches
# Note:Since I have already got the data I reuse the CSV file
#df=ca.getPlayerDataHA(28114,tfile="dravidTestHA.csv",matchType="Test")

# Get Dravid's data for 2001-02
df1=ca.getPlayerDataOppnHA(infile="dravidTestHA.csv",outfile="dravidTest2001.csv",startDate="2001-01-01",endDate="2002-01-01")

# Get Dravid's data for 2004-05
df2=ca.getPlayerDataOppnHA(infile="dravidTestHA.csv",outfile="dravidTest2004.csv", startDate="2004-01-01",endDate="2005-01-01")

# Get Dravid's data for 2009-10
df3=ca.getPlayerDataOppnHA(infile="dravidTestHA.csv",outfile="dravidTest2009.csv",startDate="2009-01-01",endDate="2010-01-01")

1a. Plot the performance of Dravid at venues during 2001,2004,2009

Note: Any of the cricpy functions can be used on the fine-grained subset of data as below.

import cricpy.analytics as ca
ca.batsmanAvgRunsGround("dravidTest2001.csv","Dravid-2001")

ca.batsmanAvgRunsGround("dravidTest2004.csv","Dravid-2004")

ca.batsmanAvgRunsGround("dravidTest2009.csv","Dravid-2009")


1b. Plot the performance of Dravid against different oppositions during 2001,2004,2009

import cricpy.analytics as ca
ca.batsmanAvgRunsOpposition("dravidTest2001.csv","Dravid-2001")

ca.batsmanAvgRunsOpposition("dravidTest2004.csv","Dravid-2004")


ca.batsmanAvgRunsOpposition("dravidTest2009.csv","Dravid-2009")


1c. Plot the relative cumulative average and relative strike rate of Dravid in 2001,2004,2009

The plot below compares Dravid’s cumulative strike rate and cumulative average during 3 different stages of his career

import cricpy.analytics as ca
frames=["dravidTest2001.csv","dravidTest2004.csv","dravidTest2009.csv"]
names=["Dravid-2001","Dravid-2004","Dravid-2009"]
ca.relativeBatsmanCumulativeAvgRuns(frames,names)



ca.relativeBatsmanCumulativeStrikeRate(frames,names)

2. Analyzing Virat Kohli’s performance against England in England in 2014 and 2018

The analysis below looks at Kohli’s performance against England in ‘away’ venues (England) in 2014 and 2018

import cricpy.analytics as ca
# Get the homeOrAway data for Kohli in Test matches
#df=ca.getPlayerDataHA(253802,tfile="kohliTestHA.csv",type="batting",matchType="Test")

# Get the homeOrAway data for Kohli in Test matches
df=ca.getPlayerDataHA(253802,tfile="kohliTestHA.csv",type="batting",matchType="Test")

# Get the subset if data of Kohli's performance against England in England in 2014
df=ca.getPlayerDataOppnHA(infile="kohliTestHA.csv",outfile="kohliTestEng2014.csv",  opposition=["England"],homeOrAway=["away"],startDate="2014-01-01",endDate="2015-01-01")

# Get the subset if data of Kohli's performance against England in England in 2018
df1=ca.getPlayerDataOppnHA(infile="kohliTestHA.csv",outfile="kohliTestEng2018.csv",
   opposition=["England"],homeOrAway=["away"],startDate="2018-01-01",endDate="2019-01-01")

2a. Kohli’s performance at England grounds in 2014 & 2018

Kohli had a miserable outing to England in 2014 with a string of low scores. In 2018 Kohli pulls himself out of the morass

import cricpy.analytics as ca
ca.batsmanAvgRunsGround("kohliTestEng2014.csv","Kohli-Eng-2014")
ca.batsmanAvgRunsGround("kohliTestEng2018.csv","Kohli-Eng-2018")


2a. Kohli’s cumulative average runs in 2014 & 2018

Kohli’s cumulative average runs in 2014 is in the low 15s, while in 2018 it is 70+. Kohli stamps his class back again and undoes the bad memories of 2014

import cricpy.analytics as ca
ca.batsmanCumulativeAverageRuns("kohliTestEng2014.csv", "Kohli-Eng-2014")

ca.batsmanCumulativeAverageRuns("kohliTestEng2018.csv", "Kohli-Eng-2018")

3a. Compare the performances of Ganguly, Dravid and VVS Laxman against opposition in ‘away’ matches in Tests

The analyses below compares the performances of Sourav Ganguly, Rahul Dravid and VVS Laxman against Australia, South Africa, and England in ‘away’ venues between 01 Jan 2002 to 01 Jan 2008

import cricpy.analytics as ca
#Get the HA data for Ganguly, Dravid and Laxman
#df=ca.getPlayerDataHA(28779,tfile="gangulyTestHA.csv",type="batting",matchType="Test")
#df=ca.getPlayerDataHA(28114,tfile="dravidTestHA.csv",type="batting",matchType="Test")
#df=ca.getPlayerDataHA(30750,tfile="laxmanTestHA.csv",type="batting",matchType="Test")

# Slice the data
df=ca.getPlayerDataOppnHA(infile="gangulyTestHA.csv",outfile="gangulyTestAES2002-08.csv" ,opposition=["Australia", "England", "South Africa"],                        homeOrAway=["away"],startDate="2002-01-01",endDate="2008-01-01")
df=ca.getPlayerDataOppnHA(infile="dravidTestHA.csv",outfile="dravidTestAES2002-08.csv" ,opposition=["Australia", "England", "South Africa"],                        homeOrAway=["away"],startDate="2002-01-01",endDate="2008-01-01")
df=ca.getPlayerDataOppnHA(infile="laxmanTestHA.csv",outfile="laxmanTestAES2002-08.csv",opposition=["Australia", "England", "South Africa"],                       homeOrAway=["away"],startDate="2002-01-01",endDate="2008-01-01")

3b Plot the relative cumulative average runs and relative cumative strike rate

Plot the relative cumulative average runs and relative cumative strike rate of Ganguly, Dravid and Laxman

-Dravid towers over Laxman and Ganguly with respect to cumulative average runs. – Ganguly has a superior strike rate followed by Laxman and then Dravid

import cricpy.analytics as ca
frames=["gangulyTestAES2002-08.csv","dravidTestAES2002-08.csv","laxmanTestAES2002-08.csv"]
names=["GangulyAusEngSA2002-08","DravidAusEngSA2002-08","LaxmanAusEngSA2002-08"]
ca.relativeBatsmanCumulativeAvgRuns(frames,names)

ca.relativeBatsmanCumulativeStrikeRate(frames,names)

4. Compare the ODI performances of Rohit Sharma, Joe Root and Kane Williamson against opposition

Compare the performances of Rohit Sharma, Joe Root and Kane williamson in away & neutral venues against Australia, West Indies and Soouth Africa

  • Joe Root piles us the runs in about 15 matches. Rohit has played far more ODIs than the other two and averages a steady 35+
import cricpy.analytics as ca
# Get the ODI HA data for Rohit, Root and Williamson
#df=ca.getPlayerDataHA(34102,tfile="rohitODIHA.csv",type="batting",matchType="ODI")
#df=ca.getPlayerDataHA(303669,tfile="joerootODIHA.csv",type="batting",matchType="ODI")
#df=ca.getPlayerDataHA(277906,tfile="williamsonODIHA.csv",type="batting",matchType="ODI")

# Subset the data for specific opposition in away and neutral venues
## C:\Users\Ganesh\ANACON~1\lib\site-packages\statsmodels\compat\pandas.py:56: FutureWarning: The pandas.core.datetools module is deprecated and will be removed in a future version. Please use the pandas.tseries module instead.
##   from pandas.core import datetools
df=ca.getPlayerDataOppnHA(infile="rohitODIHA.csv",outfile="rohitODIAusWISA.csv"
                       ,opposition=["Australia", "West Indies", "South Africa"],
                      homeOrAway=["away","neutral"])
df=ca.getPlayerDataOppnHA(infile="joerootODIHA.csv",outfile="joerootODIAusWISA.csv"
                       ,opposition=["Australia", "West Indies", "South Africa"],
                       homeOrAway=["away","neutral"])
df=ca.getPlayerDataOppnHA(infile="williamsonODIHA.csv",outfile="williamsonODIAusWiSA.csv",opposition=["Australia", "West Indies", "South Africa"],                    homeOrAway=["away","neutral"])

4a. Compare cumulative strike rates and cumulative average runs of Rohit, Root and Williamson

The relative cumulative strike rate of all 3 are comparable

import cricpy.analytics as ca
frames=["rohitODIAusWISA.csv","joerootODIAusWISA.csv","williamsonODIAusWiSA.csv"]
names=["Rohit-ODI-AusWISA","Joe Root-ODI-AusWISA","Williamson-ODI-AusWISA"]
ca.relativeBatsmanCumulativeAvgRuns(frames,names)

ca.relativeBatsmanCumulativeStrikeRate(frames,names)

5. Plot the performance of Dhoni in T20s against specific opposition at all venues

Plot the performances of Dhoni against Australia, West Indies, South Africa and England

import cricpy.analytics as ca
# Get the HA T20 data for Dhoni
#df=ca.getPlayerDataHA(28081,tfile="dhoniT20HA.csv",type="batting",matchType="T20")
#Subset the data
df=ca.getPlayerDataOppnHA(infile="dhoniT20HA.csv",outfile="dhoniT20AusWISAEng.csv",opposition=["Australia", "West Indies", "South Africa","England"],                homeOrAway=["all"])

5a. Plot Dhoni’s performances in T20

Note You can use any of cricpy’s functions against the fine grained data

import cricpy.analytics as ca
ca.batsmanAvgRunsOpposition("dhoniT20AusWISAEng.csv","Dhoni")

ca.batsmanAvgRunsGround("dhoniT20AusWISAEng.csv","Dhoni")

ca.batsmanCumulativeStrikeRate("dhoniT20AusWISAEng.csv","Dhoni")

ca.batsmanCumulativeAverageRuns("dhoniT20AusWISAEng.csv","Dhoni")

6. Compute and performances of Anil Kumble, Muralitharan and Warne in ‘away’ test matches

Compute the performances of Kumble, Warne and Maralitharan against New Zealand, West Indies, South Africa and England in pitches that are not ‘home’ pithes

import cricpy.analytics as ca
# Get the bowling data for Kumble, Warne and Muralitharan in Test matches
#df=ca.getPlayerDataHA(30176,tfile="kumbleTestHA.csv",type="bowling",matchType="Test")
#df=ca.getPlayerDataHA(8166,tfile="warneTestHA.csv",type="bowling",matchType="Test")
#df=ca.getPlayerDataHA(49636,tfile="muraliTestHA.csv",type="bowling",matchType="Test")

# Subset the data
df=ca.getPlayerDataOppnHA(infile="kumbleTestHA.csv",outfile="kumbleTest-NZWISAEng.csv",opposition=["New Zealand", "West Indies", "South Africa","England"],
                       homeOrAway=["away"])

df=ca.getPlayerDataOppnHA(infile="warneTestHA.csv",outfile="warneTest-NZWISAEng.csv"
                       ,opposition=["New Zealand", "West Indies", "South Africa","England"], homeOrAway=["away"])

df=ca.getPlayerDataOppnHA(infile="muraliTestHA.csv",outfile="muraliTest-NZWISAEng.csv"
                       ,opposition=["New Zealand", "West Indies", "South Africa","England"], homeOrAway=["away"])

6a. Plot the average wickets of Kumble, Warne and Murali

import cricpy.analytics as ca
ca.bowlerAvgWktsOpposition("kumbleTest-NZWISAEng.csv","Kumble-NZWISAEng-AN")

ca.bowlerAvgWktsOpposition("warneTest-NZWISAEng.csv","Warne-NZWISAEng-AN")

ca.bowlerAvgWktsOpposition("muraliTest-NZWISAEng.csv","Murali-NZWISAEng-AN")

6b. Plot the average wickets in different grounds of Kumble, Warne and Murali

import cricpy.analytics as ca
ca.bowlerAvgWktsGround("kumbleTest-NZWISAEng.csv","Kumble")

ca.bowlerAvgWktsGround("warneTest-NZWISAEng.csv","Warne")

ca.bowlerAvgWktsGround("muraliTest-NZWISAEng.csv","Murali")

6c. Plot the cumulative average wickets and cumulative economy rate of Kumble, Warne and Murali

  • Murali has the best economy rate followed by Kumble and then Warne
  • Again Murali has the best cumulative average wickets followed by Warne and then Kumble
import cricpy.analytics as ca
frames=["kumbleTest-NZWISAEng.csv","warneTest-NZWISAEng.csv","muraliTest-NZWISAEng.csv"]
names=["Kumble","Warne","Murali"]
ca.relativeBowlerCumulativeAvgEconRate(frames,names)

ca.relativeBowlerCumulativeAvgWickets(frames,names)

7. Compute and plot the performances of Bumrah in 2016, 2017 and 2018 in ODIs

import cricpy.analytics as ca
# Get the HA data for Bumrah in ODI in bowling
#df=ca.getPlayerDataHA(625383,tfile="bumrahODIHA.csv",type="bowling",matchType="ODI")

# Slice the data for periods 2016, 2017 and 2018
df=ca.getPlayerDataOppnHA(infile="bumrahODIHA.csv",outfile="bumrahODI2016.csv",
                       startDate="2016-01-01",endDate="2017-01-01")

df=ca.getPlayerDataOppnHA(infile="bumrahODIHA.csv",outfile="bumrahODI2017.csv",
                       startDate="2017-01-01",endDate="2018-01-01")

df=ca.getPlayerDataOppnHA(infile="bumrahODIHA.csv",outfile="bumrahODI2018.csv",
                       startDate="2018-01-01",endDate="2019-01-01")

7a. Compute the performances of Bumrah in 2016, 2017 and 2018

  • Very clearly Bumrah is getting better at his art. His economy rate in 2018 is the best!!!
  • Bumrah has had a very prolific year in 2017. However all the years he seems to be quite effective
import cricpy.analytics as ca
frames=["bumrahODI2016.csv","bumrahODI2017.csv","bumrahODI2018.csv"]
names=["Bumrah-2016","Bumrah-2017","Bumrah-2018"]
ca.relativeBowlerCumulativeAvgEconRate(frames,names)

ca.relativeBowlerCumulativeAvgWickets(frames,names)

8. Compute and plot the performances of Shakib, Bumrah and Jadeja in T20 matches for bowling

import cricpy.analytics as ca
# Get the HA bowling data for Shakib, Bumrah and Jadeja
#df=ca.getPlayerDataHA(56143,tfile="shakibT20HA.csv",type="bowling",matchType="T20")
#df=ca.getPlayerDataHA(625383,tfile="bumrahT20HA.csv",type="bowling",matchType="T20")
#df=ca.getPlayerDataHA(234675,tfile="jadejaT20HA.csv",type="bowling",matchType="T20")

# Slice the data for performances against Sri Lanka, Australia, South Africa and England
df=ca.getPlayerDataOppnHA(infile="shakibT20HA.csv",outfile="shakibT20-SLAusSAEng.csv" ,opposition=["Sri Lanka","Australia", "South Africa","England"],
                       homeOrAway=["all"])
df=ca.getPlayerDataOppnHA(infile="bumrahT20HA.csv",outfile="bumrahT20-SLAusSAEng.csv",opposition=["Sri Lanka","Australia", "South Africa","England"],
                       homeOrAway=["all"])

df=ca.getPlayerDataOppnHA(infile="jadejaT20HA.csv",outfile="jadejaT20-SLAusSAEng.csv"                      ,opposition=["Sri Lanka","Australia", "South Africa","England"],   homeOrAway=["all"])

8a. Compare the relative performances of Shakib, Bumrah and Jadeja

  • Jadeja and Bumrah have comparable economy rates. Shakib is more expensive
  • Shakib pips Bumrah in number of cumulative wickets, though Bumrah is close behind
import cricpy.analytics as ca
frames=["shakibT20-SLAusSAEng.csv","bumrahT20-SLAusSAEng.csv","jadejaT20-SLAusSAEng.csv"]
names=["Shakib-SLAusSAEng","Bumrah-SLAusSAEng","Jadeja-SLAusSAEng"]
ca.relativeBowlerCumulativeAvgEconRate(frames,names)

ca.relativeBowlerCumulativeAvgWickets(frames,names)

Conclusion

By getting the homeOrAway data for players using the profileNo, you can slice and dice the data based on your choice of opposition, whether you want matches that were played at home/away/neutral venues. Finally by specifying the period for which the data has to be subsetted you can create fine grained analysis.

Hope you have a great time with cricpy!!!

Also see
1. My book ‘Cricket analytics with cricketr and cricpy’ is now on Amazon
2. The 3rd paperback & kindle editions of my books on Cricket, now on Amazon
3. Exploring Quantum Gate operations with QCSimulator
4. Deep Learning from first principles in Python, R and Octave – Part 6
5. Natural selection of database technology through the years
6. Pitching yorkpy … short of good length to IPL – Part 1
7. Using Linear Programming (LP) for optimizing bowling change or batting lineup in T20 cricket
8. Practical Machine Learning with R and Python – Part 3

To see all posts click Index of posts

Getting started with Tensorflow, Keras in Python and R

The Pale Blue Dot

“From this distant vantage point, the Earth might not seem of any particular interest. But for us, it’s different. Consider again that dot. That’s here, that’s home, that’s us. On it everyone you love, everyone you know, everyone you ever heard of, every human being who ever was, lived out their lives. The aggregate of our joy and suffering, thousands of confident religions, ideologies, and economic doctrines, every hunter and forager, every hero and coward, every creator and destroyer of civilization, every king and peasant, every young couple in love, every mother and father, hopeful child, inventor and explorer, every teacher of morals, every corrupt politician, every “superstar,” every “supreme leader,” every saint and sinner in the history of our species lived there—on the mote of dust suspended in a sunbeam.”

Carl Sagan

Tensorflow and Keras are Deep Learning frameworks that really simplify a lot of things to the user. If you are familiar with Machine Learning and Deep Learning concepts then Tensorflow and Keras are really a playground to realize your ideas.  In this post I show how you can get started with Tensorflow in both Python and R



Tensorflow in Python

For tensorflow in Python, I found Google’s Colab an ideal environment for running your Deep Learning code. This is an Google’s research project  where you can execute your code  on GPUs, TPUs etc

Tensorflow in R (RStudio)

To execute tensorflow in R (RStudio) you need to install tensorflow and keras as shown below
In this post I show how to get started with Tensorflow and Keras in R.

# Install Tensorflow in RStudio
#install_tensorflow()
# Install Keras
#install_packages("keras")
library(tensorflow)
libary(keras)

This post takes 3 different Machine Learning problems and uses the
Tensorflow/Keras framework to solve it

Note:
You can view the Google Colab notebook at Tensorflow in Python
The RMarkdown file has been published at RPubs and can be accessed
at Getting started with Tensorflow in R

Checkout my book ‘Deep Learning from first principles: Second Edition – In vectorized Python, R and Octave’. My book starts with the implementation of a simple 2-layer Neural Network and works its way to a generic L-Layer Deep Learning Network, with all the bells and whistles. The derivations have been discussed in detail. The code has been extensively commented and included in its entirety in the Appendix sections. My book is available on Amazon as paperback ($14.99) and in kindle version($9.99/Rs449).

1. Multivariate regression with Tensorflow – Python

This code performs multivariate regression using Tensorflow and keras on the advent of Parkinson disease through sound recordings see Parkinson Speech Dataset with Multiple Types of Sound Recordings Data Set . The clinician’s motorUPDRS score has to be predicted from the set of features

In [0]:
# Import tensorflow
import tensorflow as tf
from tensorflow import keras
In [2]:
#Get the data rom the UCI Machine Learning repository
dataset = keras.utils.get_file("parkinsons_updrs.data", "https://archive.ics.uci.edu/ml/machine-learning-databases/parkinsons/telemonitoring/parkinsons_updrs.data")
Downloading data from https://archive.ics.uci.edu/ml/machine-learning-databases/parkinsons/telemonitoring/parkinsons_updrs.data
917504/911261 [==============================] - 0s 0us/step
In [3]:
# Read the CSV file
import pandas as pd
parkinsons = pd.read_csv(dataset, na_values = "?", comment='\t',
                      sep=",", skipinitialspace=True)
print(parkinsons.shape)
print(parkinsons.columns)
#Check if there are any NAs in the rows
parkinsons.isna().sum()
(5875, 22)
Index(['subject#', 'age', 'sex', 'test_time', 'motor_UPDRS', 'total_UPDRS',
       'Jitter(%)', 'Jitter(Abs)', 'Jitter:RAP', 'Jitter:PPQ5', 'Jitter:DDP',
       'Shimmer', 'Shimmer(dB)', 'Shimmer:APQ3', 'Shimmer:APQ5',
       'Shimmer:APQ11', 'Shimmer:DDA', 'NHR', 'HNR', 'RPDE', 'DFA', 'PPE'],
      dtype='object')
Out[3]:
subject#         0
age              0
sex              0
test_time        0
motor_UPDRS      0
total_UPDRS      0
Jitter(%)        0
Jitter(Abs)      0
Jitter:RAP       0
Jitter:PPQ5      0
Jitter:DDP       0
Shimmer          0
Shimmer(dB)      0
Shimmer:APQ3     0
Shimmer:APQ5     0
Shimmer:APQ11    0
Shimmer:DDA      0
NHR              0
HNR              0
RPDE             0
DFA              0
PPE              0
dtype: int64
Note: To see how to create dummy variables see my post Practical Machine Learning with R and Python – Part 2
In [4]:
# Drop the columns subject number as it is not relevant
parkinsons1=parkinsons.drop(['subject#'],axis=1)

# Create dummy variables for sex (M/F)
parkinsons2=pd.get_dummies(parkinsons1,columns=['sex'])
parkinsons2.head()

Out[4]
age test_time motor_UPDRS total_UPDRS Jitter(%) Jitter(Abs) Jitter:RAP Jitter:PPQ5 Jitter:DDP Shimmer Shimmer(dB) Shimmer:APQ3 Shimmer:APQ5 Shimmer:APQ11 Shimmer:DDA NHR HNR RPDE DFA PPE sex_0 sex_1
0 72 5.6431 28.199 34.398 0.00662 0.000034 0.00401 0.00317 0.01204 0.02565 0.230 0.01438 0.01309 0.01662 0.04314 0.014290 21.640 0.41888 0.54842 0.16006 1 0
1 72 12.6660 28.447 34.894 0.00300 0.000017 0.00132 0.00150 0.00395 0.02024 0.179 0.00994 0.01072 0.01689 0.02982 0.011112 27.183 0.43493 0.56477 0.10810 1 0
2 72 19.6810 28.695 35.389 0.00481 0.000025 0.00205 0.00208 0.00616 0.01675 0.181 0.00734 0.00844 0.01458 0.02202 0.020220 23.047 0.46222 0.54405 0.21014 1 0
3 72 25.6470 28.905 35.810 0.00528 0.000027 0.00191 0.00264 0.00573 0.02309 0.327 0.01106 0.01265 0.01963 0.03317 0.027837 24.445 0.48730 0.57794 0.33277 1 0
4 72 33.6420 29.187 36.375 0.00335 0.000020 0.00093 0.00130 0.00278 0.01703 0.176 0.00679 0.00929 0.01819 0.02036 0.011625 26.126 0.47188 0.56122 0.19361 1 0

# Create a training and test data set with 80%/20%
train_dataset = parkinsons2.sample(frac=0.8,random_state=0)
test_dataset = parkinsons2.drop(train_dataset.index)

# Select columns
train_dataset1= train_dataset[['age', 'test_time', 'Jitter(%)', 'Jitter(Abs)',
       'Jitter:RAP', 'Jitter:PPQ5', 'Jitter:DDP', 'Shimmer', 'Shimmer(dB)',
       'Shimmer:APQ3', 'Shimmer:APQ5', 'Shimmer:APQ11', 'Shimmer:DDA', 'NHR',
       'HNR', 'RPDE', 'DFA', 'PPE', 'sex_0', 'sex_1']]
test_dataset1= test_dataset[['age','test_time', 'Jitter(%)', 'Jitter(Abs)',
       'Jitter:RAP', 'Jitter:PPQ5', 'Jitter:DDP', 'Shimmer', 'Shimmer(dB)',
       'Shimmer:APQ3', 'Shimmer:APQ5', 'Shimmer:APQ11', 'Shimmer:DDA', 'NHR',
       'HNR', 'RPDE', 'DFA', 'PPE', 'sex_0', 'sex_1']]
In [7]:
# Generate the statistics of the columns for use in normalization of the data
train_stats = train_dataset1.describe()
train_stats = train_stats.transpose()
train_stats
Out[7]:
count mean std min 25% 50% 75% max
age 4700.0 64.792766 8.870401 36.000000 58.000000 65.000000 72.000000 85.000000
test_time 4700.0 93.399490 53.630411 -4.262500 46.852250 93.405000 139.367500 215.490000
Jitter(%) 4700.0 0.006136 0.005612 0.000830 0.003560 0.004900 0.006770 0.099990
Jitter(Abs) 4700.0 0.000044 0.000036 0.000002 0.000022 0.000034 0.000053 0.000396
Jitter:RAP 4700.0 0.002969 0.003089 0.000330 0.001570 0.002235 0.003260 0.057540
Jitter:PPQ5 4700.0 0.003271 0.003760 0.000430 0.001810 0.002480 0.003460 0.069560
Jitter:DDP 4700.0 0.008908 0.009267 0.000980 0.004710 0.006705 0.009790 0.172630
Shimmer 4700.0 0.033992 0.025922 0.003060 0.019020 0.027385 0.039810 0.268630
Shimmer(dB) 4700.0 0.310487 0.231016 0.026000 0.175000 0.251000 0.363250 2.107000
Shimmer:APQ3 4700.0 0.017125 0.013275 0.001610 0.009190 0.013615 0.020562 0.162670
Shimmer:APQ5 4700.0 0.020151 0.016848 0.001940 0.010750 0.015785 0.023733 0.167020
Shimmer:APQ11 4700.0 0.027508 0.020270 0.002490 0.015630 0.022685 0.032713 0.275460
Shimmer:DDA 4700.0 0.051375 0.039826 0.004840 0.027567 0.040845 0.061683 0.488020
NHR 4700.0 0.032116 0.060206 0.000304 0.010827 0.018403 0.031452 0.748260
HNR 4700.0 21.704631 4.288853 1.659000 19.447750 21.973000 24.445250 37.187000
RPDE 4700.0 0.542549 0.100212 0.151020 0.471235 0.543490 0.614335 0.966080
DFA 4700.0 0.653015 0.070446 0.514040 0.596470 0.643285 0.710618 0.865600
PPE 4700.0 0.219559 0.091506 0.021983 0.156470 0.205340 0.264017 0.731730
sex_0 4700.0 0.681489 0.465948 0.000000 0.000000 1.000000 1.000000 1.000000
sex_1 4700.0 0.318511 0.465948 0.000000 0.000000 0.000000 1.000000 1.000000
In [0]:
# Create the target variable
train_labels = train_dataset.pop('motor_UPDRS')
test_labels = test_dataset.pop('motor_UPDRS')
In [0]:
# Normalize the data by subtracting the mean and dividing by the standard deviation
def normalize(x):
  return (x - train_stats['mean']) / train_stats['std']

# Create normalized training and test data
normalized_train_data = normalize(train_dataset1)
normalized_test_data = normalize(test_dataset1)
In [0]:
# Create a Deep Learning model with keras
model = tf.keras.Sequential([
    keras.layers.Dense(6, activation=tf.nn.relu, input_shape=[len(train_dataset1.keys())]),
    keras.layers.Dense(9, activation=tf.nn.relu),
    keras.layers.Dense(6,activation=tf.nn.relu),
    keras.layers.Dense(1)
  ])

# Use the Adam optimizer with a learning rate of 0.01
optimizer=keras.optimizers.Adam(lr=.01, beta_1=0.9, beta_2=0.999, epsilon=None, decay=0.0, amsgrad=False)

# Set the metrics required to be Mean Absolute Error and Mean Squared Error.For regression, the loss is mean_squared_error
model.compile(loss='mean_squared_error',
                optimizer=optimizer,
                metrics=['mean_absolute_error', 'mean_squared_error'])
In [0]:
# Create a model
history=model.fit(
  normalized_train_data, train_labels,
  epochs=1000, validation_data = (normalized_test_data,test_labels), verbose=0)
In [26]:
hist = pd.DataFrame(history.history)
hist['epoch'] = history.epoch
hist.tail()
Out[26]:
loss mean_absolute_error mean_squared_error val_loss val_mean_absolute_error val_mean_squared_error epoch
995 15.773989 2.936990 15.773988 16.980803 3.028168 16.980803 995
996 15.238623 2.873420 15.238622 17.458752 3.101033 17.458752 996
997 15.437594 2.895500 15.437593 16.926016 2.971508 16.926018 997
998 15.867891 2.943521 15.867892 16.950249 2.985036 16.950249 998
999 15.846878 2.938914 15.846880 17.095623 3.014504 17.095625 999
In [30]:
def plot_history(history):
  hist = pd.DataFrame(history.history)
  hist['epoch'] = history.epoch

  plt.figure()
  plt.xlabel('Epoch')
  plt.ylabel('Mean Abs Error')
  plt.plot(hist['epoch'], hist['mean_absolute_error'],
           label='Train Error')
  plt.plot(hist['epoch'], hist['val_mean_absolute_error'],
           label = 'Val Error')
  plt.ylim([2,5])
  plt.legend()

  plt.figure()
  plt.xlabel('Epoch')
  plt.ylabel('Mean Square Error ')
  plt.plot(hist['epoch'], hist['mean_squared_error'],
           label='Train Error')
  plt.plot(hist['epoch'], hist['val_mean_squared_error'],
           label = 'Val Error')
  plt.ylim([10,40])
  plt.legend()
  plt.show()


plot_history(history)

Observation

It can be seen that the mean absolute error is on an average about +/- 4.0. The validation error also is about the same. This can be reduced by playing around with the hyperparamaters and increasing the number of iterations

1a. Multivariate Regression in Tensorflow – R

# Install Tensorflow in RStudio
#install_tensorflow()
# Install Keras
#install_packages("keras")
library(tensorflow)
library(keras)
library(dplyr)
library(dummies)
## dummies-1.5.6 provided by Decision Patterns
library(tensorflow)
library(keras)

Multivariate regression

This code performs multivariate regression using Tensorflow and keras on the advent of Parkinson disease through sound recordings see Parkinson Speech Dataset with Multiple Types of Sound Recordings Data Set. The clinician’s motorUPDRS score has to be predicted from the set of features.

Read the data

# Download the Parkinson's data from UCI Machine Learning repository
dataset <- read.csv("https://archive.ics.uci.edu/ml/machine-learning-databases/parkinsons/telemonitoring/parkinsons_updrs.data")

# Set the column names
names(dataset) <- c("subject","age", "sex", "test_time","motor_UPDRS","total_UPDRS","Jitter","Jitter.Abs",
                 "Jitter.RAP","Jitter.PPQ5","Jitter.DDP","Shimmer", "Shimmer.dB", "Shimmer.APQ3",
                 "Shimmer.APQ5","Shimmer.APQ11","Shimmer.DDA", "NHR","HNR", "RPDE", "DFA","PPE")

# Remove the column 'subject' as it is not relevant to analysis
dataset1 <- subset(dataset, select = -c(subject))

# Make the column 'sex' as a factor for using dummies
dataset1$sex=as.factor(dataset1$sex)
# Add dummy variables for categorical cariable 'sex'
dataset2 <- dummy.data.frame(dataset1, sep = ".")
## Warning in model.matrix.default(~x - 1, model.frame(~x - 1), contrasts =
## FALSE): non-list contrasts argument ignored
dataset3 <- na.omit(dataset2)

Split the data as training and test in 80/20

## Split data 80% training and 20% test
sample_size <- floor(0.8 * nrow(dataset3))

## set the seed to make your partition reproducible
set.seed(12)
train_index <- sample(seq_len(nrow(dataset3)), size = sample_size)

train_dataset <- dataset3[train_index, ]
test_dataset <- dataset3[-train_index, ]

train_data <- train_dataset %>% select(sex.0,sex.1,age, test_time,Jitter,Jitter.Abs,Jitter.PPQ5,Jitter.DDP,
                              Shimmer, Shimmer.dB,Shimmer.APQ3,Shimmer.APQ11,
                              Shimmer.DDA,NHR,HNR,RPDE,DFA,PPE)

train_labels <- select(train_dataset,motor_UPDRS)
test_data <- test_dataset %>% select(sex.0,sex.1,age, test_time,Jitter,Jitter.Abs,Jitter.PPQ5,Jitter.DDP,
                              Shimmer, Shimmer.dB,Shimmer.APQ3,Shimmer.APQ11,
                              Shimmer.DDA,NHR,HNR,RPDE,DFA,PPE)
test_labels <- select(test_dataset,motor_UPDRS)

Normalize the data

 # Normalize the data by subtracting the mean and dividing by the standard deviation
normalize<-function(x) {
  y<-(x - mean(x)) / sd(x)
  return(y)
}

normalized_train_data <-apply(train_data,2,normalize)
# Convert to matrix
train_labels <- as.matrix(train_labels)
normalized_test_data <- apply(test_data,2,normalize)
test_labels <- as.matrix(test_labels)

Create the Deep Learning Model

model <- keras_model_sequential()
model %>%
  layer_dense(units = 6, activation = 'relu', input_shape = dim(normalized_train_data)[2]) %>%
  layer_dense(units = 9, activation = 'relu') %>%
  layer_dense(units = 6, activation = 'relu') %>%
  layer_dense(units = 1)

# Set the metrics required to be Mean Absolute Error and Mean Squared Error.For regression, the loss is
# mean_squared_error
model %>% compile(
  loss = 'mean_squared_error',
  optimizer = optimizer_rmsprop(),
  metrics = c('mean_absolute_error','mean_squared_error')
)

# Fit the model
# Use the test data for validation
history <- model %>% fit(
  normalized_train_data, train_labels,
  epochs = 30, batch_size = 128,
  validation_data = list(normalized_test_data,test_labels)
)

Plot mean squared error, mean absolute error and loss for training data and test data

plot(history)

Fig1

2. Binary classification in Tensorflow – Python

This is a simple binary classification problem from UCI Machine Learning repository and deals with data on Breast cancer from the Univ. of Wisconsin Breast Cancer Wisconsin (Diagnostic) Data Set bold text

In [31]:
import tensorflow as tf
from tensorflow import keras
import pandas as pd
# Read the data set from UCI ML site
dataset_path = keras.utils.get_file("breast-cancer-wisconsin.data", "https://archive.ics.uci.edu/ml/machine-learning-databases/breast-cancer-wisconsin/breast-cancer-wisconsin.data")
raw_dataset = pd.read_csv(dataset_path, sep=",", na_values = "?", skipinitialspace=True,)
dataset = raw_dataset.copy()

#Check for Null and drop
dataset.isna().sum()
dataset = dataset.dropna()
dataset.isna().sum()

# Set the column names
dataset.columns = ["id","thickness",	"cellsize",	"cellshape","adhesion","epicellsize",
                    "barenuclei","chromatin","normalnucleoli","mitoses","class"]
dataset.head()
Downloading data from https://archive.ics.uci.edu/ml/machine-learning-databases/breast-cancer-wisconsin/breast-cancer-wisconsin.data
24576/19889 [=====================================] - 0s 1us/step
id	thickness	cellsize	cellshape	adhesion	epicellsize	barenuclei	chromatin	normalnucleoli	mitoses	class
0	1002945	5	4	4	5	7	10.0	3	2	1	2
1	1015425	3	1	1	1	2	2.0	3	1	1	2
2	1016277	6	8	8	1	3	4.0	3	7	1	2
3	1017023	4	1	1	3	2	1.0	3	1	1	2
4	1017122	8	10	10	8	7	10.0	9	7	1	4
# Create a training/test set in the ratio 80/20
train_dataset = dataset.sample(frac=0.8,random_state=0)
test_dataset = dataset.drop(train_dataset.index)

# Set the training and test set
train_dataset1= train_dataset[['thickness','cellsize','cellshape','adhesion',
                'epicellsize', 'barenuclei', 'chromatin', 'normalnucleoli','mitoses']]
test_dataset1=test_dataset[['thickness','cellsize','cellshape','adhesion',
                'epicellsize', 'barenuclei', 'chromatin', 'normalnucleoli','mitoses']]
In [34]:
# Generate the stats for each column to be used for normalization
train_stats = train_dataset1.describe()
train_stats = train_stats.transpose()
train_stats
Out[34]:
count mean std min 25% 50% 75% max
thickness 546.0 4.430403 2.812768 1.0 2.0 4.0 6.0 10.0
cellsize 546.0 3.179487 3.083668 1.0 1.0 1.0 5.0 10.0
cellshape 546.0 3.225275 3.005588 1.0 1.0 1.0 5.0 10.0
adhesion 546.0 2.921245 2.937144 1.0 1.0 1.0 4.0 10.0
epicellsize 546.0 3.261905 2.252643 1.0 2.0 2.0 4.0 10.0
barenuclei 546.0 3.560440 3.651946 1.0 1.0 1.0 7.0 10.0
chromatin 546.0 3.483516 2.492687 1.0 2.0 3.0 5.0 10.0
normalnucleoli 546.0 2.875458 3.064305 1.0 1.0 1.0 4.0 10.0
mitoses 546.0 1.609890 1.736762 1.0 1.0 1.0 1.0 10.0
In [0]:
# Create target variables
train_labels = train_dataset.pop('class')
test_labels = test_dataset.pop('class')
In [0]:
# Set the target variables as 0 or 1
train_labels[train_labels==2] =0 # benign
train_labels[train_labels==4] =1 # malignant

test_labels[test_labels==2] =0 # benign
test_labels[test_labels==4] =1 # malignant
In [0]:
# Normalize by subtracting mean and dividing by standard deviation
def normalize(x):
  return (x - train_stats['mean']) / train_stats['std']

# Convert columns to numeric
train_dataset1 = train_dataset1.apply(pd.to_numeric)
test_dataset1 = test_dataset1.apply(pd.to_numeric)

# Normalize
normalized_train_data = normalize(train_dataset1)
normalized_test_data = normalize(test_dataset1)
In [0]:
# Create a model
model = tf.keras.Sequential([
    keras.layers.Dense(6, activation=tf.nn.relu, input_shape=[len(train_dataset1.keys())]),
    keras.layers.Dense(9, activation=tf.nn.relu),
    keras.layers.Dense(6,activation=tf.nn.relu),
    keras.layers.Dense(1)
  ])

# Use the RMSProp optimizer
optimizer = tf.keras.optimizers.RMSprop(0.01)

# Since this is binary classification use binary_crossentropy
model.compile(loss='binary_crossentropy',
                optimizer=optimizer,
                metrics=['acc'])


# Fit a model
history=model.fit(
  normalized_train_data, train_labels,
  epochs=1000, validation_data=(normalized_test_data,test_labels), verbose=0)
In [55]:
hist = pd.DataFrame(history.history)
hist['epoch'] = history.epoch
hist.tail()
loss acc val_loss val_acc epoch
995 0.112499 0.992674 0.454739 0.970588 995
996 0.112499 0.992674 0.454739 0.970588 996
997 0.112499 0.992674 0.454739 0.970588 997
998 0.112499 0.992674 0.454739 0.970588 998
999 0.112499 0.992674 0.454739 0.970588 999
In [58]:
# Plot training and test accuracy
plt.plot(history.history['acc'])
plt.plot(history.history['val_acc'])
plt.title('model accuracy')
plt.ylabel('accuracy')
plt.xlabel('epoch')
plt.legend(['train', 'test'], loc='upper left')
plt.ylim([0.9,1])
plt.show()












# Plot training and test loss
plt.plot(history.history['loss'])
plt.plot(history.history['val_loss'])
plt.title('model loss')
plt.ylabel('loss')
plt.xlabel('epoch')
plt.legend(['train', 'test'], loc='upper left')
plt.ylim([0,0.5])
plt.show()


2a. Binary classification in Tensorflow -R

This is a simple binary classification problem from UCI Machine Learning repository and deals with data on Breast cancer from the Univ. of Wisconsin Breast Cancer Wisconsin (Diagnostic) Data Set

# Read the data for Breast cancer (Wisconsin)
dataset <- read.csv("https://archive.ics.uci.edu/ml/machine-learning-databases/breast-cancer-wisconsin/breast-cancer-wisconsin.data")

# Rename the columns
names(dataset) <- c("id","thickness",   "cellsize", "cellshape","adhesion","epicellsize",
                    "barenuclei","chromatin","normalnucleoli","mitoses","class")

# Remove the columns id and class
dataset1 <- subset(dataset, select = -c(id, class))
dataset2 <- na.omit(dataset1)

# Convert the column to numeric
dataset2$barenuclei <- as.numeric(dataset2$barenuclei)

Normalize the data

train_data <-apply(dataset2,2,normalize)
train_labels <- as.matrix(select(dataset,class))

# Set the target variables as 0 or 1 as it binary classification
train_labels[train_labels==2,]=0
train_labels[train_labels==4,]=1

Create the Deep Learning model

model <- keras_model_sequential()
model %>%
  layer_dense(units = 6, activation = 'relu', input_shape = dim(train_data)[2]) %>%
  layer_dense(units = 9, activation = 'relu') %>%
  layer_dense(units = 6, activation = 'relu') %>%
  layer_dense(units = 1)

# Since this is a binary classification we use binary cross entropy
model %>% compile(
  loss = 'binary_crossentropy',
  optimizer = optimizer_rmsprop(),
  metrics = c('accuracy')  # Metrics is accuracy
)

Fit the model. Use 20% of data for validation

history <- model %>% fit(
  train_data, train_labels,
  epochs = 30, batch_size = 128,
  validation_split = 0.2
)

Plot the accuracy and loss for training and validation data

plot(history)

3. MNIST in Tensorflow – Python

This takes the famous MNIST handwritten digits . It ca be seen that Tensorflow and Keras make short work of this famous problem of the late 1980s

# Download MNIST data
mnist=tf.keras.datasets.mnist
# Set training and test data and labels
(training_images,training_labels),(test_images,test_labels)=mnist.load_data()

print(training_images.shape)
print(test_images.shape)
(60000, 28, 28)
(10000, 28, 28)
In [61]:
# Plot a sample image from MNIST and show contents
import matplotlib.pyplot as plt
plt.imshow(training_images[1])
print(training_images[1])
[[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 51 159 253
159 50 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 48 238 252 252
252 237 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 54 227 253 252 239
233 252 57 6 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 10 60 224 252 253 252 202
84 252 253 122 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 163 252 252 252 253 252 252
96 189 253 167 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 51 238 253 253 190 114 253 228
47 79 255 168 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 48 238 252 252 179 12 75 121 21
0 0 253 243 50 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 38 165 253 233 208 84 0 0 0 0
0 0 253 252 165 0 0 0 0 0]
[ 0 0 0 0 0 0 0 7 178 252 240 71 19 28 0 0 0 0
0 0 253 252 195 0 0 0 0 0]
[ 0 0 0 0 0 0 0 57 252 252 63 0 0 0 0 0 0 0
0 0 253 252 195 0 0 0 0 0]
[ 0 0 0 0 0 0 0 198 253 190 0 0 0 0 0 0 0 0
0 0 255 253 196 0 0 0 0 0]
[ 0 0 0 0 0 0 76 246 252 112 0 0 0 0 0 0 0 0
0 0 253 252 148 0 0 0 0 0]
[ 0 0 0 0 0 0 85 252 230 25 0 0 0 0 0 0 0 0
7 135 253 186 12 0 0 0 0 0]
[ 0 0 0 0 0 0 85 252 223 0 0 0 0 0 0 0 0 7
131 252 225 71 0 0 0 0 0 0]
[ 0 0 0 0 0 0 85 252 145 0 0 0 0 0 0 0 48 165
252 173 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 86 253 225 0 0 0 0 0 0 114 238 253
162 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 85 252 249 146 48 29 85 178 225 253 223 167
56 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 85 252 252 252 229 215 252 252 252 196 130 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 28 199 252 252 253 252 252 233 145 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 25 128 252 253 252 141 37 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]
[ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0]]


# Normalize the images by dividing by 255.0
training_images = training_images/255.0
test_images = test_images/255.0

# Create a Sequential Keras model
model = tf.keras.models.Sequential([tf.keras.layers.Flatten(),
                                   tf.keras.layers.Dense(1024,activation=tf.nn.relu),
                                   tf.keras.layers.Dense(10,activation=tf.nn.softmax)])
model.compile(optimizer='adam',loss='sparse_categorical_crossentropy',metrics=['accuracy'])
In [68]:
history=model.fit(training_images,training_labels,validation_data=(test_images, test_labels), epochs=5, verbose=1)
Train on 60000 samples, validate on 10000 samples
Epoch 1/5
60000/60000 [==============================] - 17s 291us/sample - loss: 0.0020 - acc: 0.9999 - val_loss: 0.0719 - val_acc: 0.9810
Epoch 2/5
60000/60000 [==============================] - 17s 284us/sample - loss: 0.0021 - acc: 0.9998 - val_loss: 0.0705 - val_acc: 0.9821
Epoch 3/5
60000/60000 [==============================] - 17s 286us/sample - loss: 0.0017 - acc: 0.9999 - val_loss: 0.0729 - val_acc: 0.9805
Epoch 4/5
60000/60000 [==============================] - 17s 284us/sample - loss: 0.0014 - acc: 0.9999 - val_loss: 0.0762 - val_acc: 0.9804
Epoch 5/5
60000/60000 [==============================] - 17s 280us/sample - loss: 0.0015 - acc: 0.9999 - val_loss: 0.0735 - val_acc: 0.9812

Fig 1

Fig 2

















MNIST in Tensorflow – R

The following code uses Tensorflow to learn MNIST’s handwritten digits ### Load MNIST data

mnist <- dataset_mnist()
x_train <- mnist$train$x
y_train <- mnist$train$y
x_test <- mnist$test$x
y_test <- mnist$test$y

Reshape and rescale

# Reshape the array
x_train <- array_reshape(x_train, c(nrow(x_train), 784))
x_test <- array_reshape(x_test, c(nrow(x_test), 784))
# Rescale
x_train <- x_train / 255
x_test <- x_test / 255

Convert out put to One Hot encoded format

y_train <- to_categorical(y_train, 10)
y_test <- to_categorical(y_test, 10)

Fit the model

Use the softmax activation for recognizing 10 digits and categorical cross entropy for loss

model <- keras_model_sequential()
model %>%
  layer_dense(units = 256, activation = 'relu', input_shape = c(784)) %>%
  layer_dense(units = 128, activation = 'relu') %>%
  layer_dense(units = 10, activation = 'softmax') # Use softmax

model %>% compile(
  loss = 'categorical_crossentropy',
  optimizer = optimizer_rmsprop(),
  metrics = c('accuracy')
)

Fit the model

Note: A smaller number of epochs has been used. For better performance increase number of epochs

history <- model %>% fit(
  x_train, y_train,
  epochs = 5, batch_size = 128,
  validation_data = list(x_test,y_test)
)

Analyze cricket players and cricket teams with cricpy template

Introduction

This post shows how you can analyze batsmen, bowlers see Introducing cricpy:A python package to analyze performances of cricketers and cricket teams see Cricpy adds team analytics to its arsenal! in Test, ODI and T20s using cricpy templates, with data from ESPN Cricinfo.

The cricpy package

A. Analyzing batsmen and bowlers in Test, ODI and T20s

The data for a particular player can be obtained with the getPlayerData() function. To do you will need to go to ESPN CricInfo Player and type in the name of the player for e.g Rahul Dravid, Virat Kohli, Alastair Cook etc. This will bring up a page which have the profile number for the player e.g. for Rahul Dravid this would be http://www.espncricinfo.com/india/content/player/28114.html. Hence, Dravid’s profile is 28114. This can be used to get the data for Rahul Dravid as shown below

and select the player you want Please mindful of the ESPN Cricinfo Terms of Use

My posts on Cripy were

  1. Introducing cricpy:A python package to analyze performances of cricketers
  2. Cricpy takes a swing at the ODIs
  3. Cricpy takes guard for the Twenty20s

You can clone/download this cricpy template for your own analysis of players. This can be done using RStudio or IPython notebooks

The cricpy package is now available with pip install cricpy!!!

1 Importing cricpy – Python

# Install the package
# Do a pip install cricpy
# Import cricpy
import cricpy.analytics as ca
## C:\Users\Ganesh\ANACON~1\lib\site-packages\statsmodels\compat\pandas.py:56: FutureWarning: The pandas.core.datetools module is deprecated and will be removed in a future version. Please use the pandas.tseries module instead.
##   from pandas.core import datetools

2. Invoking functions with Python package cricpy

import cricpy.analytics as ca
#ca.batsman4s("aplayer.csv","A Player")

3. Getting help from cricpy – Python

import cricpy.analytics as ca
#help(ca.getPlayerData)

The details below will introduce the different functions that are available in cricpy.

4. Get the player data for a player using the function getPlayerData()

Important Note This needs to be done only once for a player. This function stores the player’s data in the specified CSV file (for e.g. dravid.csv as above) which can then be reused for all other functions). Once we have the data for the players many analyses can be done. This post will use the stored CSV file obtained with a prior getPlayerData for all subsequent analyses

4a. For Test players

import cricpy.analytics as ca
#player1 =ca.getPlayerData(profileNo1,dir="..",file="player1.csv",type="batting",homeOrAway=[1,2], result=[1,2,4])
#player1 =ca.getPlayerData(profileNo2,dir="..",file="player2.csv",type="batting",homeOrAway=[1,2], result=[1,2,4])

4b. For ODI players

import cricpy.analytics as ca
#player1 =ca.getPlayerDataOD(profileNo1,dir="..",file="player1.csv",type="batting")
#player1 =ca.getPlayerDataOD(profileNo2,dir="..",file="player2.csv",type="batting"")

4c For T20 players

import cricpy.analytics as ca
#player1 =ca.getPlayerDataTT(profileNo1,dir="..",file="player1.csv",type="batting")
#player1 =ca.getPlayerDataTT(profileNo2,dir="..",file="player2.csv",type="batting"")

5 A Player’s performance – Basic Analyses

The 3 plots below provide the following for Rahul Dravid

  1. Frequency percentage of runs in each run range over the whole career
  2. Mean Strike Rate for runs scored in the given range
  3. A histogram of runs frequency percentages in runs ranges

import cricpy.analytics as ca
import matplotlib.pyplot as plt


#ca.batsmanRunsFreqPerf("aplayer.csv","A Player")
#ca.batsmanMeanStrikeRate("aplayer.csv","A Player")
#ca.batsmanRunsRanges("aplayer.csv","A Player")

6. More analyses

This gives details on the batsmen’s 4s, 6s and dismissals

import cricpy.analytics as ca

#ca.batsman4s("aplayer.csv","A Player")
#ca.batsman6s("aplayer.csv","A Player")
#ca.batsmanDismissals("aplayer.csv","A Player")

# The below function is for ODI and T20 only
#ca.batsmanScoringRateODTT("./kohli.csv","Virat Kohli")

7. 3D scatter plot and prediction plane

The plots below show the 3D scatter plot of Runs versus Balls Faced and Minutes at crease. A linear regression plane is then fitted between Runs and Balls Faced + Minutes at crease

import cricpy.analytics as ca
#ca.battingPerf3d("aplayer.csv","A Player")

8. Average runs at different venues

The plot below gives the average runs scored at different grounds. The plot also the number of innings at each ground as a label at x-axis.

import cricpy.analytics as ca
#ca.batsmanAvgRunsGround("aplayer.csv","A Player")

9. Average runs against different opposing teams

This plot computes the average runs scored against different countries.

import cricpy.analytics as ca

#ca.batsmanAvgRunsOpposition("aplayer.csv","A Player")

10. Highest Runs Likelihood

The plot below shows the Runs Likelihood for a batsman.

import cricpy.analytics as ca

#ca.batsmanRunsLikelihood("aplayer.csv","A Player")

11. A look at the Top 4 batsman

Choose any number of players

1.Player1 2.Player2 3.Player3 …

The following plots take a closer at their performances. The box plots show the median the 1st and 3rd quartile of the runs

12. Box Histogram Plot

This plot shows a combined boxplot of the Runs ranges and a histogram of the Runs Frequency

import cricpy.analytics as ca

#ca.batsmanPerfBoxHist("aplayer001.csv","A Player001")
#ca.batsmanPerfBoxHist("aplayer002.csv","A Player002")
#ca.batsmanPerfBoxHist("aplayer003.csv","A Player003")
#ca.batsmanPerfBoxHist("aplayer004.csv","A Player004")

13. get Player Data special

import cricpy.analytics as ca

#player1sp = ca.getPlayerDataSp(profile1,tdir=".",tfile="player1sp.csv",ttype="batting")
#player2sp = ca.getPlayerDataSp(profile2,tdir=".",tfile="player2sp.csv",ttype="batting")
#player3sp = ca.getPlayerDataSp(profile3,tdir=".",tfile="player3sp.csv",ttype="batting")
#player4sp = ca.getPlayerDataSp(profile4,tdir=".",tfile="player4sp.csv",ttype="batting")

14. Contribution to won and lost matches

Note:This can only be used for Test matches

import cricpy.analytics as ca

#ca.batsmanContributionWonLost("player1sp.csv","A Player001")
#ca.batsmanContributionWonLost("player2sp.csv","A Player002")
#ca.batsmanContributionWonLost("player3sp.csv","A Player003")
#ca.batsmanContributionWonLost("player4sp.csv","A Player004")

15. Performance at home and overseas

Note:This can only be used for Test matches This function also requires the use of getPlayerDataSp() as shown above

import cricpy.analytics as ca
#ca.batsmanPerfHomeAway("player1sp.csv","A Player001")
#ca.batsmanPerfHomeAway("player2sp.csv","A Player002")
#ca.batsmanPerfHomeAway("player3sp.csv","A Player003")
#ca.batsmanPerfHomeAway("player4sp.csv","A Player004")

16 Moving Average of runs in career

import cricpy.analytics as ca

#ca.batsmanMovingAverage("aplayer001.csv","A Player001")
#ca.batsmanMovingAverage("aplayer002.csv","A Player002")
#ca.batsmanMovingAverage("aplayer003.csv","A Player003")
#ca.batsmanMovingAverage("aplayer004.csv","A Player004")

17 Cumulative Average runs of batsman in career

This function provides the cumulative average runs of the batsman over the career.

import cricpy.analytics as ca

#ca.batsmanCumulativeAverageRuns("aplayer001.csv","A Player001")
#ca.batsmanCumulativeAverageRuns("aplayer002.csv","A Player002")
#ca.batsmanCumulativeAverageRuns("aplayer003.csv","A Player003")
#ca.batsmanCumulativeAverageRuns("aplayer004.csv","A Player004")

18 Cumulative Average strike rate of batsman in career

.

import cricpy.analytics as ca
#ca.batsmanCumulativeStrikeRate("aplayer001.csv","A Player001")
#ca.batsmanCumulativeStrikeRate("aplayer002.csv","A Player002")
#ca.batsmanCumulativeStrikeRate("aplayer003.csv","A Player003")
#ca.batsmanCumulativeStrikeRate("aplayer004.csv","A Player004")

19 Future Runs forecast

import cricpy.analytics as ca

#ca.batsmanPerfForecast("aplayer001.csv","A Player001")

20 Relative Batsman Cumulative Average Runs

The plot below compares the Relative cumulative average runs of the batsman for each of the runs ranges of 10 and plots them.

import cricpy.analytics as ca

frames = ["aplayer1.csv","aplayer2.csv","aplayer3.csv","aplayer4.csv"]
names = ["A Player1","A Player2","A Player3","A Player4"]
#ca.relativeBatsmanCumulativeAvgRuns(frames,names)

21 Plot of 4s and 6s

import cricpy.analytics as ca

frames = ["aplayer1.csv","aplayer2.csv","aplayer3.csv","aplayer4.csv"]
names = ["A Player1","A Player2","A Player3","A Player4"]
#ca.batsman4s6s(frames,names)

22. Relative Batsman Strike Rate

The plot below gives the relative Runs Frequency Percetages for each 10 run bucket. The plot below show

import cricpy.analytics as ca

frames = ["aplayer1.csv","aplayer2.csv","aplayer3.csv","aplayer4.csv"]
names = ["A Player1","A Player2","A Player3","A Player4"]
#ca.relativeBatsmanCumulativeStrikeRate(frames,names)

23. 3D plot of Runs vs Balls Faced and Minutes at Crease

The plot is a scatter plot of Runs vs Balls faced and Minutes at Crease. A prediction plane is fitted

import cricpy.analytics as ca
#ca.battingPerf3d("aplayer001.csv","A Player001")
#ca.battingPerf3d("aplayer002.csv","A Player002")
#ca.battingPerf3d("aplayer003.csv","A Player003")
#ca.battingPerf3d("aplayer004.csv","A Player004")

24. Predicting Runs given Balls Faced and Minutes at Crease

A multi-variate regression plane is fitted between Runs and Balls faced +Minutes at crease.

import cricpy.analytics as ca

import numpy as np
import pandas as pd

BF = np.linspace( 10, 400,15)
Mins = np.linspace( 30,600,15)
newDF= pd.DataFrame({'BF':BF,'Mins':Mins})

#aplayer = ca.batsmanRunsPredict("aplayer.csv",newDF,"A Player")
#print(aplayer)

The fitted model is then used to predict the runs that the batsmen will score for a given Balls faced and Minutes at crease.

25 Analysis of Top 3 wicket takers

Take any number of bowlers from either Test, ODI or T20

  1. Bowler1
  2. Bowler2
  3. Bowler3 …

26. Get the bowler’s data (Test)

This plot below computes the percentage frequency of number of wickets taken for e.g 1 wicket x%, 2 wickets y% etc and plots them as a continuous line

import cricpy.analytics as ca

#abowler1 =ca.getPlayerData(profileNo1,dir=".",file="abowler1.csv",type="bowling",homeOrAway=[1,2], result=[1,2,4])
#abowler2 =ca.getPlayerData(profileNo2,dir=".",file="abowler2.csv",type="bowling",homeOrAway=[1,2], result=[1,2,4])
#abowler3 =ca.getPlayerData(profile3,dir=".",file="abowler3.csv",type="bowling",homeOrAway=[1,2], result=[1,2,4])

26b For ODI bowlers

import cricpy.analytics as ca

#abowler1 =ca.getPlayerDataOD(profileNo1,dir=".",file="abowler1.csv",type="bowling")
#abowler2 =ca.getPlayerDataOD(profileNo2,dir=".",file="abowler2.csv",type="bowling")
#abowler3 =ca.getPlayerDataOD(profile3,dir=".",file="abowler3.csv",type="bowling")

26c For T20 bowlers

import cricpy.analytics as ca

#abowler1 =ca.getPlayerDataTT(profileNo1,dir=".",file="abowler1.csv",type="bowling")
#abowler2 =ca.getPlayerDataTT(profileNo2,dir=".",file="abowler2.csv",type="bowling")
#abowler3 =ca.getPlayerDataTT(profile3,dir=".",file="abowler3.csv",type="bowling")

27. Wicket Frequency Plot

This plot below plots the frequency of wickets taken for each of the bowlers

import cricpy.analytics as ca

#ca.bowlerWktsFreqPercent("abowler1.csv","A Bowler1")
#ca.bowlerWktsFreqPercent("abowler2.csv","A Bowler2")
#ca.bowlerWktsFreqPercent("abowler3.csv","A Bowler3")

28. Wickets Runs plot

The plot below create a box plot showing the 1st and 3rd quartile of runs conceded versus the number of wickets taken

import cricpy.analytics as ca

#ca.bowlerWktsRunsPlot("abowler1.csv","A Bowler1")
#ca.bowlerWktsRunsPlot("abowler2.csv","A Bowler2")
#ca.bowlerWktsRunsPlot("abowler3.csv","A Bowler3")

29 Average wickets at different venues

The plot gives the average wickets taken bat different venues.

import cricpy.analytics as ca

#ca.bowlerAvgWktsGround("abowler1.csv","A Bowler1")
#ca.bowlerAvgWktsGround("abowler2.csv","A Bowler2")
#ca.bowlerAvgWktsGround("abowler3.csv","A Bowler3")

30 Average wickets against different opposition

The plot gives the average wickets taken against different countries.

import cricpy.analytics as ca

#ca.bowlerAvgWktsOpposition("abowler1.csv","A Bowler1")
#ca.bowlerAvgWktsOpposition("abowler2.csv","A Bowler2")
#ca.bowlerAvgWktsOpposition("abowler3.csv","A Bowler3")

31 Wickets taken moving average

import cricpy.analytics as ca

#ca.bowlerMovingAverage("abowler1.csv","A Bowler1")
#ca.bowlerMovingAverage("abowler2.csv","A Bowler2")
#ca.bowlerMovingAverage("abowler3.csv","A Bowler3")

32 Cumulative average wickets taken

The plots below give the cumulative average wickets taken by the bowlers.

import cricpy.analytics as ca

#ca.bowlerCumulativeAvgWickets("abowler1.csv","A Bowler1")
#ca.bowlerCumulativeAvgWickets("abowler2.csv","A Bowler2")
#ca.bowlerCumulativeAvgWickets("abowler3.csv","A Bowler3")

33 Cumulative average economy rate

The plots below give the cumulative average economy rate of the bowlers.

import cricpy.analytics as ca

#ca.bowlerCumulativeAvgEconRate("abowler1.csv","A Bowler1")
#ca.bowlerCumulativeAvgEconRate("abowler2.csv","A Bowler2")
#ca.bowlerCumulativeAvgEconRate("abowler3.csv","A Bowler3")

34 Future Wickets forecast

import cricpy.analytics as ca
#ca.bowlerPerfForecast("abowler1.csv","A bowler1")

35 Get player data special

import cricpy.analytics as ca

#abowler1sp =ca.getPlayerDataSp(profile1,tdir=".",tfile="abowler1sp.csv",ttype="bowling")
#abowler2sp =ca.getPlayerDataSp(profile2,tdir=".",tfile="abowler2sp.csv",ttype="bowling")
#abowler3sp =ca.getPlayerDataSp(profile3,tdir=".",tfile="abowler3sp.csv",ttype="bowling")

36 Contribution to matches won and lost

Note:This can be done only for Test cricketers

import cricpy.analytics as ca

#ca.bowlerContributionWonLost("abowler1sp.csv","A Bowler1")
#ca.bowlerContributionWonLost("abowler2sp.csv","A Bowler2")
#ca.bowlerContributionWonLost("abowler3sp.csv","A Bowler3")

37 Performance home and overseas

Note:This can be done only for Test cricketers

import cricpy.analytics as ca

#ca.bowlerPerfHomeAway("abowler1sp.csv","A Bowler1")
#ca.bowlerPerfHomeAway("abowler2sp.csv","A Bowler2")
#ca.bowlerPerfHomeAway("abowler3sp.csv","A Bowler3")

38 Relative cumulative average economy rate of bowlers

import cricpy.analytics as ca

frames = ["abowler1.csv","abowler2.csv","abowler3.csv"]
names = ["A Bowler1","A Bowler2","A Bowler3"]
#ca.relativeBowlerCumulativeAvgEconRate(frames,names)

39 Relative Economy Rate against wickets taken

import cricpy.analytics as ca

frames = ["abowler1.csv","abowler2.csv","abowler3.csv"]
names = ["A Bowler1","A Bowler2","A Bowler3"]
#ca.relativeBowlingER(frames,names)

40 Relative cumulative average wickets of bowlers in career

import cricpy.analytics as ca
frames = ["abowler1.csv","abowler2.csv","abowler3.csv"]
names = ["A Bowler1","A Bowler2","A Bowler3"]
#ca.relativeBowlerCumulativeAvgWickets(frames,names)

B. Analyzing cricket teams in Test, ODI and T20s

The following functions will get the team data for Tests, ODI and T20s

1a. Get Test team data

import cricpy.analytics as ca
#country1Test= ca.getTeamDataHomeAway(dir=".",teamView="bat",matchType="Test",file="country1Test.csv",save=True,teamName="Country1")
#country2Test= ca.getTeamDataHomeAway(dir=".",teamView="bat",matchType="Test",file="country2Test.csv",save=True,teamName="Country2")
#country3Test= ca.getTeamDataHomeAway(dir=".",teamView="bat",matchType="Test",file="country3Test.csv",save=True,teamName="Country3")

1b. Get ODI team data

import cricpy.analytics as ca
#team1ODI=  ca.getTeamDataHomeAway(dir=".",matchType="ODI",file="team1ODI.csv",save=True,teamName="team1")
#team2ODI=  ca.getTeamDataHomeAway(dir=".",matchType="ODI",file="team2ODI.csv",save=True,teamName="team2")
#team3ODI=  ca.getTeamDataHomeAway(dir=".",matchType="ODI",file="team3ODI.csv",save=True,teamName="team3")

1c. Get T20 team data

import cricpy.analytics as ca
#team1T20 = ca.getTeamDataHomeAway(matchType="T20",file="team1T20.csv",save=True,teamName="team1")
#team2T20 = ca.getTeamDataHomeAway(matchType="T20",file="team2T20.csv",save=True,teamName="team2")
#team3T20 = ca.getTeamDataHomeAway(matchType="T20",file="team3T20.csv",save=True,teamName="team3")

2a. Test – Analyzing test performances against opposition

import cricpy.analytics as ca
# Get the performance of Indian test team against all teams at all venues as a dataframe
#df = ca.teamWinLossStatusVsOpposition("country1Test.csv",teamName="Country1",opposition=["all"],homeOrAway=["all"],matchType="Test",plot=False)
#print(df.head())
# Plot the performance of Country1 Test team  against all teams at all venues
#ca.teamWinLossStatusVsOpposition("country1Test.csv",teamName="Country1",opposition=["all"],homeOrAway=["all"],matchType="Test",plot=True)
# Plot the performance of Country1 Test team  against specific teams at home/away venues
#ca.teamWinLossStatusVsOpposition("country1Test.csv",teamName="Country1",opposition=["Country2","Country3","Country4"],homeOrAway=["home","away","neutral"],matchType="Test",plot=True)

2b. Test – Analyzing test performances against opposition at different grounds

import cricpy.analytics as ca
# Get the performance of Indian test team against all teams at all venues as a dataframe
#df = ca.teamWinLossStatusAtGrounds("country1Test.csv",teamName="Country1",opposition=["all"],homeOrAway=["all"],matchType="Test",plot=False)
#df.head()
# Plot the performance of Country1 Test team  against all teams at all venues
#ca.teamWinLossStatusAtGrounds("country1Test.csv",teamName="Country1",opposition=["all"],homeOrAway=["all"],matchType="Test",plot=True)
# Plot the performance of Country1 Test team  against specific teams at home/away venues
#ca.teamWinLossStatusAtGrounds("country1Test.csv",teamName="Country1",opposition=["Country2","Country3","Country4"],homeOrAway=["home","away","neutral"],matchType="Test",plot=True)

2c. Test – Plot time lines of wins and losses

import cricpy.analytics as ca
#ca.plotTimelineofWinsLosses("country1Test.csv",team="Country1",opposition=["all"], #startDate="1970-01-01",endDate="2017-01-01")
#ca.plotTimelineofWinsLosses("country1Test.csv",team="Country1",opposition=["Country2","Count#ry3","Country4"], homeOrAway=["home",away","neutral"], startDate=<start Date> #,endDate=<endDate>)

3a. ODI – Analyzing test performances against opposition

import cricpy.analytics as ca
#df = ca.teamWinLossStatusVsOpposition("team1ODI.csv",teamName="Team1",opposition=["all"],homeOrAway=["all"],matchType="ODI",plot=False)
#print(df.head())
# Plot the performance of team1  in ODIs against Sri Lanka, India at all venues
#ca.teamWinLossStatusVsOpposition("team1ODI.csv",teamName="Team1",opposition=["all"],homeOrAway=[all"],matchType="ODI",plot=True)
# Plot the performance of Team1 ODI team  against specific teams at home/away venues
#ca.teamWinLossStatusVsOpposition("team1ODI.csv",teamName="Team1",opposition=["Team2","Team3","Team4"],homeOrAway="home","away","neutral"],matchType="ODI",plot=True)

3b. ODI – Analyzing test performances against opposition at different venues

import cricpy.analytics as ca
#df = ca.teamWinLossStatusAtGrounds("team1ODI.csv",teamName="Team1",opposition=["all"],homeOrAway=["all"],matchType="ODI",plot=False)
#print(df.head())
# Plot the performance of Team1s in ODIs specific ODI teams at all venues
#ca.teamWinLossStatusAtGrounds("team1ODI.csv",teamName="Team1",opposition=["all"],homeOrAway=[all"],matchType="ODI",plot=True)
# Plot the performance of Team1 against specific ODI teams at home/away venues
#ca.teamWinLossStatusAtGrounds("team1ODI.csv",teamName="Team1",opposition=["Team2","Team3","Team4"],homeOrAway=["home","away","neutral"],matchType="ODI",plot=True)

3c. ODI – Plot time lines of wins and losses

import cricpy.analytics as ca
#Plot the time line of wins/losses of Bangladesh ODI team between 2 dates all venues
#ca.plotTimelineofWinsLosses("team1ODI.csv",team="Team1",startDate=<start date> ,endDa#te=<end date>,matchType="ODI")
#Plot the time line of wins/losses against specific opposition between 2 dates
#ca.plotTimelineofWinsLosses("team1ODI.csv",team="Team1",opposition=["Team2","Team2"], homeOrAway=["home",away","neutral"], startDate=<start date>,endDate=<end date> ,matchType="ODI")

4a. T20 – Analyzing test performances against opposition

import cricpy.analytics as ca
#df = ca.teamWinLossStatusVsOpposition("teamT20.csv",teamName="Team1",opposition=["all"],homeOrAway=["all"],matchType="T20",plot=False)
#print(df.head())
# Plot the performance of Team1 in T20s  against  all opposition at all venues
#ca.teamWinLossStatusVsOpposition("teamT20.csv",teamName="Team1",opposition=["all"],homeOrAway=[all"],matchType="T20",plot=True)
# Plot the performance of T20 Test team  against specific teams at home/away venues
#ca.teamWinLossStatusVsOpposition("teamT20.csv",teamName="Team1",opposition=["Team2","Team3","Team4"],homeOrAway=["home","away","neutral"],matchType="T20",plot=True)

4b. T20 – Analyzing test performances against opposition at different venues

import cricpy.analytics as ca
#df = ca.teamWinLossStatusAtGrounds("teamT20.csv",teamName="Team1",opposition=["all"],homeOrAway=["all"],matchType="T20",plot=False)
#df.head()
# Plot the performance of Team1s in ODIs specific ODI teams at all venues
#ca.teamWinLossStatusAtGrounds("teamT20.csv",teamName="Team1",opposition=["all"],homeOrAway=["all"],matchType="T20",plot=True)
# Plot the performance of Team1 against specific ODI teams at home/away venues
#ca.teamWinLossStatusAtGrounds("teamT20.csv",teamName="Team1",opposition=["Team2","Team3","Team4"],homeOrAway=["home","away","neutral"],matchType="T20",plot=True)

4c. T20 – Plot time lines of wins and losses

import cricpy.analytics as ca
#Plot the time line of wins/losses of Bangladesh ODI team between 2 dates all venues
#ca.plotTimelineofWinsLosses("teamT20.csv",team="Team1",startDate=<start date> ,endDa#te=<end date>,matchType="T20")
#Plot the time line of wins/losses against specific opposition between 2 dates
#ca.plotTimelineofWinsLosses("teamT20.csv",team="Team1",opposition=c("Team2","Team2"), homeOrAway=c("home",away","neutral"), startDate=<start date>,endDate=<end date> ,matchType="T20")

Conclusion

Key Findings

Analysis of batsman

Analysis of bowlers

Analysis of teams

Have fun with cripy!!!

Cricpy adds team analytics to its arsenal!!

I can’t sit still and see another man slaving and working. I want to get up and superintend, and walk round with my hands in my pockets, and tell him what to do. It is my energetic nature. I can’t help it.

It always does seem to me that I am doing more work than I should do. It is not that I object to the work, mind you; I like work: it fascinates me. I can sit and look at it for hours. I love to keep it by me: the idea of getting rid of it nearly breaks my heart.

Let your boat of life be light, packed with only what you need – a homely home and simple pleasures, one or two friends, worth the name, someone to love and someone to love you, a cat, a dog, and a pipe or two, enough to eat and enough to wear, and a little more than enough to drink; for thirst is a dangerous thing.

                Three Men in a boat by Jerome K Jerome


Introduction

Cricpy, the python avatar of my R package was born about a 9 months back see Introducing cricpy:A python package to analyze performances of cricketers. Cricpy, like its R twin, can analyze performance of batsmen & bowlers in Test, ODI and T20 formats. About a week and a half back, I added team analytics to my R package cricketr see Cricketr adds team analytics to its repertoire!!!. If cricketr has team analysis functions, then can cricpy be far behind? So, I have included the same 8 functions which can perform Team analytics into cricpy also. Team performance analysis can be done for Test, ODI and T20 matches.

This package uses the statistics info available in ESPN Cricinfo Statsguru. The current version of this package can handle all formats of the game including Test, ODI and Twenty20 cricket.

You should be able to install the package using pip install cricpy. Please be mindful of ESPN Cricinfo Terms of Use

There are 5 functions which are used internally 1) getTeamData b) getTeamNumber c) getMatchType d) getTeamDataHomeAway e) cleanTeamData

and the external functions which a) teamWinLossStatusVsOpposition b) teamWinLossStatusAtGrounds c) plotTimelineofhttps://drive.google.com/file/d/1l4nQsRZ0C2FyPosigZmo0t-kC2xZZ_wl/view?usp=sharingWinsLosses

All the above functions are common to Test, ODI and T20 teams

The data for a particular Team can be obtained with the getTeamDataHomeAway() function from the package. This will return a dataframe of the team’s win/loss status at home and away venues over a period of time. This can be saved as a CSV file. Once this is done, you can use this CSV file for all subsequent analysis

This post has been published at Rpubs at teamAnalyticsCricpy You can download the PDF version of this post at teamAnalyticsCricpy

As before you can get the help for any of the cricpy functions as below

import cricpy.analytics as ca
help(ca.teamWinLossStatusAtGrounds)
## Help on function teamWinLossStatusAtGrounds in module cricpy.analytics:
##
## teamWinLossStatusAtGrounds(file, teamName, opposition=['all'], homeOrAway=['all'], matchType='Test', plot=False)
##     Compute the wins/losses/draw/tied etc for a Team in Test, ODI or T20 at venues
##
##     Description
##
##     This function computes the won,lost,draw,tied or no result for a team against other teams in home/away or neutral venues and either returns a dataframe or plots it for grounds
##
##     Usage
##
##     teamWinLossStatusAtGrounds(file,teamName,opposition=["all"],homeOrAway=["all"],
##                   matchType="Test",plot=FALSE)
##     Arguments
##
##     file
##     The CSV file for which the plot is required
##     teamName
##     The name of the team for which plot is required
##     opposition
##     Opposition is a vector namely ["all")] or ["Australia", "India", "England"]
##     homeOrAway
##     This parameter is a vector which is either ["all")] or a vector of venues ["home","away","neutral"]
##     matchType
##     Match type - Test, ODI or T20
##     plot
##     If plot=FALSE then a data frame is returned, If plot=TRUE then a plot is generated
##     Value
##
##     None
##
##     Note
##
##     Maintainer: Tinniam V Ganesh tvganesh.85@gmail.com
##
##     Author(s)
##
##     Tinniam V Ganesh
##
##     References
##
##     http://www.espncricinfo.com/ci/content/stats/index.html
##     https://gigadom.in/
##     See Also
##
##     teamWinLossStatusVsOpposition teamWinLossStatusAtGrounds plotTimelineofWinsLosses
##
##     Examples
##
##     ## Not run:
##     #Get the team data for India for Tests
##
##     df =getTeamDataHomeAway(teamName="India",file="indiaOD.csv",matchType="ODI")
##     ca.teamWinLossStatusAtGrounds("india.csv",teamName="India",opposition=c("Australia","England","India"),
##                               homeOrAway=c("home","away"),plot=TRUE)
##
##     ## End(Not run)

1. Get team data

1a. Test

The teams in Test cricket are included below

  1. Afghanistan 2.Bangladesh 3. England 4. World 5. India 6. Ireland 7. New Zealand 8. Pakistan 9. South Africa 10.Sri Lanka 11. West Indies 12.Zimbabwe

You can use this for the teamName paramater. This will return a dataframe and also save the file as a CSV , if save=True

Note: – Since I have already got the data as CSV files I am not executing the lines below

import cricpy.analytics as ca
# Get the data for the teams. Save as CSV
#indiaTest= ca.getTeamDataHomeAway(dir=".",teamView="bat",matchType="Test",file="indiaTest.csv",save=True,teamName="India")
#ca.getTeamDataHomeAway(teamName="South Africa", matchType="Test", file="southafricaTest.csv", save=True)
#ca.getTeamDataHomeAway(teamName="West Indies", matchType="Test", file="westindiesTest.csv", save=True)
#newzealandTest = ca.getTeamDataHomeAway(matchType="Test",file="newzealandTest.csv",save=True,teamName="New Zealand")

1b. ODI

The ODI teams in the world are below. The data for these teams can be got by names as shown below

  1. Afghanistan 2. Africa XI 3. Asia XI 4.Australia 5.Bangladesh
  2. Bermuda 7. England 8. ICC World X1 9. India 11.Ireland 12. New Zealand 13. Pakistan       14. South Africa 15.Sri Lanka 17. West Indies 18. Zimbabwe 19 Canada    21. East Africa        22. Hong Kong 23.Ireland 24. Kenya 25. Namibia 26.Nepal 27.Netherlands 28. Oman 29.Papua New Guinea 30. Scotland 31 United Arab Emirates 32. United States of America
import cricpy.analytics as ca
#indiaODI=  ca.getTeamDataHomeAway(dir=".",matchType="ODI",file="indiaODI.csv",save=True,teamName="India")
#englandODI =  ca.getTeamDataHomeAway(matchType="ODI",file="englandODI.csv",save=True,teamName="England")
#westindiesODI = ca.getTeamDataHomeAway(matchType="ODI",file="westindiesODI.csv",save=True,teamName="West Indies")
#irelandODI <- ca.getTeamDataHomeAway(matchType="ODI",file="irelandODI.csv",save=True,teamName="Ireland")

1c T20

The T20 teams in the world are

  1. Afghanistan 2. Australia 3. Bahrain 4. Bangladesh 5. Belgium 6. Belize
  2. Bermuda 8.Botswana 9. Canada 11. Costa Rica 12. Germany 13. Ghana
  3. Guernsey 15. Hong Kong 16. ICC World X1 17.India 18. Ireland 19.Italy
  4. Jersey 21. Kenya 22.Kuwait 23.Maldives 24.Malta 25.Mexico 26.Namibia
    27.Nepal 28.Netherlands 29. New Zealand 30.Nigeria 31.Oman 32. Pakistan
    33.Panama 34.Papua New Guinea 35. Philippines 36.Qatar 37.Saudi Arabia
    38.Scotland 39.South Africa 40.Spain 41.Sri Lanka 42.Uganda 43.United Arab Emirates United States of America 44.Vanuatu 45.West Indies
import cricpy.analytics as ca
#southafricaT20 = ca.getTeamDataHomeAway(matchType="T20",file="southafricaT20.csv",save=True,teamName="South Africa")
#srilankaT20 = ca.getTeamDataHomeAway(matchType="T20",file="srilankaT20.csv",save=True,teamName="Sri Lanka")
#canadaT20 = ca.getTeamDataHomeAway(matchType="T20",file="canadaT20.csv",save=True,teamName="Canada")
#afghanistanT20 = ca.getTeamDataHomeAway(matchType="T20",file="afghanistanT20.csv",save=True,teamName="Afghanistan")

2 Analysis of Test matches

The functions below perform analysis of Test teams

2a. Wins vs Loss against opposition

This function performs analysis of Test teams against other teams at home/away or neutral venue. Note:- The opposition can be a list of opposition teams. Similarly homeOrAway can also be a list of home/away/neutral venues.

import cricpy.analytics as ca
# Get the performance of Indian test team against all teams at all venues as a dataframe
df =ca.teamWinLossStatusVsOpposition("indiaTest.csv",teamName="India",opposition=["all"], homeOrAway=["all"], matchType="Test", plot=False)
print(df)
## ha                   away  home
## Opposition   Result
## Afghanistan  won      0.0   1.0
## Australia    draw    20.0  23.0
##              lost    58.0  26.0
##              tied     0.0   2.0
##              won     13.0  39.0
## Bangladesh   draw     3.0   0.0
##              won      9.0   2.0
## England      draw    35.0  48.0
##              lost    68.0  26.0
##              won     13.0  33.0
## New Zealand  draw    18.0  28.0
##              lost    16.0   4.0
##              won     10.0  28.0
## Pakistan     draw    29.0  34.0
##              lost    14.0  10.0
##              won      2.0  13.0
## South Africa draw    13.0   3.0
##              lost    20.0  10.0
##              won      6.0  15.0
## Sri Lanka    draw    11.0  14.0
##              lost    14.0   0.0
##              won     16.0  13.0
## West Indies  draw    39.0  35.0
##              lost    32.0  28.0
##              won     13.0  21.0
## Zimbabwe     draw     1.0   1.0
##              lost     4.0   0.0
##              won      5.0   6.0
# Plot the performance of Indian Test team  against all teams at all venues
ca.teamWinLossStatusVsOpposition("indiaTest.csv",teamName="India",opposition=["all"],homeOrAway=["all"],matchType="Test",plot=True)















# Get the performance of Australia against India, England and New Zealand at all venues in Tests
df =ca.teamWinLossStatusVsOpposition("southafricaTest.csv",teamName="South Africa",opposition=["India","England","New Zealand"],homeOrAway=["all"],matchType="Test",plot=False)
print(df)

#Plot the performance of Australia against England, India and New Zealand only at home (Australia)
## ha                  away  home
## Opposition  Result
## England     draw      43    55
##             lost      60    62
##             won       26    34
## India       draw       5    14
##             lost      16     6
##             won        7    19
## New Zealand draw      20     7
##             lost       2     6
##             won       14    29
ca.teamWinLossStatusVsOpposition("southafricaTest.csv",teamName="South Africa",opposition=["India","England","New Zealand"],homeOrAway=["home","away"],matchType="Test",plot=True)



2b Wins vs losses of Test teams against opposition at different venues

import cricpy.analytics as ca
# Get the  performance of Pakistan against India, West Indies, South Africa at all venues in Tests and show performances at the venues
df = ca.teamWinLossStatusAtGrounds("westindiesTest.csv",teamName="West Indies",opposition=["India","Sri Lanka","South Africa"],homeOrAway=["all"],matchType="Test",plot=False)
print(df)

# Plot the performance of New Zealand Test team against England, Sri Lanka and Bangladesh at all grounds playes
## ha                         away  home
## Ground             Result
## Ahmedabad          won      2.0   0.0
## Basseterre         draw     0.0   3.0
## Bengaluru          draw     2.0   0.0
##                    won      2.0   0.0
## Bridgetown         draw     0.0   6.0
##                    lost     0.0   6.0
##                    won      0.0  14.0
## Cape Town          draw     2.0   0.0
##                    lost     6.0   0.0
## Centurion          lost     6.0   0.0
## Chennai            draw     4.0   0.0
##                    lost     8.0   0.0
##                    won      3.0   0.0
## Colombo (PSS)      lost     2.0   0.0
## Colombo (RPS)      draw     2.0   0.0
## Colombo (SSC)      lost     4.0   0.0
## Delhi              draw     6.0   0.0
##                    lost     2.0   0.0
##                    won      3.0   0.0
## Durban             lost     6.0   0.0
## Galle              draw     1.0   0.0
##                    lost     4.0   0.0
## Georgetown         draw     0.0  10.0
## Gros Islet         draw     0.0   5.0
##                    lost     0.0   2.0
## Hyderabad (Deccan) lost     2.0   0.0
## Johannesburg       lost     4.0   0.0
## Kandy              lost     4.0   0.0
## Kanpur             draw     1.0   0.0
##                    won      3.0   0.0
## Kingston           draw     0.0   8.0
##                    lost     0.0   4.0
##                    won      0.0  15.0
## Kingstown          draw     0.0   2.0
## Kolkata            draw     7.0   0.0
##                    lost     6.0   0.0
##                    won      3.0   0.0
## Mohali             won      2.0   0.0
## Moratuwa           draw     1.0   0.0
## Mumbai             draw     7.0   0.0
##                    lost     6.0   0.0
##                    won      2.0   0.0
## Mumbai (BS)        draw     5.0   0.0
##                    won      2.0   0.0
## Nagpur             draw     2.0   0.0
## North Sound        lost     0.0   2.0
## Pallekele          draw     1.0   0.0
## Port Elizabeth     draw     1.0   0.0
##                    lost     2.0   0.0
##                    won      2.0   0.0
## Port of Spain      draw     0.0  12.0
##                    lost     0.0  12.0
##                    won      0.0  10.0
## Providence         lost     0.0   2.0
## Rajkot             lost     2.0   0.0
## Roseau             draw     0.0   2.0
## St John's          draw     0.0   6.0
##                    lost     0.0   2.0
##                    won      0.0   2.0
ca. teamWinLossStatusAtGrounds("newzealandTest.csv",teamName="New Zealand",opposition=["England","Sri Lanka","Bangladesh"],homeOrAway=["all"],matchType="Test",plot=True)



2c. Plot the time line of wins vs losses of Test teams against opposition at different venues during an interval

import cricpy.analytics as ca
# Plot the time line of wins/losses of India against Australia, West Indies, South Africa in away/neutral venues
#from 2000-01-01 to 2017-01-01
ca.plotTimelineofWinsLosses("indiaTest.csv",teamName="India",opposition=["Australia","West Indies","South Africa"],
                         homeOrAway=["away","neutral"], startDate="2000-01-01",endDate="2017-01-01")
#Plot the time line of wins/losses of Indian Test team from 1970 onwards

ca.plotTimelineofWinsLosses("indiaTest.csv",teamName="India",startDate="1970-01-01",endDate="2017-01-01")

3 ODI

The functions below perform analysis of ODI teams listed above

3a. Wins vs Loss against opposition ODI teams

This function performs analysis of ODI teams against other teams at home/away or neutral venue. Note:- The opposition can be a vector of opposition teams. Similarly homeOrAway can also be a vector of home/away/neutral venues.

import cricpy.analytics as ca
# Get the performance of West Indies in ODIs against all other ODI teams at all venues and retirn as a dataframe
df = ca.teamWinLossStatusVsOpposition("westindiesODI.csv",teamName="West Indies",opposition=["all"],homeOrAway=["all"],matchType="ODI",plot=False)
print(df)

# Plot the performance of West Indies in ODIs against Sri Lanka, India at all venues
## ha                   away  home  neutral
## Opposition   Result
## Afghanistan  lost     0.0   1.0      2.0
##              won      0.0   1.0      0.0
## Australia    lost    41.0  25.0      8.0
##              n/r      3.0   0.0      0.0
##              tied     1.0   2.0      0.0
##              won     35.0  18.0      7.0
## Bangladesh   lost     6.0   5.0      3.0
##              n/r      1.0   0.0      1.0
##              won     10.0   8.0      3.0
## Bermuda      won      0.0   0.0      1.0
## Canada       won      2.0   1.0      1.0
## England      lost    22.0  17.0     12.0
##              n/r      0.0   3.0      0.0
##              won     15.0  23.0      6.0
## India        lost    27.0  14.0     18.0
##              n/r      0.0   1.0      0.0
##              tied     1.0   0.0      1.0
##              won     27.0  20.0     15.0
## Ireland      lost     0.0   0.0      1.0
##              won      2.0   3.0      2.0
## Kenya        lost     0.0   0.0      1.0
##              won      3.0   0.0      2.0
## Netherlands  won      0.0   0.0      2.0
## New Zealand  lost    19.0   5.0      3.0
##              n/r      2.0   0.0      2.0
##              won     10.0  15.0      5.0
## P.N.G.       won      0.0   0.0      1.0
## Pakistan     lost    11.0  15.0     34.0
##              tied     1.0   2.0      0.0
##              won     14.0  16.0     41.0
## Scotland     won      0.0   0.0      3.0
## South Africa lost    20.0  17.0      7.0
##              n/r      1.0   0.0      0.0
##              tied     0.0   0.0      1.0
##              won      5.0   7.0      3.0
## Sri Lanka    lost     9.0   5.0     11.0
##              n/r      2.0   1.0      0.0
##              won      3.0   5.0     20.0
## U.A.E.       won      0.0   0.0      2.0
## Zimbabwe     lost     4.0   1.0      5.0
##              n/r      0.0   1.0      0.0
##              tied     1.0   0.0      0.0
##              won      9.0  15.0     12.0
ca.teamWinLossStatusVsOpposition("westindiesODI.csv",teamName="West Indies",opposition=["Sri Lanka", "India"],homeOrAway=["all"],matchType="ODI",plot=True)















#Plot the performance of Ireland in ODIs against Zimbabwe, Kenya, bermuda, UAE, Oman and Scotland at all venues
ca.teamWinLossStatusVsOpposition("irelandODI.csv",teamName="Ireland",opposition=["Zimbabwe","Kenya","Bermuda","U.A.E.","Oman","Scotland"],homeOrAway=["all"],matchType="ODI",plot=True)



3b Wins vs losses of ODI teams against opposition at different venues

import cricpy.analytics as ca
# Plot the performance of England ODI team against Bangladesh, West Indies and Australia at all venues
ca.teamWinLossStatusAtGrounds("englandODI.csv",teamName="England",opposition=["West Indies"],homeOrAway=["all"],matchType="ODI",plot=True)
























#Plot the performance of India against South Africa, West Indies and Australia at 'home' venues
ca.teamWinLossStatusAtGrounds("indiaODI.csv",teamName="India",opposition=["South Africa"],homeOrAway=["home"],matchType="ODI",plot=True)



3c. Plot the time line of wins vs losses of ODI teams against opposition at different venues during an interval


import cricpy.analytics as ca
#Plot the time line of wins/losses of Bangladesh ODI team between 2015 and 2019 against all other teams and at
# all venues
ca.plotTimelineofWinsLosses("bangladeshOD.csv",teamName="Bangladesh",startDate="2015-01-01",endDate="2019-01-01",matchType="ODI")























#Plot the time line of wins/losses of India ODI against Sri Lanka, Bangladesh from 2016 to 2019
ca.plotTimelineofWinsLosses("indiaODI.csv",teamName="India",opposition=["Sri Lanka","Bangladesh"],startDate="2016-01-01",endDate="2019-01-01",matchType="ODI")



4 Twenty 20

The functions below perform analysis of Twenty 20 teams listed above

4a. Wins vs Loss against opposition ODI teams

This function performs analysis of T20 teams against other T20 teams at home/away or neutral venue. Note:- The opposition can be a list of opposition teams. Similarly homeOrAway can also be a list of home/away/neutral venues.

import cricpy.analytics as ca
# Get the performance of South Africa T20 team against England, India and Sri Lanka at home grounds at England
df = ca.teamWinLossStatusVsOpposition("southafricaT20.csv",teamName="South Africa",opposition=["England","India","Sri Lanka"], homeOrAway=["home"], matchType="T20", plot=False)
print(df)

#Plot the performance of South Africa T20 against England, India and Sri Lanka at all venues
## ha                 home
## Opposition Result
## England    lost       1
##            won        4
## India      lost       5
##            won        2
## Sri Lanka  lost       2
##            tied       1
##            won        3
ca.teamWinLossStatusVsOpposition("southafricaT20.csv",teamName="South Africa", opposition=["England","India","Sri Lanka"],homeOrAway=["all"],matchType="T20",plot=True)

























#Plot the performance of Afghanistan T20 teams against all oppositions



ca.teamWinLossStatusVsOpposition("afghanistanT20.csv",teamName="Afghanistan",opposition=["all"],homeOrAway=["all"],matchType="T20",plot=True)



4b Wins vs losses of T20 teams against opposition at different venues

# Compute the performance of Canada against all opposition at all venues and show by grounds. Return as dataframe
df =ca.teamWinLossStatusAtGrounds("canadaT20.csv",teamName="Canada",opposition=["all"],homeOrAway=["all"],matchType="T20",plot=False)
print(df)

# Plot the performance of Sri Lanka T20 team against India and Bangladesh in different venues at home/away and neutral
## ha                     home  neutral
## Ground         Result
## Abu Dhabi      lost     0.0      1.0
## Belfast        lost     0.0      1.0
##                won      0.0      2.0
## Colombo (SSC)  lost     0.0      1.0
##                won      0.0      1.0
## Dubai (DSC)    lost     0.0      5.0
## ICCA Dubai     lost     0.0      2.0
##                won      0.0      1.0
## King City (NW) lost     3.0      0.0
##                tied     1.0      0.0
## Sharjah        lost     0.0      1.0
ca.teamWinLossStatusAtGrounds("srilankaT20.csv",teamName="Sri Lanka",opposition=["India", "Bangladesh"], homeOrAway=["all"], matchType="T20", plot=True)



4c. Plot the time line of wins vs losses of T20 teams against opposition at different venues during an interval

#Plot the time line of Sri Lanka T20 team agaibst all opposition
ca.plotTimelineofWinsLosses("srilankaT20.csv",teamName="Sri Lanka",opposition=["Australia", "Pakistan"], startDate="2013-01-01", endDate="2019-01-01",  matchType="T20")





















# Plot the time line of South Africa T20 between 2010 and 2015 against West Indies and Pakistan
ca.plotTimelineofWinsLosses("southafricaT20.csv",teamName="South Africa",opposition=["West Indies", "Pakistan"], startDate="2010-01-01", endDate="2015-01-01",  matchType="T20")

Conclusion

With the above additional functions cricpy can now analyze batsmen, bowlers and teams in all formats of the game (Test, ODI and T20).

Have fun with cricpy!!!

You may also like

  1. My book ‘Deep Learning from first principles:Second Edition’ now on Amazon
  2. Practical Machine Learning with R and Python – Part 3
  3. Big Data-4: Webserver log analysis with RDDs, Pyspark, SparkR and SparklyR
  4. Revisiting World Bank data analysis with WDI and gVisMotionChart
  5. The Clash of the Titans in Test and ODI cricket
  6. Simulating the domino effect in Android using Box2D and AndEngine
  7. Presentation on Wireless Technologies – Part 1 8.De-blurring revisited with Wiener filter using OpenCV
  8. Cloud Computing – Design Considerations

To see all posts click Index of posts
