# De-blurring revisited with Wiener filter using OpenCV

In this post I continue to experiment with the de-blurring of images using the Wiener filter. For details on the Wiener filter, please look at my earlier post “Dabbling with Wiener filter using OpenCV”.  Thanks to Egli Simon, Switzerland for pointing out a bug in the earlier post which I have now fixed.  The Wiener filter attempts to de-blur by assuming that the source signal is convolved with a blur kernel in the presence of noise.   I have also included the blur kernel as estimated by E. Simon in the code. I am including the de-blurring with 3 different blur kernel radii and different values for the Wiener constant K.  While the de-blurring is still a long way off there is some success.

One of the reasons I have assumed a non-blind blur kernel and try to de-convolve with that. The Wiener filter tries to minimize the Mean Square Error (MSE)  which can be expressed as
e(f) = E[X(f) – X1(f)]^2                                – (1)

where e(f) is the Mean Square Error(MSE) in the frequency domain, X(f) is the original image and X1(f) is the estimated signal which we get by de-convolving the Wiener filter with the observed blurred image i.e. and E[] is the expectation

X1(f) = G(f) * Y(f)                                        -(2)
where G(f) is the Wiener de-convolution filter and Y(f) is the observed blurred image
Substituting (2) in (1) we get
e(f) = E[X(f) – G(f) *Y(f)]^2

If the above equation is solved we can effectively remove the blur.
Feel free to post comments, opinions or ideas.

Watch this space …
I will be back! Hasta la Vista!

Note: You can clone the code below from Git Hib – Another implementation of Weiner filter in OpenCV

The complete code is included below and should work as is

/*
============================================================================
Name : deblur_wiener.c
Author : Tinniam V Ganesh & Egli Simon
Version :
Description : Implementation of Wiener filter in OpenCV
============================================================================
*/

#include <stdio.h>
#include <stdlib.h>
#include “cxcore.h”
#include “cv.h”
#include “highgui.h”

#define kappa 10.0

int main(int argc, char ** argv)
{
int height,width,step,channels,depth;
uchar* data1;

CvMat *dft_A;
CvMat *dft_B;

CvMat *dft_C;
IplImage* im;
IplImage* im1;

IplImage* image_ReB;
IplImage* image_ImB;

IplImage* image_ReC;
IplImage* image_ImC;
IplImage* complex_ImC;
CvScalar val;

IplImage* k_image_hdr;
int i,j,k;
char str;
FILE *fp;
fp = fopen(“test.txt”,”w+”);

int dft_M,dft_N;
int dft_M1,dft_N1;

CvMat* cvShowDFT1(IplImage*, int, int,char*);
void cvShowInvDFT1(IplImage*, CvMat*, int, int,char*);

cvNamedWindow(“Original-color”, 0);
cvShowImage(“Original-color”, im1);
if( !im )
return -1;

cvNamedWindow(“Original-gray”, 0);
cvShowImage(“Original-gray”, im);

// Create a random noise matrix
fp = fopen(“test.txt”,”w+”);
int val_noise[357*383];
for(i=0; i <im->height;i++){
for(j=0;j<im->width;j++){
fprintf(fp, “%d “,(383*i+j));
val_noise[383*i+j] = rand() % 128;
}
fprintf(fp, “\n”);
}

CvMat noise = cvMat(im->height,im->width, CV_8UC1,val_noise);

// Add the random noise matric to the image

cvNamedWindow(“Original + Noise”, 0);
cvShowImage(“Original + Noise”, im);

cvSmooth( im, im, CV_GAUSSIAN, 7, 7, 0.5, 0.5 );
cvNamedWindow(“Gaussian Smooth”, 0);
cvShowImage(“Gaussian Smooth”, im);

// Create a blur kernel
IplImage* k_image;

printf(“rowlength %d\n”,rowLength);
float kernels[rowLength*rowLength];
printf(“rowl: %i”,rowLength);
int norm=0; //Normalization factor
int x,y;
CvMat kernel;
for(x = 0; x < rowLength; x++)
for (y = 0; y < rowLength; y++)
norm++;
// Populate matrix
for (y = 0; y < rowLength; y++) //populate array with values
{
for (x = 0; x < rowLength; x++) {
//kernels[y * rowLength + x] = 255;
kernels[y * rowLength + x] =1.0/norm;
printf(“%f “,1.0/norm);
}
else{
kernels[y * rowLength + x] =0;
}
}
}

/*for (i=0; i < rowLength; i++){
for(j=0;j < rowLength;j++){
printf(“%f “, kernels[i*rowLength +j]);
}
}*/

kernel= cvMat(rowLength, // number of rows
rowLength, // number of columns
CV_32FC1, // matrix data type
&kernels);
k_image = cvGetImage(&kernel,k_image_hdr);

height = k_image->height;
width = k_image->width;
step = k_image->widthStep/sizeof(float);
depth = k_image->depth;

channels = k_image->nChannels;
//data1 = (float *)(k_image->imageData);
data1 = (uchar *)(k_image->imageData);
cvNamedWindow(“blur kernel”, 0);
cvShowImage(“blur kernel”, k_image);

dft_M = cvGetOptimalDFTSize( im->height – 1 );
dft_N = cvGetOptimalDFTSize( im->width – 1 );

//dft_M1 = cvGetOptimalDFTSize( im->height+99 – 1 );
//dft_N1 = cvGetOptimalDFTSize( im->width+99 – 1 );

dft_M1 = cvGetOptimalDFTSize( im->height+3 – 1 );
dft_N1 = cvGetOptimalDFTSize( im->width+3 – 1 );

printf(“dft_N1=%d,dft_M1=%d\n”,dft_N1,dft_M1);

// Perform DFT of original image
dft_A = cvShowDFT1(im, dft_M1, dft_N1,”original”);
//Perform inverse (check)
//cvShowInvDFT1(im,dft_A,dft_M1,dft_N1, “original”); – Commented as it overwrites the DFT

// Perform DFT of kernel
dft_B = cvShowDFT1(k_image,dft_M1,dft_N1,”kernel”);
//Perform inverse of kernel (check)
//cvShowInvDFT1(k_image,dft_B,dft_M1,dft_N1, “kernel”);- Commented as it overwrites the DFT

// Multiply numerator with complex conjugate
dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );

printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

// Multiply DFT(blurred image) * complex conjugate of blur kernel
cvMulSpectrums(dft_A,dft_B,dft_C,CV_DXT_MUL_CONJ);
//cvShowInvDFT1(im,dft_C,dft_M1,dft_N1,”blur1″);

// Split Fourier in real and imaginary parts
image_ReC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
complex_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 2);
printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

//cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );
cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );

// Compute A^2 + B^2 of denominator or blur kernel
image_ReB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);

// Split Real and imaginary parts
cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
cvPow( image_ReB, image_ReB, 2.0);
cvPow( image_ImB, image_ImB, 2.0);
val = cvScalarAll(kappa);

//Divide Numerator/A^2 + B^2
cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
cvDiv(image_ImC, image_ReB, image_ImC, 1.0);

// Merge Real and complex parts
cvMerge(image_ReC, image_ImC, NULL, NULL, complex_ImC);

// Perform Inverse

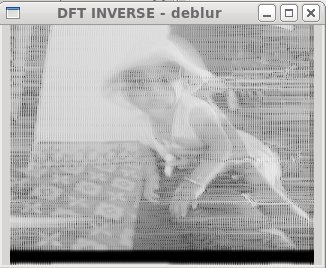

cvShowInvDFT1(im, (CvMat *)complex_ImC,dft_M1,dft_N1,str);

cvWaitKey(-1);
return 0;
}

CvMat* cvShowDFT1(IplImage* im, int dft_M, int dft_N,char* src)
{
IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;
CvMat* dft_A, tmp;
IplImage* image_Re;
IplImage* image_Im;
char str;
double m, M;
realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);
cvScale(im, realInput, 1.0, 0.0);
cvZero(imaginaryInput);
cvMerge(realInput, imaginaryInput, NULL, NULL, complexInput);

dft_A = cvCreateMat( dft_M, dft_N, CV_64FC2 );
image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

// copy A to dft_A and pad dft_A with zeros
cvGetSubRect( dft_A, &tmp, cvRect(0,0, im->width, im->height));
cvCopy( complexInput, &tmp, NULL );
if( dft_A->cols > im->width )
{
cvGetSubRect( dft_A, &tmp, cvRect(im->width,0, dft_A->cols – im->width, im->height));
cvZero( &tmp );
}

// no need to pad bottom part of dft_A with zeros because of
// use nonzero_rows parameter in cvDFT() call below
cvDFT( dft_A, dft_A, CV_DXT_FORWARD, complexInput->height );
strcpy(str,”DFT -“);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );

// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
cvShowImage(str, image_Re);
return(dft_A);
}

void cvShowInvDFT1(IplImage* im, CvMat* dft_A, int dft_M, int dft_N,char* src)
{
IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;
IplImage * image_Re;
IplImage * image_Im;
double m, M;
char str;
realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);
image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

//cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, complexInput->height );
cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, dft_M);
strcpy(str,”DFT INVERSE – “);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );

// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
//cvCvtColor(image_Re, image, CV_GRAY2RGBA);
cvShowImage(str, image_Re);
}
– De-blurring revisited with Wiener filter using OpenCV
–  Dabbling with Wiener filter using OpenCV
– Deblurring with OpenCV: Wiener filter reloaded
– Re-working the Lucy-Richardson Algorithm in OpenCV

# Dabbling with Wiener filter using OpenCV

The technique of reduction of blur and restoration of images is an extremely important field of study and finds numerous applications in medical imaging and astronomy.  One such technique is Wiener filter named after the originator of the technique Prof. Norbert Wiener (1894-1964).  It is usually important to consider these techniques in the frequency domain.

This can be represented diagrammatically as follows Given that we have
b(x,y) = i(x,y) * k(x,y) + n(x,y)                                       – (1)
where b(x,y) is the blurred image, i(x,y) is the latent image, k(x,y) is the blur kernel and n(x,y) is random noise.
The above in frequency domain can be written as
B(u,v) = I(u,v) * K(u,v) + N(u,v)                                     –  (2)
Inv K(u,v) represents the inverse of the blur kernel and can be determined  from equation (2) by disregarding the noise.  However the inverse filter has high gain at low frequencies and hence tends to amplify noise at these low frequencies.
Wiener filter and Butterworth filter try to minimize these
Wiener filter attempts to minimize the Mean Squared Error (MSE) of the following equation
e^2 = E[( i(x,y)   – mean (i (x,y))^2]

The frequency domain expression for this
T(u,v)           =
K*(u,v)
——–                                                   -(3)
| K(u,v)|^2 + Sn(u,v)/Sf(u,v)
Where T(u,v) is the Wiener filter
K*(u,v) is the complex conjugate of the blur kernel
|K(u,v)|^2  = k^2 + m^2 where k and m are the coefficients of the real and imaginary parts of the blur kernel
Sn(u,v) is the power spectra of noise
Sf(u,v) is the power spectra of the signal
Equation (3) can be represented as
T(u,v)            =
K*(u,v)
——–                                                   –   (4)
| K(u,v)|^2 +  L
Where L is a small positive value
Eqn(4) represents Wiener filter

The lecture  “Image deblurring by Frequency Domain Operations” by Prof. Harvey Rhody is worth a read.
One thing that puzzles me is the Wiener filter is the inverse of the blur kernel with the additional factor of ‘L’ in the denominator. The contribution of the factor ‘L’ will be small, so the Wiener filter appears to be the same as a regular inverse filter. I am probably missing something here(??).

You can clone the code below from Git Hub – Weiner filter with OpenCV

The steps to create the Wiener filter were as follow

1. Create the gray image of the blurred original ```      // Add the random noise matric to the image
3.Gaussian smooth the noisy blurred image
cvSmooth( im, im, CV_GAUSSIAN, 7, 7, 0.5, 0.5 ); 4.Perform DFT and inverse DFT (to check) of the original image (noisy, blurred image)
// Perform DFT of original image
dft_A = cvShowDFT1(im, dft_M1, dft_N1,"original");
//Perform inverse (check)
cvShowInvDFT1(im,dft_A,dft_M1,dft_N1, "original"); 5.Perform DFT and inverse DFT of blur kernel
// Perform DFT of kernel
dft_B = cvShowDFT1(k_image,dft_M1,dft_N1,"kernel");
//Perform inverse of kernel (check)
cvShowInvDFT1(k_image,dft_B,dft_M1,dft_N1, "kernel"); 6.Multiply DFT of original with complex conjugate of blur kernel
// Multiply numerator with complex conjugate
dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );
7.Calculate modulus of blur kernel (denominator)
// Split Real and imaginary parts
cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
cvPow( image_ReB, image_ReB, 2.0);
cvPow( image_ImB, image_ImB, 2.0);
8.Add Wiener constant to modulus of blur kernel (denominator)
val = cvScalarAll(0.00001);
9.Divide the numerator with the denominator
//Divide Numerator/A^2 + B^2
cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
cvDiv(image_ImC, image_ReB, image_ImC, 1.0);
10.Perform inverse DFT of the filtered signal```

// Perform Inverse

``` cvShowInvDFT1(im, (CvMat *)complex_ImC,dft_M1,dft_N1,"Output - Wiener filter"); ```

There is still a residual amount of blur (do also read De-blurring revisited with Wiener filter using OpenCV). This can be tried for different values of the Wiener introduced noise.
Note: I would like to give special thanks to Egli Simon who identified the bug in my previous version of the code. The line to display the inverse DFT of the original image & the blur kernel overwrote the DFT contents and I was not getting the Wiener filter to work
Note: You can clone the code below from Git Hub – Weiner filter with OpenCV
The complete code is given below (re-worked and should work as is)
/*
============================================================================
Name : wiener1.c
Author : Tinniam V Ganesh & Egli Simon
Version :
Description : Wiener filter implementation in OpenCV (22 Nov 2011)
============================================================================
*/
#include <stdio.h>
#include <stdlib.h>
#include “cxcore.h”
#include “cv.h”
#include “highgui.h”

#define kappa 1
int main(int argc, char ** argv)
{
int height,width,step,channels,depth;
uchar* data1;
CvMat *dft_A;
CvMat *dft_B;
CvMat *dft_C;
IplImage* im;
IplImage* im1;
IplImage* image_ReB;
IplImage* image_ImB;
IplImage* image_ReC;
IplImage* image_ImC;
IplImage* complex_ImC;
CvScalar val;
IplImage* k_image_hdr;
int i,j,k;

FILE *fp;
fp = fopen(“test.txt”,”w+”);

int dft_M,dft_N;
int dft_M1,dft_N1;
CvMat* cvShowDFT1(IplImage*, int, int,char*);
void cvShowInvDFT1(IplImage*, CvMat*, int, int,char*);
cvNamedWindow(“Original-color”, 0);
cvShowImage(“Original-color”, im1);
if( !im )
return -1;
cvNamedWindow(“Original-gray”, 0);
cvShowImage(“Original-gray”, im);

// Create a random noise matrix
fp = fopen(“test.txt”,”w+”);
int val_noise[357*383];
for(i=0; i <im->height;i++){
for(j=0;j<im->width;j++){
fprintf(fp, “%d “,(383*i+j));
val_noise[383*i+j] = rand() % 128;
}
fprintf(fp, “\n”);
}

CvMat noise = cvMat(im->height,im->width, CV_8UC1,val_noise);

// Add the random noise matric to the image
cvNamedWindow(“Original + Noise”, 0);
cvShowImage(“Original + Noise”, im);
cvSmooth( im, im, CV_GAUSSIAN, 7, 7, 0.5, 0.5 );
cvNamedWindow(“Gaussian Smooth”, 0);
cvShowImage(“Gaussian Smooth”, im);

// Create a blur kernel
IplImage* k_image;
printf(“rowlength %d\n”,rowLength);
float kernels[rowLength*rowLength];
printf(“rowl: %i”,rowLength);
int norm=0; //Normalization factor
int x,y;
CvMat kernel;
for(x = 0; x < rowLength; x++)
for (y = 0; y < rowLength; y++)
norm++;
// Populate matrix
for (y = 0; y < rowLength; y++) //populate array with values
{
for (x = 0; x < rowLength; x++) {
//kernels[y * rowLength + x] = 255;
kernels[y * rowLength + x] =1.0/norm;
printf(“%f “,1.0/norm);
}
else{
kernels[y * rowLength + x] =0;
}
}
}

/*for (i=0; i < rowLength; i++){
for(j=0;j < rowLength;j++){
printf(“%f “, kernels[i*rowLength +j]);
}
}*/

kernel= cvMat(rowLength, // number of rows
rowLength, // number of columns
CV_32FC1, // matrix data type
&kernels);
k_image = cvGetImage(&kernel,k_image_hdr);

height = k_image->height;
width = k_image->width;
step = k_image->widthStep/sizeof(float);
depth = k_image->depth;

channels = k_image->nChannels;
//data1 = (float *)(k_image->imageData);
data1 = (uchar *)(k_image->imageData);
cvNamedWindow(“blur kernel”, 0);
cvShowImage(“blur kernel”, k_image);

dft_M = cvGetOptimalDFTSize( im->height – 1 );
dft_N = cvGetOptimalDFTSize( im->width – 1 );

//dft_M1 = cvGetOptimalDFTSize( im->height+99 – 1 );
//dft_N1 = cvGetOptimalDFTSize( im->width+99 – 1 );

dft_M1 = cvGetOptimalDFTSize( im->height+3 – 1 );
dft_N1 = cvGetOptimalDFTSize( im->width+3 – 1 );

printf(“dft_N1=%d,dft_M1=%d\n”,dft_N1,dft_M1);

// Perform DFT of original image
dft_A = cvShowDFT1(im, dft_M1, dft_N1,”original”);
//Perform inverse (check)
//cvShowInvDFT1(im,dft_A,dft_M1,dft_N1, “original”); – Commented as it overwrites the DFT

// Perform DFT of kernel
dft_B = cvShowDFT1(k_image,dft_M1,dft_N1,”kernel”);
//Perform inverse of kernel (check)
//cvShowInvDFT1(k_image,dft_B,dft_M1,dft_N1, “kernel”);- Commented as it overwrites the DFT

// Multiply numerator with complex conjugate
dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );

printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

// Multiply DFT(blurred image) * complex conjugate of blur kernel
cvMulSpectrums(dft_A,dft_B,dft_C,CV_DXT_MUL_CONJ);
//cvShowInvDFT1(im,dft_C,dft_M1,dft_N1,”blur1″);

// Split Fourier in real and imaginary parts
image_ReC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
complex_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 2);

printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

//cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );
cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );

// Compute A^2 + B^2 of denominator or blur kernel
image_ReB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);

// Split Real and imaginary parts
cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
cvPow( image_ReB, image_ReB, 2.0);
cvPow( image_ImB, image_ImB, 2.0);

val = cvScalarAll(kappa);

//Divide Numerator/A^2 + B^2
cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
cvDiv(image_ImC, image_ReB, image_ImC, 1.0);

// Merge Real and complex parts
cvMerge(image_ReC, image_ImC, NULL, NULL, complex_ImC);

// Perform Inverse
cvShowInvDFT1(im, (CvMat *)complex_ImC,dft_M1,dft_N1,”O/p Wiener k=1 rad=2″);

cvWaitKey(-1);
return 0;
}

CvMat* cvShowDFT1(IplImage* im, int dft_M, int dft_N,char* src)
{
IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;

CvMat* dft_A, tmp;

IplImage* image_Re;
IplImage* image_Im;

char str;

double m, M;

realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);
cvScale(im, realInput, 1.0, 0.0);
cvZero(imaginaryInput);
cvMerge(realInput, imaginaryInput, NULL, NULL, complexInput);
dft_A = cvCreateMat( dft_M, dft_N, CV_64FC2 );
image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
// copy A to dft_A and pad dft_A with zeros
cvGetSubRect( dft_A, &tmp, cvRect(0,0, im->width, im->height));
cvCopy( complexInput, &tmp, NULL );
if( dft_A->cols > im->width )
{
cvGetSubRect( dft_A, &tmp, cvRect(im->width,0, dft_A->cols – im->width, im->height));
cvZero( &tmp );
}

// no need to pad bottom part of dft_A with zeros because of
// use nonzero_rows parameter in cvDFT() call below

cvDFT( dft_A, dft_A, CV_DXT_FORWARD, complexInput->height );

strcpy(str,”DFT -“);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );
// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
cvShowImage(str, image_Re);
return(dft_A);
}

void cvShowInvDFT1(IplImage* im, CvMat* dft_A, int dft_M, int dft_N,char* src)
{

IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;
IplImage * image_Re;
IplImage * image_Im;
double m, M;
char str;

realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);

image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

//cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, complexInput->height );
cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, dft_M);
strcpy(str,”DFT INVERSE – “);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );

// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
//cvCvtColor(image_Re, image_Re, CV_GRAY2RGBA);

cvShowImage(str, image_Re);

} Checkout my book ‘Deep Learning from first principles Second Edition- In vectorized Python, R and Octave’.  My book is available on Amazon  as paperback (\$18.99) and in kindle version(\$9.99/Rs449).

You may also like my companion book “Practical Machine Learning with R and Python:Second Edition- Machine Learning in stereo” available in Amazon in paperback(\$12.99) and Kindle(\$9.99/Rs449) versions.

# Experiments with deblurring using OpenCV

Deblurring refers to the removal of the blur from blurred images.  The removal of blur is extremely important in the fields of medical imaging, astronomy etc. In medical imaging this is also known as denoising and finds extensive applications in ultra sonic and CT images.  Similarly in astronomy there is a need to denoise and deblur images that are taken by space telescopes for e.g. the Hubble telescope.

Deblurring is really a tough problem to solve though it has been around for ages. While going through some of the white papers on deblurring I have been particularly fascinated by the results. The blurred images are restored back to its pristine, original sharp image. It is almost magical and is amazing to know that a computer program is able to detect and remove patches, almost bordering on “computer perception”.

However the solution to the problem is very involved. Almost every white paper I read in deblurring techniques involves abstruse mathematical concepts, enough to make one break into ‘cold sweat’ as I did several times. There are several well known methods of removing blur from images. The chief among them are the Richardson-Lucy method, the Weiner filter (do read my post “Dabbling with Wiener filter using OpenCV“), Radon transform or some form Bayesian filtering etc. All of these methods perform the converse of convolution known as de-convolution.  Almost all approaches are based on the following equation

b(x) = k(x) * i(x) + n(x)                           – (1)

Where b(x) – is the blurred image, i(x) is the latent (good) image, k(x) is the blur kernel also known as the Point Spread Function (PSF) and n(x) is random noise.

The key fact to note in the above equation is that the blurred image (b) is a convolution of a good latent image with a blur kernel plus some additive noise. So the good latent image is convolved by a blurring function or the points spread function and results in the blurred image.

Now there are 2 unknowns in the above equation, both the blur kernel and the latent image. To obtain the latent image a process known as de-convolution has to be performed.

If equation (1) is converted to the frequency domain using the Fourier transform on equation (1) we have

B(w) =  K(w) * I(w) + N(w)
Ignoring noise we have
I(w)  = B(w)/K(w)
or
I(w)  = DFT [B(w)]/DFT[K(w)]
Or i(t) = Inverse DFT {[DFT B(w)]/DFT[K(w)]}
If DFT[K(w)] can be represented as A+iB then the above can be represented as
i(t) = Inverse DFT { DFT [B(w)] * (A – iB)}
—————————
A**2 + B**2
where A-iB is the complex conjugate of the DFT of the blur kernel

This is known as de-convolution. There are two types of de-convolution blind and non-blind. In the non-blind de-convolution method an initial blur kernel is assumed and is used to de-blur the image. In the blind convolution an initial estimate of the blur kernel is made and the latent image is successively iterated to obtain the best image. This is based on a method known as maximum-a-posteriori (MAP) to iterate through successive estimations of better and better blur kernels. The Richardson-Lucy algorithm also tries to estimate the blur kernel from the blurred image.

In this post I  perform de-convolution using an estimated blur kernel. As can be seen there is a slight reduction of the blur. By choosing a large kernel probably a 100 x 100 matrix would give a better result.

You can clone this code from GitHub at “Deblurring by deconvolution in OpenCV

Kindly do share any thoughts, ideas that you have. I have included the full code for this. Feel free to use the code and tweak it as you see fit and please share any findings you come across. Steps in the de-convolution process

1. Perform DFT on blurred image. Also perform Inverse DFT to verify whether the process of DFT is correct or not. Make sure that the line for performing the inverse is commented out as it overwrites the DFT array.
```           // Perform DFT of original image
dft_A = cvShowDFT(im, dft_M1, dft_N1,"original");
//Perform inverse (check)
cvShowInvDFT(im,dft_A,dft_M1,dft_N1,fp, "original"); ```

2. Perform DFT on blur kernel. Also perform inverse DFT to get back original contents. Make sure that the line for performing the inverse is commented out as it overwrites the DFT array.

```		// Perform DFT of kernel
dft_B = cvShowDFT(k_image,dft_M1,dft_N1,"kernel");
//Perform inverse of kernel (check)
cvShowInvDFT(k_image,dft_B,dft_M1,dft_N1,fp, "kernel"); 3. Multiply the DFT of image with the complex conjugate of the DFT of the blur kernel
// Multiply numerator with complex conjugate
dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );
4. Compute A**2 + B**2
// Split Real and imaginary parts
cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
cvPow( image_ReB, image_ReB, 2.0);
cvPow( image_ImB, image_ImB, 2.0);
5. Divide numerator with A**2 + B**2
//Divide Numerator/A^2 + B^2
cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
cvDiv(image_ImC, image_ReB, image_ImC, 1.0);
6.Merge real and imaginary parts
// Merge Real and complex parts
cvMerge(image_ReC, image_ImC, NULL, NULL, complex_ImC);
7.Finally perform Inverse DFT
cvShowInvDFT(im, complex_ImC,dft_M1,dft_N1,fp,"deblur"); ```

I have included the complete re-worked code below for the process of de-convolution. There was a small bug in the initial version. This has been fixed and the code below should work as is.

Note: You can clone this code from GitHub at “Deblurring by deconvolution in OpenCV
Do also take a look at my post “Reworking the Lucy Richardson algorithm in OpenCV
/*
============================================================================
Name : deconv.c
Author : Tinniam V Ganesh
Version :
Description : Deconvolution in OpenCV
============================================================================
*/

#include
#include
#include “cxcore.h”
#include “cv.h”
#include “highgui.h”

int main(int argc, char ** argv)
{
int height,width,step,channels;
uchar* data;
uchar* data1;
int i,j,k;
float s;

CvMat *dft_A;
CvMat *dft_B;
CvMat *dft_C;
IplImage* im;
IplImage* im1;
IplImage* image_ReB;
IplImage* image_ImB;
IplImage* image_ReC;
IplImage* image_ImC;
IplImage* complex_ImC;

IplImage* image_ReDen;
IplImage* image_ImDen;

FILE *fp;
fp = fopen(“test.txt”,”w+”);

int dft_M,dft_N;
int dft_M1,dft_N1;
CvMat* cvShowDFT();
void cvShowInvDFT();

cvNamedWindow(“original-color”, 0);
cvShowImage(“original-color”, im1);
if( !im )
return -1;

cvNamedWindow(“original-gray”, 0);
cvShowImage(“original-gray”, im);
// Create blur kernel (non-blind)
//float vals[]={.000625,.000625,.000625,.003125,.003125,.003125,.000625,.000625,.000625};
//float vals[]={-0.167,0.333,0.167,-0.167,.333,.167,-0.167,.333,.167};

float vals[]={.055,.055,.055,.222,.222,.222,.055,.055,.055};
CvMat kernel = cvMat(3, // number of rows
3, // number of columns
CV_32FC1, // matrix data type
vals);
IplImage* k_image_hdr;
IplImage* k_image;

k_image = cvCreateImage(cvSize(3,3),IPL_DEPTH_64F,1);
k_image = cvGetImage(&kernel,k_image_hdr);

/*IplImage* k_image;
cvNamedWindow(“blur kernel”, 0);

height = k_image->height;
width = k_image->width;
step = k_image->widthStep;

channels = k_image->nChannels;
//data1 = (float *)(k_image->imageData);
data1 = (uchar *)(k_image->imageData);

cvShowImage(“blur kernel”, k_image);

dft_M = cvGetOptimalDFTSize( im->height – 1 );
dft_N = cvGetOptimalDFTSize( im->width – 1 );

//dft_M1 = cvGetOptimalDFTSize( im->height+99 – 1 );
//dft_N1 = cvGetOptimalDFTSize( im->width+99 – 1 );

dft_M1 = cvGetOptimalDFTSize( im->height+3 – 1 );
dft_N1 = cvGetOptimalDFTSize( im->width+3 – 1 );

// Perform DFT of original image
dft_A = cvShowDFT(im, dft_M1, dft_N1,”original”);
//Perform inverse (check & comment out) – Commented as it overwrites dft_A
//cvShowInvDFT(im,dft_A,dft_M1,dft_N1,fp, “original”);

// Perform DFT of kernel
dft_B = cvShowDFT(k_image,dft_M1,dft_N1,”kernel”);
//Perform inverse of kernel (check & comment out) – commented as it overwrites dft_B
//cvShowInvDFT(k_image,dft_B,dft_M1,dft_N1,fp, “kernel”);

// Multiply numerator with complex conjugate
dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );

printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

// Multiply DFT(blurred image) * complex conjugate of blur kernel
cvMulSpectrums(dft_A,dft_B,dft_C,CV_DXT_MUL_CONJ);

// Split Fourier in real and imaginary parts
image_ReC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
complex_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 2);

printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

//cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );
cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );

// Compute A^2 + B^2 of denominator or blur kernel
image_ReB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);

// Split Real and imaginary parts
cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
cvPow( image_ReB, image_ReB, 2.0);
cvPow( image_ImB, image_ImB, 2.0);

//Divide Numerator/A^2 + B^2
cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
cvDiv(image_ImC, image_ReB, image_ImC, 1.0);

// Merge Real and complex parts
cvMerge(image_ReC, image_ImC, NULL, NULL, complex_ImC);

// Perform Inverse
cvShowInvDFT(im, complex_ImC,dft_M1,dft_N1,fp,”deblur”);
cvWaitKey(-1);
return 0;
}

CvMat* cvShowDFT(im, dft_M, dft_N,src)
IplImage* im;
int dft_M, dft_N;
char* src;
{
IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;

CvMat* dft_A, tmp;

IplImage* image_Re;
IplImage* image_Im;

char str;

double m, M;

realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);

cvScale(im, realInput, 1.0, 0.0);
cvZero(imaginaryInput);
cvMerge(realInput, imaginaryInput, NULL, NULL, complexInput);

dft_A = cvCreateMat( dft_M, dft_N, CV_64FC2 );
image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

// copy A to dft_A and pad dft_A with zeros
cvGetSubRect( dft_A, &tmp, cvRect(0,0, im->width, im->height));
cvCopy( complexInput, &tmp, NULL );
if( dft_A->cols > im->width )
{
cvGetSubRect( dft_A, &tmp, cvRect(im->width,0, dft_A->cols – im->width, im->height));
cvZero( &tmp );
}

// no need to pad bottom part of dft_A with zeros because of
// use nonzero_rows parameter in cvDFT() call below

cvDFT( dft_A, dft_A, CV_DXT_FORWARD, complexInput->height );

strcpy(str,”DFT -“);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );

// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
cvShowImage(str, image_Re);
return(dft_A);
}

void cvShowInvDFT(im, dft_A, dft_M, dft_N,fp, src)
IplImage* im;
CvMat* dft_A;
int dft_M,dft_N;
FILE *fp;
char* src;
{

IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;

IplImage * image_Re;
IplImage * image_Im;

double m, M;
char str;

realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);

image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

//cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, complexInput->height );
cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, dft_M);
strcpy(str,”DFT INVERSE – “);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );

// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
//cvCvtColor(image_Re, image_Re, CV_GRAY2RGBA);

cvShowImage(str, image_Re);
} Checkout my book ‘Deep Learning from first principles Second Edition- In vectorized Python, R and Octave’.  My book is available on Amazon  as paperback (\$18.99) and in kindle version(\$9.99/Rs449).

You may also like my companion book “Practical Machine Learning with R and Python:Second Edition- Machine Learning in stereo” available in Amazon in paperback(\$12.99) and Kindle(\$9.99/Rs449) versions.
