The mechanics of Convolutional Neural Networks in Tensorflow and Keras

Convolutional Neural Networks (CNNs), have been very popular in the last decade or so. CNNs have been used in multiple applications like image recognition, image classification, facial recognition, neural style transfer etc. CNN’s have been extremely successful in handling these kind of problems. How do they work? What makes them so successful? What is the principle behind CNN’s ?

Note: this post is based on two Coursera courses I did, namely namely Deep Learning specialisation by Prof Andrew Ng and Tensorflow Specialisation by  Laurence Moroney.

In this post I show you how CNN’s work. To understand how CNNs work, we need to understand the concept behind machine learning algorithms. If you take a simple machine learning algorithm in which you are trying to do multi-class classification using softmax or binary classification with the sigmoid function, for a set of for a set of input features against a target variable we need to create an objective function of the input features versus the target variable. Then we need to minimise this objective function, while performing gradient descent, such that the cost  is the lowest. This will give the set of weights for the different variables in the objective function.

The central problem in ML algorithms is to do feature selection, i.e.  we need to find the set of features that actually influence the target.  There are various methods for doing features selection – best fit, forward fit, backward fit, ridge and lasso regression. All these methods try to pick out the predictors that influence the output most, by making the weights of the other features close to zero. Please look at my post – Practical Machine Learning in R and Python – Part 3, where I show you the different methods for doing features selection.

In image classification or Image recognition we need to find the important features in the image. How do we do that? Many years back, have played around with OpenCV.  While working with OpenCV I came across are numerous filters like the Sobel ,the Laplacian, Canny, Gaussian filter et cetera which can be used to identify key features of the image. For example the Canny filter feature can be used for edge detection, Gaussian for smoothing, Sobel for determining the derivative and we have other filters for detecting vertical or horizontal edges. Take a look at my post Computer Vision: Ramblings on derivatives, histograms and contours So for handling images we need to apply these filters to pick  out the key features of the image namely the edges and other features. So rather than using the entire image’s pixels against the target class we can pick out the features from the image and use that as predictors of the target output.

Note: that in Convolutional Neural Network, fixed filter values like the those shown above  are not used directly. Rather the filter values are learned through back propagation and gradient descent as shown below.

In CNNs the filter values are considered to be weights which are then learned and updated in each forward/backward propagation cycle much like the way a fully connected Deep Learning Network learns the weights of the network.

Here is a short derivation of the most important parts of how a CNNs work

The convolution of a filter F with the input X can be represented as.





Convolving we get



This the forward propagation as it passes through a non-linear function like Relu



To go through back propagation we need to compute the \partial L  at every node of Convolutional Neural network



The loss with respect to the output is \partial L/\partial O. \partial O/\partial X & \partial O/\partial F are the local derivatives

We need these local derivatives because we can learn the filter values using gradient descent

where \alpha is the learning rate. Also \partial L/\partial X is the loss which is back propagated to the previous layers. You can see the detailed derivation of back propagation in my post Deep Learning from first principles in Python, R and Octave – Part 3 in a L-layer, multi-unit Deep Learning network.

In the fully connected layers the weights associated with each connection is computed in every cycle of forward and backward propagation using gradient descent. Similarly, the filter values are also computed and updated in each forward and backward propagation cycle. This is done so as to minimize the loss at the output layer.

By using the chain rule and simplifying the back propagation for the Convolutional layers we get these 2 equations. The first equation is used to learn the filter values and the second is used pass the loss to layers before

(for the detailed derivation see Convolutions and Backpropagations

An important aspect of performing convolutions is to reduce the size of  the flattened image that is passed into the fully connected DL network. Successively convolving with 2D filters and doing a max pooling helps to reduce the size of the features that we can use for learning the images. Convolutions also enable a sparsity of connections  as you can see in the diagram below. In the LeNet-5 Convolution Neural Network of Yann Le Cunn, successive convolutions reduce the image size from 28 x 28=784 to 120 flattened values.

Here is an interesting Deep Learning problem. Convolutions help in picking out important features of images and help in image classification/ detection. What would be its equivalent if we wanted to identify the Carnatic ragam of a song? A Carnatic ragam is roughly similar to Western scales (major, natural, melodic, blues) with all its modes Lydian, Aeolion, Phyrgian etc. Except in the case of the ragams, it is more nuanced, complex and involved. Personally, I can rarely identify a ragam on which a carnatic song is based (I am tone deaf when it comes to identifying ragams). I have come to understand that each Carnatic ragam has its own character, which is made up of several melodic phrases which are unique to that flavor of a ragam. What operation like convolution would be needed so that we can pick out these unique phrases in a Carnatic ragam? Of course, we would need to use it in Recurrent Neural Networks with LSTMs as a song is a time sequence of notes to identify sequences. Nevertheless, if there was some operation with which we can pick up the distinct, unique phrases from a song and then run it through a classifier, maybe we would be able to identify the ragam of the song.

Below I implement 3 simple CNN using the Dogs vs Cats Dataset from Kaggle. The first CNN uses regular Convolutions a Fully connected network to classify the images. The second approach uses Image Augmentation. For some reason, I did not get a better performance with Image Augumentation. Thirdly I use the pre-trained Inception v3 network.



1. Basic Convolutional Neural Network in Tensorflow & Keras

You can view the Colab notebook here – Cats_vs_dogs_1.ipynb

Here some important parts of the notebook

Create CNN Model

  • Use 3 Convolution + Max pooling layers with 32,64 and 128 filters respectively
  • Flatten the data
  • Have 2 Fully connected layers with 128, 512 neurons with relu activation
  • Use sigmoid for binary classification
In [0]:
model = tf.keras.models.Sequential([
    tf.keras.layers.Conv2D(32,(3,3),activation='relu',input_shape=(150,150,3)),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Conv2D(64,(3,3),activation='relu'),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Conv2D(128,(3,3),activation='relu'),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Flatten(),
    tf.keras.layers.Dense(128,activation='relu'),
    tf.keras.layers.Dense(512,activation='relu'),
    tf.keras.layers.Dense(1,activation='sigmoid')
])

Print model summary

In [13]:
model.summary()
Model: "sequential"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
conv2d (Conv2D)              (None, 148, 148, 32)      896
_________________________________________________________________
max_pooling2d (MaxPooling2D) (None, 74, 74, 32)        0
_________________________________________________________________
conv2d_1 (Conv2D)            (None, 72, 72, 64)        18496
_________________________________________________________________
max_pooling2d_1 (MaxPooling2 (None, 36, 36, 64)        0
_________________________________________________________________
conv2d_2 (Conv2D)            (None, 34, 34, 128)       73856
_________________________________________________________________
max_pooling2d_2 (MaxPooling2 (None, 17, 17, 128)       0
_________________________________________________________________
flatten (Flatten)            (None, 36992)             0
_________________________________________________________________
dense (Dense)                (None, 128)               4735104
_________________________________________________________________
dense_1 (Dense)              (None, 512)               66048
_________________________________________________________________
dense_2 (Dense)              (None, 1)                 513
=================================================================
Total params: 4,894,913
Trainable params: 4,894,913
Non-trainable params: 0
_________________________________________________________________

Use the Adam Optimizer with binary cross entropy

model.compile(optimizer='adam',
             loss='binary_crossentropy',
             metrics=['accuracy'])

Perform Gradient Descent

  • Do Gradient Descent for 15 epochs
history=model.fit(train_generator,
                 validation_data=validation_generator,
                 steps_per_epoch=100,
                 epochs=15,
                 validation_steps=50,
                 verbose=2)
Epoch 1/15
100/100 - 13s - loss: 0.6821 - accuracy: 0.5425 - val_loss: 0.6484 - val_accuracy: 0.6131
Epoch 2/15
100/100 - 13s - loss: 0.6227 - accuracy: 0.6456 - val_loss: 0.6161 - val_accuracy: 0.6394
Epoch 3/15
100/100 - 13s - loss: 0.5975 - accuracy: 0.6719 - val_loss: 0.5558 - val_accuracy: 0.7206
Epoch 4/15
100/100 - 13s - loss: 0.5480 - accuracy: 0.7241 - val_loss: 0.5431 - val_accuracy: 0.7138
Epoch 5/15
100/100 - 13s - loss: 0.5182 - accuracy: 0.7447 - val_loss: 0.4839 - val_accuracy: 0.7606
Epoch 6/15
100/100 - 13s - loss: 0.4773 - accuracy: 0.7781 - val_loss: 0.5029 - val_accuracy: 0.7506
Epoch 7/15
100/100 - 13s - loss: 0.4466 - accuracy: 0.7972 - val_loss: 0.4573 - val_accuracy: 0.7912
Epoch 8/15
100/100 - 13s - loss: 0.4395 - accuracy: 0.7997 - val_loss: 0.4252 - val_accuracy: 0.8119
Epoch 9/15
100/100 - 13s - loss: 0.4314 - accuracy: 0.8019 - val_loss: 0.4931 - val_accuracy: 0.7481
Epoch 10/15
100/100 - 13s - loss: 0.4309 - accuracy: 0.7969 - val_loss: 0.4203 - val_accuracy: 0.8109
Epoch 11/15
100/100 - 13s - loss: 0.4329 - accuracy: 0.7916 - val_loss: 0.4189 - val_accuracy: 0.8069
Epoch 12/15
100/100 - 13s - loss: 0.4248 - accuracy: 0.8050 - val_loss: 0.4476 - val_accuracy: 0.7925
Epoch 13/15
100/100 - 13s - loss: 0.3868 - accuracy: 0.8306 - val_loss: 0.3900 - val_accuracy: 0.8236
Epoch 14/15
100/100 - 13s - loss: 0.3710 - accuracy: 0.8328 - val_loss: 0.4520 - val_accuracy: 0.7900
Epoch 15/15
100/100 - 13s - loss: 0.3654 - accuracy: 0.8353 - val_loss: 0.3999 - val_accuracy: 0.8100













Plot results

    • Plot training and validation accuracy



  • Plot training and validation loss













#-----------------------------------------------------------
# Retrieve a list of list results on training and test data
# sets for each training epoch
#-----------------------------------------------------------
acc      = history.history[     'accuracy' ]
val_acc  = history.history[ 'val_accuracy' ]
loss     = history.history[    'loss' ]
val_loss = history.history['val_loss' ]

epochs   = range(len(acc)) # Get number of epochs

#------------------------------------------------
# Plot training and validation accuracy per epoch
#------------------------------------------------
plt.plot  ( epochs,     acc,label="training accuracy" )
plt.plot  ( epochs, val_acc, label='validation acuracy' )
plt.title ('Training and validation accuracy')
plt.legend()

plt.figure()

#------------------------------------------------
# Plot training and validation loss per epoch
#------------------------------------------------
plt.plot  ( epochs,     loss , label="training loss")
plt.plot  ( epochs, val_loss,label="validation loss" )
plt.title ('Training and validation loss'   )
plt.legend()





2. CNN with Image Augmentation

You can check the Cats_vs_Dogs_2.ipynb

Including the important parts of this implementation below

Use Image Augumentation

Use Image Augumentation to improve performance

  • Use the same model parameters as before
  • Perform the following image augmentation
    • width, height shift
    • shear and zoom

    Note: Adding rotation made the performance worse

import tensorflow as tf
from tensorflow import keras
from tensorflow.keras.optimizers import RMSprop
from tensorflow.keras.preprocessing.image import ImageDataGenerator
model = tf.keras.models.Sequential([
    tf.keras.layers.Conv2D(32,(3,3),activation='relu',input_shape=(150,150,3)),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Conv2D(64,(3,3),activation='relu'),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Conv2D(128,(3,3),activation='relu'),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Flatten(),
    tf.keras.layers.Dense(128,activation='relu'),
    tf.keras.layers.Dense(512,activation='relu'),
    tf.keras.layers.Dense(1,activation='sigmoid')
])


train_datagen = ImageDataGenerator(
      rescale=1./255,
      #rotation_range=90,
      width_shift_range=0.2,
      height_shift_range=0.2,
      shear_range=0.2,
      zoom_range=0.2)
      #horizontal_flip=True,
      #fill_mode='nearest')

validation_datagen = ImageDataGenerator(rescale=1./255)
#
train_generator = train_datagen.flow_from_directory(train_dir,
                                                    batch_size=32,
                                                    class_mode='binary',
                                                    target_size=(150, 150))
# --------------------
# Flow validation images in batches of 20 using test_datagen generator
# --------------------
validation_generator =  validation_datagen.flow_from_directory(validation_dir,
                                                         batch_size=32,
                                                         class_mode  = 'binary',
                                                         target_size = (150, 150))

# Use Adam Optmizer
model.compile(optimizer='adam',
             loss='binary_crossentropy',
             metrics=['accuracy'])
Found 20000 images belonging to 2 classes.
Found 5000 images belonging to 2 classes.

Perform Gradient Descent

history=model.fit(train_generator,
                 validation_data=validation_generator,
                 steps_per_epoch=100,
                 epochs=15,
                 validation_steps=50,
                 verbose=2)
Epoch 1/15
100/100 - 27s - loss: 0.5716 - accuracy: 0.6922 - val_loss: 0.4843 - val_accuracy: 0.7744
Epoch 2/15
100/100 - 27s - loss: 0.5575 - accuracy: 0.7084 - val_loss: 0.4683 - val_accuracy: 0.7750
Epoch 3/15
100/100 - 26s - loss: 0.5452 - accuracy: 0.7228 - val_loss: 0.4856 - val_accuracy: 0.7665
Epoch 4/15
100/100 - 27s - loss: 0.5294 - accuracy: 0.7347 - val_loss: 0.4654 - val_accuracy: 0.7812
Epoch 5/15
100/100 - 27s - loss: 0.5352 - accuracy: 0.7350 - val_loss: 0.4557 - val_accuracy: 0.7981
Epoch 6/15
100/100 - 26s - loss: 0.5136 - accuracy: 0.7453 - val_loss: 0.4964 - val_accuracy: 0.7621
Epoch 7/15
100/100 - 27s - loss: 0.5249 - accuracy: 0.7334 - val_loss: 0.4959 - val_accuracy: 0.7556
Epoch 8/15
100/100 - 26s - loss: 0.5035 - accuracy: 0.7497 - val_loss: 0.4555 - val_accuracy: 0.7969
Epoch 9/15
100/100 - 26s - loss: 0.5024 - accuracy: 0.7487 - val_loss: 0.4675 - val_accuracy: 0.7728
Epoch 10/15
100/100 - 27s - loss: 0.5015 - accuracy: 0.7500 - val_loss: 0.4276 - val_accuracy: 0.8075
Epoch 11/15
100/100 - 26s - loss: 0.5002 - accuracy: 0.7581 - val_loss: 0.4193 - val_accuracy: 0.8131
Epoch 12/15
100/100 - 27s - loss: 0.4733 - accuracy: 0.7706 - val_loss: 0.5209 - val_accuracy: 0.7398
Epoch 13/15
100/100 - 27s - loss: 0.4999 - accuracy: 0.7538 - val_loss: 0.4109 - val_accuracy: 0.8075
Epoch 14/15
100/100 - 27s - loss: 0.4550 - accuracy: 0.7859 - val_loss: 0.3770 - val_accuracy: 0.8288
Epoch 15/15
100/100 - 26s - loss: 0.4688 - accuracy: 0.7688 - val_loss: 0.4764 - val_accuracy: 0.7786

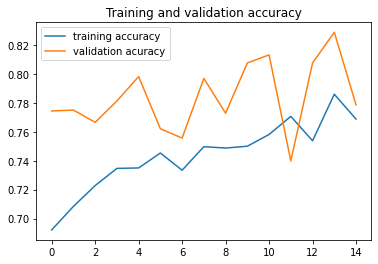

Plot results

  • Plot training and validation accuracy
  • Plot training and validation loss
In [15]:
import matplotlib.pyplot as plt
#-----------------------------------------------------------
# Retrieve a list of list results on training and test data
# sets for each training epoch
#-----------------------------------------------------------
acc      = history.history[     'accuracy' ]
val_acc  = history.history[ 'val_accuracy' ]
loss     = history.history[    'loss' ]
val_loss = history.history['val_loss' ]

epochs   = range(len(acc)) # Get number of epochs

#------------------------------------------------
# Plot training and validation accuracy per epoch
#------------------------------------------------
plt.plot  ( epochs,     acc,label="training accuracy" )
plt.plot  ( epochs, val_acc, label='validation acuracy' )
plt.title ('Training and validation accuracy')
plt.legend()

plt.figure()

#------------------------------------------------
# Plot training and validation loss per epoch
#------------------------------------------------
plt.plot  ( epochs,     loss , label="training loss")
plt.plot  ( epochs, val_loss,label="validation loss" )
plt.title ('Training and validation loss'   )
plt.legend()



Implementation using Inception Network V3

The implementation is in the Colab notebook Cats_vs_Dog_3.ipynb

This is implemented as below

Use Inception V3

import os

from tensorflow.keras import layers
from tensorflow.keras import Model


from tensorflow.keras.applications.inception_v3 import InceptionV3
pre_trained_model = InceptionV3(input_shape = (150, 150, 3),
                                include_top = False,
                                weights = 'imagenet')


for layer in pre_trained_model.layers:
  layer.trainable = False

# pre_trained_model.summary()

last_layer = pre_trained_model.get_layer('mixed7')
print('last layer output shape: ', last_layer.output_shape)
last_output = last_layer.output
Downloading data from https://storage.googleapis.com/tensorflow/keras-applications/inception_v3/inception_v3_weights_tf_dim_ordering_tf_kernels_notop.h5
87916544/87910968 [==============================] - 1s 0us/step
last layer output shape:  (None, 7, 7, 768)

Use Layer 7 of Inception Network

  • Use Image Augumentation
  • Use Adam Optimizer
In [0]:
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras.optimizers import RMSprop
from tensorflow.keras.preprocessing.image import ImageDataGenerator
# Flatten the output layer to 1 dimension
x = layers.Flatten()(last_output)
# Add a fully connected layer with 1,024 hidden units and ReLU activation
x = layers.Dense(1024, activation='relu')(x)
# Add a dropout rate of 0.2
x = layers.Dropout(0.2)(x)
# Add a final sigmoid layer for classification
x = layers.Dense  (1, activation='sigmoid')(x)

model = Model( pre_trained_model.input, x)
#train_datagen = ImageDataGenerator( rescale = 1.0/255. )
#validation_datagen = ImageDataGenerator( rescale = 1.0/255. )

train_datagen = ImageDataGenerator(
      rescale=1./255,
      #rotation_range=90,
      width_shift_range=0.2,
      height_shift_range=0.2,
      shear_range=0.2,
      zoom_range=0.2)
      #horizontal_flip=True,
      #fill_mode='nearest')

validation_datagen = ImageDataGenerator(rescale=1./255)
#
train_generator = train_datagen.flow_from_directory(train_dir,
                                                    batch_size=32,
                                                    class_mode='binary',
                                                    target_size=(150, 150))
# --------------------
# Flow validation images in batches of 20 using test_datagen generator
# --------------------
validation_generator =  validation_datagen.flow_from_directory(validation_dir,
                                                         batch_size=32,
                                                         class_mode  = 'binary',
                                                         target_size = (150, 150))


model.compile(optimizer='adam',
             loss='binary_crossentropy',
             metrics=['accuracy'])
Found 20000 images belonging to 2 classes.
Found 5000 images belonging to 2 classes.

Fit model

history=model.fit(train_generator,
                 validation_data=validation_generator,
                 steps_per_epoch=100,
                 epochs=15,
                 validation_steps=50,
                 verbose=2)
Epoch 1/15
100/100 - 31s - loss: 0.5961 - accuracy: 0.8909 - val_loss: 0.1919 - val_accuracy: 0.9456
Epoch 2/15
100/100 - 30s - loss: 0.2002 - accuracy: 0.9259 - val_loss: 0.1025 - val_accuracy: 0.9550
Epoch 3/15
100/100 - 30s - loss: 0.1618 - accuracy: 0.9366 - val_loss: 0.0920 - val_accuracy: 0.9581
Epoch 4/15
100/100 - 29s - loss: 0.1442 - accuracy: 0.9381 - val_loss: 0.0960 - val_accuracy: 0.9600
Epoch 5/15
100/100 - 30s - loss: 0.1402 - accuracy: 0.9381 - val_loss: 0.0703 - val_accuracy: 0.9794
Epoch 6/15
100/100 - 30s - loss: 0.1437 - accuracy: 0.9413 - val_loss: 0.1090 - val_accuracy: 0.9531
Epoch 7/15
100/100 - 30s - loss: 0.1325 - accuracy: 0.9428 - val_loss: 0.0756 - val_accuracy: 0.9670
Epoch 8/15
100/100 - 29s - loss: 0.1341 - accuracy: 0.9491 - val_loss: 0.0625 - val_accuracy: 0.9737
Epoch 9/15
100/100 - 29s - loss: 0.1186 - accuracy: 0.9513 - val_loss: 0.0934 - val_accuracy: 0.9581
Epoch 10/15
100/100 - 29s - loss: 0.1171 - accuracy: 0.9513 - val_loss: 0.0642 - val_accuracy: 0.9727
Epoch 11/15
100/100 - 29s - loss: 0.1018 - accuracy: 0.9591 - val_loss: 0.0930 - val_accuracy: 0.9606
Epoch 12/15
100/100 - 29s - loss: 0.1190 - accuracy: 0.9541 - val_loss: 0.0737 - val_accuracy: 0.9719
Epoch 13/15
100/100 - 29s - loss: 0.1223 - accuracy: 0.9494 - val_loss: 0.0740 - val_accuracy: 0.9695
Epoch 14/15
100/100 - 29s - loss: 0.1158 - accuracy: 0.9516 - val_loss: 0.0659 - val_accuracy: 0.9744
Epoch 15/15
100/100 - 29s - loss: 0.1168 - accuracy: 0.9591 - val_loss: 0.0788 - val_accuracy: 0.9669

Plot results

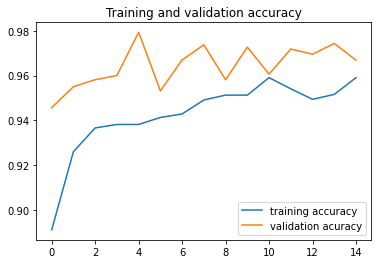

  • Plot training and validation accuracy
  • Plot training and validation loss
In [14]:
import matplotlib.pyplot as plt
#-----------------------------------------------------------
# Retrieve a list of list results on training and test data
# sets for each training epoch
#-----------------------------------------------------------
acc      = history.history[     'accuracy' ]
val_acc  = history.history[ 'val_accuracy' ]
loss     = history.history[    'loss' ]
val_loss = history.history['val_loss' ]

epochs   = range(len(acc)) # Get number of epochs

#------------------------------------------------
# Plot training and validation accuracy per epoch
#------------------------------------------------
plt.plot  ( epochs,     acc,label="training accuracy" )
plt.plot  ( epochs, val_acc, label='validation acuracy' )
plt.title ('Training and validation accuracy')
plt.legend()

plt.figure()

#------------------------------------------------
# Plot training and validation loss per epoch
#------------------------------------------------
plt.plot  ( epochs,     loss , label="training loss")
plt.plot  ( epochs, val_loss,label="validation loss" )
plt.title ('Training and validation loss'   )
plt.legend()



I intend to do some interesting stuff with Convolutional Neural Networks.

Watch this space!

See also
1. Architecting a cloud based IP Multimedia System (IMS)
2. Exploring Quantum Gate operations with QCSimulator
3. Big Data 6: The T20 Dance of Apache NiFi and yorkpy
4. The Many Faces of Latency
5. The Clash of the Titans in Test and ODI cricket

To see all posts click Index of posts

Where is the Cloud Computing bus going?

delorean_19813Technological innovation patterns have often repeated themselves in history. So it is with Cloud Computing. Familiar patterns of change seem to emerge today

Here are some of main trends that I see in Cloud Computing

Advent of containers: Containers are the new hot topic in cloud computing. In virtualization guest OS’es run separately. Running separate guest OS over the hypervisor is associated with a lot of overhead for each of the heavy weight OS’es. Containers can be used as an alternative to OS-level virtualization to run multiple isolated systems on a single host. Containers within a single operating system are much more efficient being light weight while being able to provide the same level of isolation. Containers run the same kernel as the host. Here is an interesting article on containers Containers, not virtual machines are the future of the cloud.

In many ways this containers over VM innovation pattern is reminiscent of the advantages of lightweight ‘threads’ over the heavy and slow ‘process’ approach in the OS world.  It is inevitable that containers will eventually score over VMs

Open ‘something’ over proprietary’ness: Technology over the decades has always moved into an ‘open’ approach over proprietary solutions. Hence, for example, we have OpenStack for creating instances, provisioning storage, network to do many things that are being done separately by VMWare, Citrix, Hyper-V. The intent is to have a common approach over several disparate approaches. In the networking world there is OpenFlow which tries to have a uniform interface to the many different standards maintained by the Ciscos, Junipers and Brocades of the world.  There are also other technologies like OpenCV (Computer Vision processing), Open VPN (VPN protocol) etc. In all these approaches there is either to move to unify or to provide a layer over and above the disparate approaches.  I am not sure whether Openstack will prevail, only time will tell. I personally think we will move to a level abstraction that will be even above that of Open Stack.

Software Defined Everything: Cloud Computing started with the need to be able to provision computing resources through a user interface or the Web portal. This was made possible, thanks to virtualization. Users could now define and request computing resources. Soon this led to the need for being able to programmatically request storage. The trick in storage is to do ‘thin-provisioning’ or to provision resources that barely satisfies the needs of the application. The application will be able to request more storage programmatically. Not to be outdone, networking followed suit when Software Defined Networking became a reality when Stanford and University of California came with the Open Flow protocol. We have now entered into the era of Software Defined Datacenter. This is a dominant theme in Cloud Computing.

These are some of the predominant trends that are emerging in the Cloud Computing arena.

I have spent more than 2 decades of my career in telecom, implementing telecom protocols, starting in the mid-1980s. The mid 1980s was the time when digital switches started to emerge. This was followed by a spate of protocols and dizzying innovations like mobile telephony, ISDN, Intelligent Networks, Softswitch, UMTS,3G, HSDPA, LTE etc.

I personally think that Cloud computing, to use a very frayed and hackneyed term, is at a similar ‘inflexion point’. Trends are emerging and we will soon be caught in the maelstrom of rapid change and innovation.

In this post I am going to do a Marty McFly of the ‘Back to Future’ trilogy. I am going to set the clock of the Delorean DMC-12 to 2020 and ‘Whoosh…..’

21 Apr 2020:

It is 21 Apr 2020 and a sunny day.  Here is a look at the Cloud Computing landscape

  • The Organization of Cloud Computing Standards (OCCS) now sets and governs the standards for all Cloud Providers of the world
  • Common APIs govern provisioning of instances on the cloud regardless of the Cloud Provider. Instances are defined by RPE values, RAM and IOPS, LB, DNS requirements
  • Networking bandwidth, security and storage are also standards based
  • Enterprises use a ‘diffuse deployment’ strategy where the organization’s workloads are deployed to multiple cloud providers.
  • Workloads are Cloud Provider agnostic.
  • Enterprise applications themselves may span multiple cloud providers for e.g. the e-commerce in Cloud Provider 1, Analytics on HPC instances on Cloud Provider 2 and secure applications on Private Cloud of Cloud Provider 3. Appropriate contracts are maintained between the Cloud Providers for charging for the usage.
  • Algorithms are used by enterprises to deploy workloads to cloud providers. The algorithms match the SLA and cost requirements of the application with those offered by the cloud provider to minimize the cost while meeting the SLA requirements of the applications.
  • Compute, storage and networking costs fluctuate and enterprises use algorithms to optimize the deployment of workloads. Workloads are migrated to take advantage of these price changes
  • Consolidation and acquisitions happen at an alarming pace. Cloud providers, storage, network and HPC providers aslo compete fiercely
  • Cloud providers are swallowed by others and some lose out. The battle scene is bloody

Time to get back to Delorean. This time the clock on Delorean is set to 2025

18 Sep 2025

Today it is 18 Sep 2025, and it is sunny again, coincidentally.

  • Cloud Computing is dead, mate. These days technology has moved to ‘Cloud Computing in a box’.
  • The technology of these times are ‘Haze works’ where the computation happens in the stratosphere over the ether …

So much for looking into the future. It is now time to get back to the reality of VMs

Re-working the Lucy Richardson algorithm in OpenCV

Here is my latest attempt at deblurring using the Lucy-Richardson algorithm. For this I looked up the chapter on Iterative deconvolution and the Lucy Richardson algorithm in scribd.

As mentioned in my previous posts the blurred image can be represented as
We can represent the ill-posed blurring problem as
b(x,y)  = i(x,y) ** k(x,y) + n(x,y)
where b(x,y) is the blurred image,  i(x,y) the original image, k(x,y) the blur kernel and n(x,y) the noise function. If our estimate of the original image is good then n(x,y) = 0

Hence b(x,y) – i(x,y) ** k(x,y) = 0
If we add i(x,y) to both sides of the equation we have
i(x,y) = i(x,y) + b(x,y) – i(x,y) ** k(x,y)
This can be represented iteratively as
ik+1(x,y) = ik(x,y) + b(x,y) – ik(x,y) ** k(x,y)  (1)

The underlined terms is the error correction.
We have to add the previous estimate with the error correction to get the new estimate.
Now we can seed this by setting ik(x,y) with the blurred image.
Hence our iteration 1 we would substitute
ik(x,y) = b(x,y) in Eqn (1)
So I have done this as follows
I have chosen a blur kernel
double a[9] = {0,40,0,0,40,0,0,40,0};

In the 1st iteration I convolve the blurred image with the kernel
cvFilter2D(im,im_conv_kernel,&kernel1,cvPoint(-1,-1));  – A
To get the error correction I subtract with the convolved term
cvSub(im,im_conv_kernel,im_correction, 0);  – B
Now I add the previous estimate with the error correction to get the new estimate
cvAdd(im,im_correction,im_new_est,NULL);   – C

Finally I repeat the process
im = im_new_est;
im = cvCloneImage(im_new_est);   – D
The convolved image, the error correction and the estimates of the nth iteration is shown below

The 7th,8th and 9th iteration are shown below

Note: You can clone the code from GitHub – An implementation of Lucy-Richardson algorithm in OpenCV

The complete code is given below
// deconvlucy.cpp : Defines the entry point for the console application.
//
// ===================================================================================================================================
// ========================================================Lucy-Richardson algorithm ===================================
//
// Author: Tinniam V Ganesh
// Developed 14 May 2012
// File: deconvlucy.cpp
//=====================================================================================================================================
#include “stdafx.h”
#include “math.h”
#include <cxcore.h>
#include <cv.h>
#include <highgui.h>

#define kappa 10000
int main(int argc, char ** argv)
{
IplImage* im;
IplImage* im_conv_kernel;
IplImage* im_correction;
IplImage* im_new;
IplImage* im_new_est;
IplImage* im1;

char str[80];
int i;
CvMat* cvShowDFT1(IplImage*, int, int,char*);
IplImage* cvShowInvDFT1(IplImage*, CvMat*, int, int,char*);

im1 = cvLoadImage(“kutty-1.jpg”);
cvNamedWindow(“Original-Color”, 0);
cvShowImage(“Original-Color”, im1);
im = cvLoadImage(“kutty-1.jpg”, CV_LOAD_IMAGE_GRAYSCALE );
if( !im )
return -1;

cvNamedWindow(“Original-Gray”, 0);
cvShowImage(“Original-Gray”, im);

// fk+1(x,y) = fk(x,y)

for(i=0;i < 10;i++) {

// Convolve f0(x,y)= g(x,y) with blur kernel
// f0(x,y) ** kernel

// Create a blur kernel
//double a[9]={-1,200,1,-1,200,1,-1,200,1};
//double a[9]={0,-1,0,-1,4,-1,0,-1,0};
//double a[9]={-4,40,4,-4,40,4,-4,40,4};
//double a[9]={-1,2,-1,-1,2,-1,-1,2,-1};
double a[9] = {0,40,0,0,40,0,0,40,0};
CvMat kernel1 = cvMat(3,3,CV_32FC1,a);

// Convolve the kernel with the blurred image as the seed i0(x,y) ** k(x,y)
im_conv_kernel= cvCloneImage(im);
cvFilter2D(im,im_conv_kernel,&kernel1,cvPoint(-1,-1));

cvNamedWindow(“conv”, 0);
cvShowImage(“conv”, im_conv_kernel);

// Subtract from blurred image. Error correction = b(x,y) – ik(x,y) ** k(x.y)
im_correction = cvCreateImage(cvSize(383,357),8,1);;
cvSub(im,im_conv_kernel,im_correction, 0);
cvNamedWindow(“Sub”, 0);
cvShowImage(“Sub”, im_correction);

// Add ik(x,y) with imCorrection – ik(x,y) + b(x,y) – ik(x,y) ** k(x,y)
im_new_est = cvCreateImage(cvSize(383,357),8,1);;
cvAdd(im,im_correction,im_new_est,NULL);

cvNamedWindow(“Add”, 0);
cvShowImage(“Add”, im_new_est);
sprintf(str,”Iteration – %d”,i);
cvNamedWindow(str, 0);
cvShowImage(str, im_new_est);

//Set the estimate as the previous estimate and repeat
im = im_new_est;
im = cvCloneImage(im_new_est);
}
cvWaitKey(-1);
return 0;
}

See also

1. Deblurring with OpenCV: Wiener filter reloaded
2. Dabbling with Wiener filter using OpenCV
3.Experiments with deblurring using OpenCV
4. De-blurring revisited with Wiener filter using OpenCV

You may also like
1.  What’s up Watson? Using IBM Watson’s QAAPI with Bluemix, NodeExpress – Part 1
2.  Bend it like Bluemix, MongoDB with autoscaling – Part 1
3. Informed choices through Machine Learning : Analyzing Kohli, Tendulkar and Dravid
4. A crime map of India in R: Crimes against women

Find me on Google+

Deblurring with OpenCV: Weiner filter reloaded

The problem of deblurring has really caught my fancy though I have only had partial success with it. Deblurring is basically an ill-posed problem where there are 2 unknowns namely the original image and a blurring function. There are many solutions to this problem involving a fair amount of mathematics.

Every now and then I will sneak into some white paper on this topic only to beat a hasty retreat gulping for air as I get drowned in the abstract math. Anyway my search led me to the following presentation “Deblurring in CT (Computer Tomography)” by Kriti Sen Sharma which seemed to make a lot of sense. This presentation shows how a PSF (Point Spread Function or the blur kernel) can blur an image as shown below.

Further it can be shown that the Wiener filter can be represented as
W(u) = P(u*)
——-
|P(u)|^2 + K

Where P(u) is PSD (Point Spread Distribution) of the blur kernel. K is S/N or signal to noise ratio.

For the PSF I took the Gaussian distribution given in Wikipedia – Gaussian blur given by

I tried with various values of SIGMA. The best value was SIGMA = 0.014089642. I get just one pixel with a value of > 0.  This is shown below.

I also tried various values of K. The larger the K the clearer was the DFT INVERSE. This was the best I got.

I am still nowhere near removing the blur but I will get there sometime in the future.
Any and all comments welcome.

Note: You can clone the code from GitHub: Weiner filter reloaded

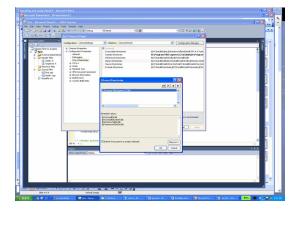

I am including the code executed with Visual Studio 2010 express

//======================================================================================================================
// Wiener filter implemention using Gaussian blur kernel
// Developed by: Tinniam V Ganesh
// Date: 11 May 2012
//======================================================================================================================
#include “stdafx.h”
#include “math.h”
#include <cxcore.h>
#include <cv.h>
#include <highgui.h>

#define kappa 10000
int main(int argc, char ** argv)
{
int height,width,step,channels,depth;
uchar* data1;
CvMat *dft_A;
CvMat *dft_B;
CvMat *dft_C;
IplImage* im;
IplImage* im1;
IplImage* image_ReB;
IplImage* image_ImB;

IplImage* image_ReC;
IplImage* image_ImC;
IplImage* complex_ImC;
CvScalar val;
IplImage* k_image_hdr;
int i,j,k;

FILE *fp;
fp = fopen(“test.txt”,”w+”);
int dft_M,dft_N;
int dft_M1,dft_N1;

CvMat* cvShowDFT1(IplImage*, int, int,char*);
void cvShowInvDFT1(IplImage*, CvMat*, int, int,char*);

im1 = cvLoadImage(“kutty-1.jpg”);
cvNamedWindow(“Original-Color”, 0);
cvShowImage(“Original-Color”, im1);
im = cvLoadImage(“kutty-1.jpg”, CV_LOAD_IMAGE_GRAYSCALE );
if( !im )
return -1;

cvNamedWindow(“Original-Gray”, 0);
cvShowImage(“Original-Gray”, im);
IplImage* k_image;
int rowLength= 11;
long double kernels[11*11];
CvMat kernel;
int x,y;
long double PI_F=3.14159265358979;

//long double SIGMA = 0.84089642;
long double SIGMA = 0.014089642;
//long double SIGMA = 0.00184089642;
long double EPS = 2.718;
long double numerator,denominator;
long double value,value1;
long double a,b,c,d;

numerator = (pow((float)-3,2) + pow((float) 0,2))/(2*pow((float)SIGMA,2));
printf(“Numerator=%f\n”,numerator);
denominator = sqrt((float) (2 * PI_F * pow(SIGMA,2)));
printf(“denominator=%1.8f\n”,denominator);

value = (pow((float)EPS, (float)-numerator))/denominator;
printf(“Value=%1.8f\n”,value);
for(x = -5; x < 6; x++){
for (y = -5; y < 6; y++)
{
//numerator = (pow((float)x,2) + pow((float) y,2))/(2*pow((float)SIGMA,2));
numerator = (pow((float)x,2) + pow((float)y,2))/(2.0*pow(SIGMA,2));
denominator = sqrt((2.0 * 3.14159265358979 * pow(SIGMA,2)));
value = (pow(EPS,-numerator))/denominator;
printf(” %1.8f “,value);
kernels[x*rowLength +y+55] = (float)value;

}
printf(“\n”);
}
printf(“———————————\n”);
for (i=-5; i < 6; i++){
for(j=-5;j < 6;j++){
printf(” %1.8f “,kernels[i*rowLength +j+55]);
}
printf(“\n”);
}
kernel= cvMat(rowLength, // number of rows
rowLength, // number of columns
CV_32FC1, // matrix data type
&kernels);
k_image_hdr = cvCreateImageHeader( cvSize(rowLength,rowLength), IPL_DEPTH_32F,1);
k_image = cvGetImage(&kernel,k_image_hdr);

height = k_image->height;
width = k_image->width;
step = k_image->widthStep/sizeof(float);
depth = k_image->depth;
channels = k_image->nChannels;
//data1 = (float *)(k_image->imageData);
data1 = (uchar *)(k_image->imageData);

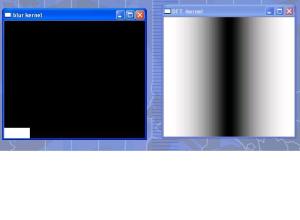

cvNamedWindow(“blur kernel”, 0);
cvShowImage(“blur kernel”, k_image);

dft_M = cvGetOptimalDFTSize( im->height – 1 );
dft_N = cvGetOptimalDFTSize( im->width – 1 );
//dft_M1 = cvGetOptimalDFTSize( im->height+99 – 1 );
//dft_N1 = cvGetOptimalDFTSize( im->width+99 – 1 );
dft_M1 = cvGetOptimalDFTSize( im->height+3 – 1 );
dft_N1 = cvGetOptimalDFTSize( im->width+3 – 1 );
printf(“dft_N1=%d,dft_M1=%d\n”,dft_N1,dft_M1);

// Perform DFT of original image
dft_A = cvShowDFT1(im, dft_M1, dft_N1,”original”);
//Perform inverse (check)
//cvShowInvDFT1(im,dft_A,dft_M1,dft_N1, “original”); – Commented as it overwrites the DFT
// Perform DFT of kernel
dft_B = cvShowDFT1(k_image,dft_M1,dft_N1,”kernel”);
//Perform inverse of kernel (check)
//cvShowInvDFT1(k_image,dft_B,dft_M1,dft_N1, “kernel”);- Commented as it overwrites the DFT
// Multiply numerator with complex conjugate
dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );
printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

// Multiply DFT(blurred image) * complex conjugate of blur kernel
cvMulSpectrums(dft_A,dft_B,dft_C,CV_DXT_MUL_CONJ);
//cvShowInvDFT1(im,dft_C,dft_M1,dft_N1,”blur1?);

// Split Fourier in real and imaginary parts
image_ReC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
complex_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 2);
printf(“%d %d %d %d\n”, dft_M,dft_N,dft_M1,dft_N1);
//cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );
cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );

// Compute A^2 + B^2 of denominator or blur kernel
image_ReB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);

// Split Real and imaginary parts
cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
cvPow( image_ReB, image_ReB, 2.0);
cvPow( image_ImB, image_ImB, 2.0);
cvAdd(image_ReB, image_ImB, image_ReB,0);
val = cvScalarAll(kappa);
cvAddS(image_ReB,val,image_ReB,0);
//Divide Numerator/A^2 + B^2
cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
cvDiv(image_ImC, image_ReB, image_ImC, 1.0);

// Merge Real and complex parts
cvMerge(image_ReC, image_ImC, NULL, NULL, complex_ImC);
// Perform Inverse
cvShowInvDFT1(im, (CvMat *)complex_ImC,dft_M1,dft_N1,”Weiner o/p k=10000 SIGMA=0.014089642″);
cvWaitKey(-1);
return 0;
}

CvMat* cvShowDFT1(IplImage* im, int dft_M, int dft_N,char* src)
{
IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;
CvMat* dft_A, tmp;
IplImage* image_Re;
IplImage* image_Im;
char str[80];
double m, M;
realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);
cvScale(im, realInput, 1.0, 0.0);
cvZero(imaginaryInput);
cvMerge(realInput, imaginaryInput, NULL, NULL, complexInput);

dft_A = cvCreateMat( dft_M, dft_N, CV_64FC2 );
image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

// copy A to dft_A and pad dft_A with zeros
cvGetSubRect( dft_A, &tmp, cvRect(0,0, im->width, im->height));
cvCopy( complexInput, &tmp, NULL );
if( dft_A->cols > im->width )
{
cvGetSubRect( dft_A, &tmp, cvRect(im->width,0, dft_A->cols – im->width, im->height));
cvZero( &tmp );
}
// no need to pad bottom part of dft_A with zeros because of
// use nonzero_rows parameter in cvDFT() call below

cvDFT( dft_A, dft_A, CV_DXT_FORWARD, complexInput->height );
strcpy(str,”DFT -“);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );
// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvAdd( image_Re, image_Im, image_Re, NULL);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)
cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
cvShowImage(str, image_Re);
return(dft_A);
}

void cvShowInvDFT1(IplImage* im, CvMat* dft_A, int dft_M, int dft_N,char* src)
{
IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;
IplImage * image_Re;
IplImage * image_Im;
double m, M;
char str[80];
realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);
image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

//cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, complexInput->height );
cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, dft_M);
strcpy(str,”DFT INVERSE – “);
strcat(str,src);
cvNamedWindow(str, 0);
// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );
// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvAdd( image_Re, image_Im, image_Re, NULL);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)
cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
//cvCvtColor(image_Re, image_Re, CV_GRAY2RGBA);
cvShowImage(str, image_Re);
}

See also
– Experiments with deblurring using OpenCV
– De-blurring revisited with Wiener filter using OpenCV
–  Dabbling with Wiener filter using OpenCV
– Re-working the Lucy-Richardson Algorithm in OpenCV

You may also like
1.  What’s up Watson? Using IBM Watson’s QAAPI with Bluemix, NodeExpress – Part 1
2.  Bend it like Bluemix, MongoDB with autoscaling – Part 1
3. Informed choices through Machine Learning : Analyzing Kohli, Tendulkar and Dravid
4. A crime map of India in R: Crimes against women

Find me on Google+

De-blurring revisited with Wiener filter using OpenCV

In this post I continue to experiment with the de-blurring of images using the Wiener filter. For details on the Wiener filter, please look at my earlier post “Dabbling with Wiener filter using OpenCV”.  Thanks to Egli Simon, Switzerland for pointing out a bug in the earlier post which I have now fixed.  The Wiener filter attempts to de-blur by assuming that the source signal is convolved with a blur kernel in the presence of noise.   I have also included the blur kernel as estimated by E. Simon in the code. I am including the de-blurring with 3 different blur kernel radii and different values for the Wiener constant K.  While the de-blurring is still a long way off there is some success.

One of the reasons I have assumed a non-blind blur kernel and try to de-convolve with that. The Wiener filter tries to minimize the Mean Square Error (MSE)  which can be expressed as
e(f) = E[X(f) – X1(f)]^2                                – (1)

where e(f) is the Mean Square Error(MSE) in the frequency domain, X(f) is the original image and X1(f) is the estimated signal which we get by de-convolving the Wiener filter with the observed blurred image i.e. and E[] is the expectation

X1(f) = G(f) * Y(f)                                        -(2)
where G(f) is the Wiener de-convolution filter and Y(f) is the observed blurred image
Substituting (2) in (1) we get
e(f) = E[X(f) – G(f) *Y(f)]^2

If the above equation is solved we can effectively remove the blur.
Feel free to post comments, opinions or ideas.

Watch this space …
I will be back! Hasta la Vista!


Note: You can clone the code below from Git Hib – Another implementation of Weiner filter in OpenCV

The complete code is included below and should work as is

/*
============================================================================
Name : deblur_wiener.c
Author : Tinniam V Ganesh & Egli Simon
Version :
Copyright :
Description : Implementation of Wiener filter in OpenCV
============================================================================
*/

#include <stdio.h>
#include <stdlib.h>
#include “cxcore.h”
#include “cv.h”
#include “highgui.h”

#define kappa 10.0
#define rad 8

int main(int argc, char ** argv)
{
int height,width,step,channels,depth;
uchar* data1;

CvMat *dft_A;
CvMat *dft_B;

CvMat *dft_C;
IplImage* im;
IplImage* im1;

IplImage* image_ReB;
IplImage* image_ImB;

IplImage* image_ReC;
IplImage* image_ImC;
IplImage* complex_ImC;
CvScalar val;

IplImage* k_image_hdr;
int i,j,k;
char str[80];
FILE *fp;
fp = fopen(“test.txt”,”w+”);

int dft_M,dft_N;
int dft_M1,dft_N1;

CvMat* cvShowDFT1(IplImage*, int, int,char*);
void cvShowInvDFT1(IplImage*, CvMat*, int, int,char*);

im1 = cvLoadImage( “kutty-1.jpg”,1 );
cvNamedWindow(“Original-color”, 0);
cvShowImage(“Original-color”, im1);
im = cvLoadImage( “kutty-1.jpg”, CV_LOAD_IMAGE_GRAYSCALE );
if( !im )
return -1;

cvNamedWindow(“Original-gray”, 0);
cvShowImage(“Original-gray”, im);

// Create a random noise matrix
fp = fopen(“test.txt”,”w+”);
int val_noise[357*383];
for(i=0; i <im->height;i++){
for(j=0;j<im->width;j++){
fprintf(fp, “%d “,(383*i+j));
val_noise[383*i+j] = rand() % 128;
}
fprintf(fp, “\n”);
}

CvMat noise = cvMat(im->height,im->width, CV_8UC1,val_noise);

// Add the random noise matric to the image
cvAdd(im,&noise,im, 0);

cvNamedWindow(“Original + Noise”, 0);
cvShowImage(“Original + Noise”, im);

cvSmooth( im, im, CV_GAUSSIAN, 7, 7, 0.5, 0.5 );
cvNamedWindow(“Gaussian Smooth”, 0);
cvShowImage(“Gaussian Smooth”, im);

// Create a blur kernel
IplImage* k_image;
float r = rad;
float radius=((int)(r)*2+1)/2.0;

int rowLength=(int)(2*radius);
printf(“rowlength %d\n”,rowLength);
float kernels[rowLength*rowLength];
printf(“rowl: %i”,rowLength);
int norm=0; //Normalization factor
int x,y;
CvMat kernel;
for(x = 0; x < rowLength; x++)
for (y = 0; y < rowLength; y++)
if (sqrt((x – (int)(radius) ) * (x – (int)(radius) ) + (y – (int)(radius))* (y – (int)(radius))) <= (int)(radius))
norm++;
// Populate matrix
for (y = 0; y < rowLength; y++) //populate array with values
{
for (x = 0; x < rowLength; x++) {
if (sqrt((x – (int)(radius) ) * (x – (int)(radius) ) + (y – (int)(radius))
* (y – (int)(radius))) <= (int)(radius)) {
//kernels[y * rowLength + x] = 255;
kernels[y * rowLength + x] =1.0/norm;
printf(“%f “,1.0/norm);
}
else{
kernels[y * rowLength + x] =0;
}
}
}

/*for (i=0; i < rowLength; i++){
for(j=0;j < rowLength;j++){
printf(“%f “, kernels[i*rowLength +j]);
}
}*/

kernel= cvMat(rowLength, // number of rows
rowLength, // number of columns
CV_32FC1, // matrix data type
&kernels);
k_image_hdr = cvCreateImageHeader( cvSize(rowLength,rowLength), IPL_DEPTH_32F,1);
k_image = cvGetImage(&kernel,k_image_hdr);

height = k_image->height;
width = k_image->width;
step = k_image->widthStep/sizeof(float);
depth = k_image->depth;

channels = k_image->nChannels;
//data1 = (float *)(k_image->imageData);
data1 = (uchar *)(k_image->imageData);
cvNamedWindow(“blur kernel”, 0);
cvShowImage(“blur kernel”, k_image);

dft_M = cvGetOptimalDFTSize( im->height – 1 );
dft_N = cvGetOptimalDFTSize( im->width – 1 );

//dft_M1 = cvGetOptimalDFTSize( im->height+99 – 1 );
//dft_N1 = cvGetOptimalDFTSize( im->width+99 – 1 );

dft_M1 = cvGetOptimalDFTSize( im->height+3 – 1 );
dft_N1 = cvGetOptimalDFTSize( im->width+3 – 1 );

printf(“dft_N1=%d,dft_M1=%d\n”,dft_N1,dft_M1);

// Perform DFT of original image
dft_A = cvShowDFT1(im, dft_M1, dft_N1,”original”);
//Perform inverse (check)
//cvShowInvDFT1(im,dft_A,dft_M1,dft_N1, “original”); – Commented as it overwrites the DFT

// Perform DFT of kernel
dft_B = cvShowDFT1(k_image,dft_M1,dft_N1,”kernel”);
//Perform inverse of kernel (check)
//cvShowInvDFT1(k_image,dft_B,dft_M1,dft_N1, “kernel”);- Commented as it overwrites the DFT

// Multiply numerator with complex conjugate
dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );

printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

// Multiply DFT(blurred image) * complex conjugate of blur kernel
cvMulSpectrums(dft_A,dft_B,dft_C,CV_DXT_MUL_CONJ);
//cvShowInvDFT1(im,dft_C,dft_M1,dft_N1,”blur1″);

// Split Fourier in real and imaginary parts
image_ReC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
complex_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 2);
printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

//cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );
cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );

// Compute A^2 + B^2 of denominator or blur kernel
image_ReB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);

// Split Real and imaginary parts
cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
cvPow( image_ReB, image_ReB, 2.0);
cvPow( image_ImB, image_ImB, 2.0);
cvAdd(image_ReB, image_ImB, image_ReB,0);
val = cvScalarAll(kappa);
cvAddS(image_ReB,val,image_ReB,0);

//Divide Numerator/A^2 + B^2
cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
cvDiv(image_ImC, image_ReB, image_ImC, 1.0);

// Merge Real and complex parts
cvMerge(image_ReC, image_ImC, NULL, NULL, complex_ImC);
sprintf(str,”O/P Wiener – K=%6.4f rad=%d”,kappa,rad);

// Perform Inverse
cvShowInvDFT1(im, (CvMat *)complex_ImC,dft_M1,dft_N1,str);

cvWaitKey(-1);
return 0;
}

CvMat* cvShowDFT1(IplImage* im, int dft_M, int dft_N,char* src)
{
IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;
CvMat* dft_A, tmp;
IplImage* image_Re;
IplImage* image_Im;
char str[80];
double m, M;
realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);
cvScale(im, realInput, 1.0, 0.0);
cvZero(imaginaryInput);
cvMerge(realInput, imaginaryInput, NULL, NULL, complexInput);

dft_A = cvCreateMat( dft_M, dft_N, CV_64FC2 );
image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

// copy A to dft_A and pad dft_A with zeros
cvGetSubRect( dft_A, &tmp, cvRect(0,0, im->width, im->height));
cvCopy( complexInput, &tmp, NULL );
if( dft_A->cols > im->width )
{
cvGetSubRect( dft_A, &tmp, cvRect(im->width,0, dft_A->cols – im->width, im->height));
cvZero( &tmp );
}

// no need to pad bottom part of dft_A with zeros because of
// use nonzero_rows parameter in cvDFT() call below
cvDFT( dft_A, dft_A, CV_DXT_FORWARD, complexInput->height );
strcpy(str,”DFT -“);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );

// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvAdd( image_Re, image_Im, image_Re, NULL);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
cvShowImage(str, image_Re);
return(dft_A);
}

void cvShowInvDFT1(IplImage* im, CvMat* dft_A, int dft_M, int dft_N,char* src)
{
IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;
IplImage * image_Re;
IplImage * image_Im;
double m, M;
char str[80];
realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);
image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

//cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, complexInput->height );
cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, dft_M);
strcpy(str,”DFT INVERSE – “);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );

// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvAdd( image_Re, image_Im, image_Re, NULL);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
//cvCvtColor(image_Re, image, CV_GRAY2RGBA);
cvShowImage(str, image_Re);
}
See also
– De-blurring revisited with Wiener filter using OpenCV
–  Dabbling with Wiener filter using OpenCV
– Deblurring with OpenCV: Wiener filter reloaded
– Re-working the Lucy-Richardson Algorithm in OpenCV

You may also like
1.  What’s up Watson? Using IBM Watson’s QAAPI with Bluemix, NodeExpress – Part 1
2.  Bend it like Bluemix, MongoDB with autoscaling – Part 1
3. Informed choices through Machine Learning : Analyzing Kohli, Tendulkar and Dravid
4. A crime map of India in R: Crimes against women

Find me on Google+

Dabbling with Wiener filter using OpenCV

The technique of reduction of blur and restoration of images is an extremely important field of study and finds numerous applications in medical imaging and astronomy.  One such technique is Wiener filter named after the originator of the technique Prof. Norbert Wiener (1894-1964).  It is usually important to consider these techniques in the frequency domain.

This can be represented diagrammatically as follows

Given that we have
b(x,y) = i(x,y) * k(x,y) + n(x,y)                                       – (1)
where b(x,y) is the blurred image, i(x,y) is the latent image, k(x,y) is the blur kernel and n(x,y) is random noise.
The above in frequency domain can be written as
B(u,v) = I(u,v) * K(u,v) + N(u,v)                                     –  (2)
Inv K(u,v) represents the inverse of the blur kernel and can be determined  from equation (2) by disregarding the noise.  However the inverse filter has high gain at low frequencies and hence tends to amplify noise at these low frequencies.
Wiener filter and Butterworth filter try to minimize these
Wiener filter attempts to minimize the Mean Squared Error (MSE) of the following equation
e^2 = E[( i(x,y)   – mean (i (x,y))^2]

The frequency domain expression for this
T(u,v)           =
K*(u,v)
——–                                                   -(3)
| K(u,v)|^2 + Sn(u,v)/Sf(u,v)
Where T(u,v) is the Wiener filter
K*(u,v) is the complex conjugate of the blur kernel
|K(u,v)|^2  = k^2 + m^2 where k and m are the coefficients of the real and imaginary parts of the blur kernel
Sn(u,v) is the power spectra of noise
Sf(u,v) is the power spectra of the signal
Equation (3) can be represented as
T(u,v)            =
K*(u,v)
——–                                                   –   (4)
| K(u,v)|^2 +  L
Where L is a small positive value
Eqn(4) represents Wiener filter

The lecture  “Image deblurring by Frequency Domain Operations” by Prof. Harvey Rhody is worth a read.
One thing that puzzles me is the Wiener filter is the inverse of the blur kernel with the additional factor of ‘L’ in the denominator. The contribution of the factor ‘L’ will be small, so the Wiener filter appears to be the same as a regular inverse filter. I am probably missing something here(??).

You can clone the code below from Git Hub – Weiner filter with OpenCV

The steps to create the Wiener filter were as follow

1. Create the gray image of the blurred original

2. Add additive noise to the blurred original

      // Add the random noise matric to the image
	cvAdd(im,&noise,im, 0);
3.Gaussian smooth the noisy blurred image
   cvSmooth( im, im, CV_GAUSSIAN, 7, 7, 0.5, 0.5 );
4.Perform DFT and inverse DFT (to check) of the original image (noisy, blurred image)
  // Perform DFT of original image
  dft_A = cvShowDFT1(im, dft_M1, dft_N1,"original");
  //Perform inverse (check)
  cvShowInvDFT1(im,dft_A,dft_M1,dft_N1, "original");
5.Perform DFT and inverse DFT of blur kernel
  // Perform DFT of kernel
  dft_B = cvShowDFT1(k_image,dft_M1,dft_N1,"kernel");
  //Perform inverse of kernel (check)
  cvShowInvDFT1(k_image,dft_B,dft_M1,dft_N1, "kernel");

6.Multiply DFT of original with complex conjugate of blur kernel
   // Multiply numerator with complex conjugate
  dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );
7.Calculate modulus of blur kernel (denominator)
  // Split Real and imaginary parts
  cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
  cvPow( image_ReB, image_ReB, 2.0);
  cvPow( image_ImB, image_ImB, 2.0);
  cvAdd(image_ReB, image_ImB, image_ReB,0);
8.Add Wiener constant to modulus of blur kernel (denominator)
 val = cvScalarAll(0.00001);
  cvAddS(image_ReB,val,image_ReB,0);
9.Divide the numerator with the denominator
 //Divide Numerator/A^2 + B^2
  cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
  cvDiv(image_ImC, image_ReB, image_ImC, 1.0);
10.Perform inverse DFT of the filtered signal

// Perform Inverse

 cvShowInvDFT1(im, (CvMat *)complex_ImC,dft_M1,dft_N1,"Output - Wiener filter");

There is still a residual amount of blur (do also read De-blurring revisited with Wiener filter using OpenCV). This can be tried for different values of the Wiener introduced noise.
Note: I would like to give special thanks to Egli Simon who identified the bug in my previous version of the code. The line to display the inverse DFT of the original image & the blur kernel overwrote the DFT contents and I was not getting the Wiener filter to work
Note: You can clone the code below from Git Hub – Weiner filter with OpenCV
The complete code is given below (re-worked and should work as is)
/*
============================================================================
Name : wiener1.c
Author : Tinniam V Ganesh & Egli Simon
Version :
Copyright :
Description : Wiener filter implementation in OpenCV (22 Nov 2011)
============================================================================
*/
#include <stdio.h>
#include <stdlib.h>
#include “cxcore.h”
#include “cv.h”
#include “highgui.h”

#define kappa 1
#define rad 2
int main(int argc, char ** argv)
{
int height,width,step,channels,depth;
uchar* data1;
CvMat *dft_A;
CvMat *dft_B;
CvMat *dft_C;
IplImage* im;
IplImage* im1;
IplImage* image_ReB;
IplImage* image_ImB;
IplImage* image_ReC;
IplImage* image_ImC;
IplImage* complex_ImC;
CvScalar val;
IplImage* k_image_hdr;
int i,j,k;

FILE *fp;
fp = fopen(“test.txt”,”w+”);

int dft_M,dft_N;
int dft_M1,dft_N1;
CvMat* cvShowDFT1(IplImage*, int, int,char*);
void cvShowInvDFT1(IplImage*, CvMat*, int, int,char*);
im1 = cvLoadImage( “kutty-1.jpg”,1 );
cvNamedWindow(“Original-color”, 0);
cvShowImage(“Original-color”, im1);
im = cvLoadImage( “kutty-1.jpg”, CV_LOAD_IMAGE_GRAYSCALE );
if( !im )
return -1;
cvNamedWindow(“Original-gray”, 0);
cvShowImage(“Original-gray”, im);

// Create a random noise matrix
fp = fopen(“test.txt”,”w+”);
int val_noise[357*383];
for(i=0; i <im->height;i++){
for(j=0;j<im->width;j++){
fprintf(fp, “%d “,(383*i+j));
val_noise[383*i+j] = rand() % 128;
}
fprintf(fp, “\n”);
}

CvMat noise = cvMat(im->height,im->width, CV_8UC1,val_noise);

// Add the random noise matric to the image
cvAdd(im,&noise,im, 0);
cvNamedWindow(“Original + Noise”, 0);
cvShowImage(“Original + Noise”, im);
cvSmooth( im, im, CV_GAUSSIAN, 7, 7, 0.5, 0.5 );
cvNamedWindow(“Gaussian Smooth”, 0);
cvShowImage(“Gaussian Smooth”, im);

// Create a blur kernel
IplImage* k_image;
float r = rad;
float radius=((int)(r)*2+1)/2.0;
int rowLength=(int)(2*radius);
printf(“rowlength %d\n”,rowLength);
float kernels[rowLength*rowLength];
printf(“rowl: %i”,rowLength);
int norm=0; //Normalization factor
int x,y;
CvMat kernel;
for(x = 0; x < rowLength; x++)
for (y = 0; y < rowLength; y++)
if (sqrt((x – (int)(radius) ) * (x – (int)(radius) ) + (y – (int)(radius))* (y – (int)(radius))) <= (int)(radius))
norm++;
// Populate matrix
for (y = 0; y < rowLength; y++) //populate array with values
{
for (x = 0; x < rowLength; x++) {
if (sqrt((x – (int)(radius) ) * (x – (int)(radius) ) + (y – (int)(radius))
* (y – (int)(radius))) <= (int)(radius)) {
//kernels[y * rowLength + x] = 255;
kernels[y * rowLength + x] =1.0/norm;
printf(“%f “,1.0/norm);
}
else{
kernels[y * rowLength + x] =0;
}
}
}

/*for (i=0; i < rowLength; i++){
for(j=0;j < rowLength;j++){
printf(“%f “, kernels[i*rowLength +j]);
}
}*/

kernel= cvMat(rowLength, // number of rows
rowLength, // number of columns
CV_32FC1, // matrix data type
&kernels);
k_image_hdr = cvCreateImageHeader( cvSize(rowLength,rowLength), IPL_DEPTH_32F,1);
k_image = cvGetImage(&kernel,k_image_hdr);

height = k_image->height;
width = k_image->width;
step = k_image->widthStep/sizeof(float);
depth = k_image->depth;

channels = k_image->nChannels;
//data1 = (float *)(k_image->imageData);
data1 = (uchar *)(k_image->imageData);
cvNamedWindow(“blur kernel”, 0);
cvShowImage(“blur kernel”, k_image);

dft_M = cvGetOptimalDFTSize( im->height – 1 );
dft_N = cvGetOptimalDFTSize( im->width – 1 );

//dft_M1 = cvGetOptimalDFTSize( im->height+99 – 1 );
//dft_N1 = cvGetOptimalDFTSize( im->width+99 – 1 );

dft_M1 = cvGetOptimalDFTSize( im->height+3 – 1 );
dft_N1 = cvGetOptimalDFTSize( im->width+3 – 1 );

printf(“dft_N1=%d,dft_M1=%d\n”,dft_N1,dft_M1);

// Perform DFT of original image
dft_A = cvShowDFT1(im, dft_M1, dft_N1,”original”);
//Perform inverse (check)
//cvShowInvDFT1(im,dft_A,dft_M1,dft_N1, “original”); – Commented as it overwrites the DFT

// Perform DFT of kernel
dft_B = cvShowDFT1(k_image,dft_M1,dft_N1,”kernel”);
//Perform inverse of kernel (check)
//cvShowInvDFT1(k_image,dft_B,dft_M1,dft_N1, “kernel”);- Commented as it overwrites the DFT

// Multiply numerator with complex conjugate
dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );

printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

// Multiply DFT(blurred image) * complex conjugate of blur kernel
cvMulSpectrums(dft_A,dft_B,dft_C,CV_DXT_MUL_CONJ);
//cvShowInvDFT1(im,dft_C,dft_M1,dft_N1,”blur1″);

// Split Fourier in real and imaginary parts
image_ReC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
complex_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 2);

printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

//cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );
cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );

// Compute A^2 + B^2 of denominator or blur kernel
image_ReB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);

// Split Real and imaginary parts
cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
cvPow( image_ReB, image_ReB, 2.0);
cvPow( image_ImB, image_ImB, 2.0);
cvAdd(image_ReB, image_ImB, image_ReB,0);

val = cvScalarAll(kappa);
cvAddS(image_ReB,val,image_ReB,0);

//Divide Numerator/A^2 + B^2
cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
cvDiv(image_ImC, image_ReB, image_ImC, 1.0);

// Merge Real and complex parts
cvMerge(image_ReC, image_ImC, NULL, NULL, complex_ImC);

// Perform Inverse
cvShowInvDFT1(im, (CvMat *)complex_ImC,dft_M1,dft_N1,”O/p Wiener k=1 rad=2″);

cvWaitKey(-1);
return 0;
}

CvMat* cvShowDFT1(IplImage* im, int dft_M, int dft_N,char* src)
{
IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;

CvMat* dft_A, tmp;

IplImage* image_Re;
IplImage* image_Im;

char str[80];

double m, M;

realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);
cvScale(im, realInput, 1.0, 0.0);
cvZero(imaginaryInput);
cvMerge(realInput, imaginaryInput, NULL, NULL, complexInput);
dft_A = cvCreateMat( dft_M, dft_N, CV_64FC2 );
image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
// copy A to dft_A and pad dft_A with zeros
cvGetSubRect( dft_A, &tmp, cvRect(0,0, im->width, im->height));
cvCopy( complexInput, &tmp, NULL );
if( dft_A->cols > im->width )
{
cvGetSubRect( dft_A, &tmp, cvRect(im->width,0, dft_A->cols – im->width, im->height));
cvZero( &tmp );
}

// no need to pad bottom part of dft_A with zeros because of
// use nonzero_rows parameter in cvDFT() call below

cvDFT( dft_A, dft_A, CV_DXT_FORWARD, complexInput->height );

strcpy(str,”DFT -“);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );
// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvAdd( image_Re, image_Im, image_Re, NULL);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
cvShowImage(str, image_Re);
return(dft_A);
}

void cvShowInvDFT1(IplImage* im, CvMat* dft_A, int dft_M, int dft_N,char* src)
{

IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;
IplImage * image_Re;
IplImage * image_Im;
double m, M;
char str[80];

realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);

image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

//cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, complexInput->height );
cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, dft_M);
strcpy(str,”DFT INVERSE – “);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );

// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvAdd( image_Re, image_Im, image_Re, NULL);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
//cvCvtColor(image_Re, image_Re, CV_GRAY2RGBA);

cvShowImage(str, image_Re);

}

Checkout my book ‘Deep Learning from first principles Second Edition- In vectorized Python, R and Octave’.  My book is available on Amazon  as paperback ($18.99) and in kindle version($9.99/Rs449).

You may also like my companion book “Practical Machine Learning with R and Python:Second Edition- Machine Learning in stereo” available in Amazon in paperback($12.99) and Kindle($9.99/Rs449) versions.

See also
– Experiments with deblurring using OpenCV
–  Dabbling with Wiener filter using OpenCV
– Deblurring with OpenCV: Wiener filter reloaded
– Re-working the Lucy-Richardson Algorithm in OpenCV


Find me on Google+

Experiments with deblurring using OpenCV

Deblurring refers to the removal of the blur from blurred images.  The removal of blur is extremely important in the fields of medical imaging, astronomy etc. In medical imaging this is also known as denoising and finds extensive applications in ultra sonic and CT images.  Similarly in astronomy there is a need to denoise and deblur images that are taken by space telescopes for e.g. the Hubble telescope.

Deblurring is really a tough problem to solve though it has been around for ages. While going through some of the white papers on deblurring I have been particularly fascinated by the results. The blurred images are restored back to its pristine, original sharp image. It is almost magical and is amazing to know that a computer program is able to detect and remove patches, almost bordering on “computer perception”.

However the solution to the problem is very involved. Almost every white paper I read in deblurring techniques involves abstruse mathematical concepts, enough to make one break into ‘cold sweat’ as I did several times. There are several well known methods of removing blur from images. The chief among them are the Richardson-Lucy method, the Weiner filter (do read my post “Dabbling with Wiener filter using OpenCV“), Radon transform or some form Bayesian filtering etc. All of these methods perform the converse of convolution known as de-convolution.  Almost all approaches are based on the following equation

b(x) = k(x) * i(x) + n(x)                           – (1)

Where b(x) – is the blurred image, i(x) is the latent (good) image, k(x) is the blur kernel also known as the Point Spread Function (PSF) and n(x) is random noise.

The key fact to note in the above equation is that the blurred image (b) is a convolution of a good latent image with a blur kernel plus some additive noise. So the good latent image is convolved by a blurring function or the points spread function and results in the blurred image.

Now there are 2 unknowns in the above equation, both the blur kernel and the latent image. To obtain the latent image a process known as de-convolution has to be performed.

If equation (1) is converted to the frequency domain using the Fourier transform on equation (1) we have

B(w) =  K(w) * I(w) + N(w)
Ignoring noise we have
I(w)  = B(w)/K(w)
or
I(w)  = DFT [B(w)]/DFT[K(w)]
Or i(t) = Inverse DFT {[DFT B(w)]/DFT[K(w)]}
If DFT[K(w)] can be represented as A+iB then the above can be represented as
i(t) = Inverse DFT { DFT [B(w)] * (A – iB)}
—————————
A**2 + B**2
where A-iB is the complex conjugate of the DFT of the blur kernel

This is known as de-convolution. There are two types of de-convolution blind and non-blind. In the non-blind de-convolution method an initial blur kernel is assumed and is used to de-blur the image. In the blind convolution an initial estimate of the blur kernel is made and the latent image is successively iterated to obtain the best image. This is based on a method known as maximum-a-posteriori (MAP) to iterate through successive estimations of better and better blur kernels. The Richardson-Lucy algorithm also tries to estimate the blur kernel from the blurred image.

In this post I  perform de-convolution using an estimated blur kernel. As can be seen there is a slight reduction of the blur. By choosing a large kernel probably a 100 x 100 matrix would give a better result.

You can clone this code from GitHub at “Deblurring by deconvolution in OpenCV

Kindly do share any thoughts, ideas that you have. I have included the full code for this. Feel free to use the code and tweak it as you see fit and please share any findings you come across.

Steps in the de-convolution process

  1. Perform DFT on blurred image. Also perform Inverse DFT to verify whether the process of DFT is correct or not. Make sure that the line for performing the inverse is commented out as it overwrites the DFT array.
           // Perform DFT of original image
		dft_A = cvShowDFT(im, dft_M1, dft_N1,"original");
		//Perform inverse (check)
		cvShowInvDFT(im,dft_A,dft_M1,dft_N1,fp, "original");

2. Perform DFT on blur kernel. Also perform inverse DFT to get back original contents. Make sure that the line for performing the inverse is commented out as it overwrites the DFT array.

		// Perform DFT of kernel
		dft_B = cvShowDFT(k_image,dft_M1,dft_N1,"kernel");
		//Perform inverse of kernel (check)
		cvShowInvDFT(k_image,dft_B,dft_M1,dft_N1,fp, "kernel");


    3. Multiply the DFT of image with the complex conjugate of the DFT of the blur kernel
		// Multiply numerator with complex conjugate
		dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );
     4. Compute A**2 + B**2
		// Split Real and imaginary parts
		cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
    	        cvPow( image_ReB, image_ReB, 2.0);
		cvPow( image_ImB, image_ImB, 2.0);
		cvAdd(image_ReB, image_ImB, image_ReB,0);
     5. Divide numerator with A**2 + B**2
		//Divide Numerator/A^2 + B^2
		cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
		cvDiv(image_ImC, image_ReB, image_ImC, 1.0);
                  6.Merge real and imaginary parts
		// Merge Real and complex parts
		cvMerge(image_ReC, image_ImC, NULL, NULL, complex_ImC);
         7.Finally perform Inverse DFT
		cvShowInvDFT(im, complex_ImC,dft_M1,dft_N1,fp,"deblur");

I have included the complete re-worked code below for the process of de-convolution. There was a small bug in the initial version. This has been fixed and the code below should work as is.

Note: You can clone this code from GitHub at “Deblurring by deconvolution in OpenCV
Do also take a look at my post “Reworking the Lucy Richardson algorithm in OpenCV
/*
============================================================================
Name : deconv.c
Author : Tinniam V Ganesh
Version :
Copyright :
Description : Deconvolution in OpenCV
============================================================================
*/

#include
#include
#include “cxcore.h”
#include “cv.h”
#include “highgui.h”

int main(int argc, char ** argv)
{
int height,width,step,channels;
uchar* data;
uchar* data1;
int i,j,k;
float s;

CvMat *dft_A;
CvMat *dft_B;
CvMat *dft_C;
IplImage* im;
IplImage* im1;
IplImage* image_ReB;
IplImage* image_ImB;
IplImage* image_ReC;
IplImage* image_ImC;
IplImage* complex_ImC;

IplImage* image_ReDen;
IplImage* image_ImDen;

FILE *fp;
fp = fopen(“test.txt”,”w+”);

int dft_M,dft_N;
int dft_M1,dft_N1;
CvMat* cvShowDFT();
void cvShowInvDFT();

im1 = cvLoadImage( “kutty-1.jpg”,1 );
cvNamedWindow(“original-color”, 0);
cvShowImage(“original-color”, im1);
im = cvLoadImage( “kutty-1.jpg”, CV_LOAD_IMAGE_GRAYSCALE );
if( !im )
return -1;

cvNamedWindow(“original-gray”, 0);
cvShowImage(“original-gray”, im);
// Create blur kernel (non-blind)
//float vals[]={.000625,.000625,.000625,.003125,.003125,.003125,.000625,.000625,.000625};
//float vals[]={-0.167,0.333,0.167,-0.167,.333,.167,-0.167,.333,.167};

float vals[]={.055,.055,.055,.222,.222,.222,.055,.055,.055};
CvMat kernel = cvMat(3, // number of rows
3, // number of columns
CV_32FC1, // matrix data type
vals);
IplImage* k_image_hdr;
IplImage* k_image;

k_image_hdr = cvCreateImageHeader(cvSize(3,3),IPL_DEPTH_64F,2);
k_image = cvCreateImage(cvSize(3,3),IPL_DEPTH_64F,1);
k_image = cvGetImage(&kernel,k_image_hdr);

/*IplImage* k_image;
k_image = cvLoadImage( “kernel4.bmp”,0 );*/
cvNamedWindow(“blur kernel”, 0);

height = k_image->height;
width = k_image->width;
step = k_image->widthStep;

channels = k_image->nChannels;
//data1 = (float *)(k_image->imageData);
data1 = (uchar *)(k_image->imageData);

cvShowImage(“blur kernel”, k_image);

dft_M = cvGetOptimalDFTSize( im->height – 1 );
dft_N = cvGetOptimalDFTSize( im->width – 1 );

//dft_M1 = cvGetOptimalDFTSize( im->height+99 – 1 );
//dft_N1 = cvGetOptimalDFTSize( im->width+99 – 1 );

dft_M1 = cvGetOptimalDFTSize( im->height+3 – 1 );
dft_N1 = cvGetOptimalDFTSize( im->width+3 – 1 );

// Perform DFT of original image
dft_A = cvShowDFT(im, dft_M1, dft_N1,”original”);
//Perform inverse (check & comment out) – Commented as it overwrites dft_A
//cvShowInvDFT(im,dft_A,dft_M1,dft_N1,fp, “original”);

// Perform DFT of kernel
dft_B = cvShowDFT(k_image,dft_M1,dft_N1,”kernel”);
//Perform inverse of kernel (check & comment out) – commented as it overwrites dft_B
//cvShowInvDFT(k_image,dft_B,dft_M1,dft_N1,fp, “kernel”);

// Multiply numerator with complex conjugate
dft_C = cvCreateMat( dft_M1, dft_N1, CV_64FC2 );

printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

// Multiply DFT(blurred image) * complex conjugate of blur kernel
cvMulSpectrums(dft_A,dft_B,dft_C,CV_DXT_MUL_CONJ);

// Split Fourier in real and imaginary parts
image_ReC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
complex_ImC = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 2);

printf(“%d %d %d %d\n”,dft_M,dft_N,dft_M1,dft_N1);

//cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );
cvSplit( dft_C, image_ReC, image_ImC, 0, 0 );

// Compute A^2 + B^2 of denominator or blur kernel
image_ReB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);
image_ImB = cvCreateImage( cvSize(dft_N1, dft_M1), IPL_DEPTH_64F, 1);

// Split Real and imaginary parts
cvSplit( dft_B, image_ReB, image_ImB, 0, 0 );
cvPow( image_ReB, image_ReB, 2.0);
cvPow( image_ImB, image_ImB, 2.0);
cvAdd(image_ReB, image_ImB, image_ReB,0);

//Divide Numerator/A^2 + B^2
cvDiv(image_ReC, image_ReB, image_ReC, 1.0);
cvDiv(image_ImC, image_ReB, image_ImC, 1.0);

// Merge Real and complex parts
cvMerge(image_ReC, image_ImC, NULL, NULL, complex_ImC);

// Perform Inverse
cvShowInvDFT(im, complex_ImC,dft_M1,dft_N1,fp,”deblur”);
cvWaitKey(-1);
return 0;
}

CvMat* cvShowDFT(im, dft_M, dft_N,src)
IplImage* im;
int dft_M, dft_N;
char* src;
{
IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;

CvMat* dft_A, tmp;

IplImage* image_Re;
IplImage* image_Im;

char str[80];

double m, M;

realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);

cvScale(im, realInput, 1.0, 0.0);
cvZero(imaginaryInput);
cvMerge(realInput, imaginaryInput, NULL, NULL, complexInput);

dft_A = cvCreateMat( dft_M, dft_N, CV_64FC2 );
image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

// copy A to dft_A and pad dft_A with zeros
cvGetSubRect( dft_A, &tmp, cvRect(0,0, im->width, im->height));
cvCopy( complexInput, &tmp, NULL );
if( dft_A->cols > im->width )
{
cvGetSubRect( dft_A, &tmp, cvRect(im->width,0, dft_A->cols – im->width, im->height));
cvZero( &tmp );
}

// no need to pad bottom part of dft_A with zeros because of
// use nonzero_rows parameter in cvDFT() call below

cvDFT( dft_A, dft_A, CV_DXT_FORWARD, complexInput->height );

strcpy(str,”DFT -“);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );

// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvAdd( image_Re, image_Im, image_Re, NULL);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
cvShowImage(str, image_Re);
return(dft_A);
}

void cvShowInvDFT(im, dft_A, dft_M, dft_N,fp, src)
IplImage* im;
CvMat* dft_A;
int dft_M,dft_N;
FILE *fp;
char* src;
{

IplImage* realInput;
IplImage* imaginaryInput;
IplImage* complexInput;

IplImage * image_Re;
IplImage * image_Im;

double m, M;
char str[80];

realInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
imaginaryInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 1);
complexInput = cvCreateImage( cvGetSize(im), IPL_DEPTH_64F, 2);

image_Re = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);
image_Im = cvCreateImage( cvSize(dft_N, dft_M), IPL_DEPTH_64F, 1);

//cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, complexInput->height );
cvDFT( dft_A, dft_A, CV_DXT_INV_SCALE, dft_M);
strcpy(str,”DFT INVERSE – “);
strcat(str,src);
cvNamedWindow(str, 0);

// Split Fourier in real and imaginary parts
cvSplit( dft_A, image_Re, image_Im, 0, 0 );

// Compute the magnitude of the spectrum Mag = sqrt(Re^2 + Im^2)
cvPow( image_Re, image_Re, 2.0);
cvPow( image_Im, image_Im, 2.0);
cvAdd( image_Re, image_Im, image_Re, NULL);
cvPow( image_Re, image_Re, 0.5 );

// Compute log(1 + Mag)
cvAddS( image_Re, cvScalarAll(1.0), image_Re, NULL ); // 1 + Mag
cvLog( image_Re, image_Re ); // log(1 + Mag)

cvMinMaxLoc(image_Re, &m, &M, NULL, NULL, NULL);
cvScale(image_Re, image_Re, 1.0/(M-m), 1.0*(-m)/(M-m));
//cvCvtColor(image_Re, image_Re, CV_GRAY2RGBA);

cvShowImage(str, image_Re);
}


Checkout my book ‘Deep Learning from first principles Second Edition- In vectorized Python, R and Octave’.  My book is available on Amazon  as paperback ($18.99) and in kindle version($9.99/Rs449).

You may also like my companion book “Practical Machine Learning with R and Python:Second Edition- Machine Learning in stereo” available in Amazon in paperback($12.99) and Kindle($9.99/Rs449) versions.

See also

My book ‘Practical Machine Learning with R and Python’ on Amazon
– De-blurring revisited with Wiener filter using OpenCV
–  Dabbling with Wiener filter using OpenCV
– Deblurring with OpenCV: Wiener filter reloaded
– Re-working the Lucy-Richardson Algorithm in OpenCV
You may also like
1.  What’s up Watson? Using IBM Watson’s QAAPI with Bluemix, NodeExpress – Part 1
2.  Bend it like Bluemix, MongoDB with autoscaling – Part 1
3. Informed choices through Machine Learning : Analyzing Kohli, Tendulkar and Dravid
4. A crime map of India in R: Crimes against women

Find me on Google+

Installing and using OpenCV with Visual Studio 2010 express

Here’s the low-down on installing and getting started with OpenCV on Visual Studio Express 2010 on Windows.

1) Download OpenCV2.2 from Source Forge
Download the OpenCV-2.2.0-win32-vs2010.exe as it already contains the libraries and the binaries required for running OpenCV.
You can untar the file into a directory named /opencv2.2/

2) Download and install Visual Studio 2010 express (free) version and install on your PC.

3) Once Visual Studio 2010  is installed open VC++ and select  “New Project” and choose Win32 Console Application for e.g. first

4) Include the any relevant OpenCV code into first.cpp (snippet given below)

5) Include the following 3 directories under
Browse to the folder containing the files below and select them
Project->first properties->VC++ Directories->Include Directories. Click Edit
.\opencv2.2\include
.\opencv2.2\include\opencv
.\opencv2.2\include\opencv2
Click Apply and OK

6) Now include the library path
Browse to the folder below

Project->first properties->Library Directories
.\opencv2.2\lib
Click Apply and OK

7) Now the last step is to include all the necessary OpenCV libraries during the linking phase
For this go to Project->first properties->Linker->Input->Additional Dependencies and cut and paste all the following libraries by clicking the “Edit”

opencv_calib3d220.lib
opencv_calib3d220d.lib
opencv_contrib220.lib
opencv_contrib220d.lib
opencv_core220.lib
opencv_core220d.lib
opencv_features2d220.lib
opencv_features2d220d.lib
opencv_ffmpeg220.lib
opencv_ffmpeg220d.lib
opencv_flann220.lib
opencv_flann220d.lib
opencv_gpu220.lib
opencv_gpu220d.lib
opencv_highgui220.lib
opencv_highgui220d.lib
opencv_imgproc220.lib
opencv_imgproc220d.lib
opencv_legacy220.lib
opencv_legacy220d.lib
opencv_ml220.lib
opencv_ml220d.lib
opencv_objdetect220.lib
opencv_objdetect220d.lib
opencv_ts220.lib
opencv_video220.lib
opencv_video220d.lib

Click Apply and Ok.

8) Copy the baboon.jpg from the .\opencv2.2\samples\cpp to your projects\first\first folder

9) Now you are good to go. Build by choosing Debug->Build Solution
It should through fine  when  you now run the code
You should see

Here is a sample snippet

#include "stdafx.h"
#include "cv.h"
#include "highgui.h"
int main( int argc, char** argv ) {
// cvLoadImage determines an image type and creates datastructure with appropriate size
    IplImage* img = cvLoadImage("baboon.jpg",1);
// create a window. Window name is determined by a supplied argument
    cvNamedWindow( "test", CV_WINDOW_AUTOSIZE );
    // Apply Gaussian smooth
    //cvSmooth( img, img, CV_GAUSSIAN, 9, 9, 0, 0 );
    cvErode (img, img,NULL,2);
// Display an image inside and window. Window name is determined by a supplied argument
    cvShowImage( "test", img );
    //Save image
        cvSaveImage( "c:\\shanthi\\baboon2.png", img, 0);
// wait indefinitely for keystroke
    cvWaitKey(0);
// release pointer to an object
    cvReleaseImage( &img );
// Destroy a window
    cvDestroyWindow( argv[1] );
}

Checkout my book ‘Deep Learning from first principles Second Edition- In vectorized Python, R and Octave’.  My book is available on Amazon  as paperback ($18.99) and in kindle version($9.99/Rs449).

You may also like my companion book “Practical Machine Learning with R and Python:Third Edition- Machine Learning in stereo” available in Amazon in paperback($12.99) and Kindle($9.99/Rs449) versions.

See also
– Experiments with deblurring using OpenCV
– De-blurring revisited with Wiener filter using OpenCV
–  Dabbling with Wiener filter using OpenCV
– Re-working the Lucy-Richardson Algorithm in OpenCV

You may also like
1.  What’s up Watson? Using IBM Watson’s QAAPI with Bluemix, NodeExpress – Part 1
2.  Bend it like Bluemix, MongoDB with autoscaling – Part 1
3. Informed choices through Machine Learning : Analyzing Kohli, Tendulkar and Dravid
4. A crime map of India in R: Crimes against women

Find me on Google+

Computer Vision: Ramblings on derivatives, histograms and contours

Images can be visualized to be functions of the form f(x,y) where f(x,y) represents the intensity at the pixel position ,y. However images can be grayscale, color or four channels and each channel may consist of integers or floating point numbers. However the changes in the values can be viewed as a continuous function. Here is a nice representation of an image as a continuous function (courtesy: Prof Darrell’s lecture at Berkeley on Filters)

Given that the image can be viewed as a continuous function in 2 or 3 axes we have derivatives that can be taken of the images. The derivates determine the maximum and minimum of this changing function. The key derivatives in image processing are the Sobel, the Scharr and the Laplacian filters. These provide the 1st order or 2nd order derivative and hence can be used for determining edges of an image.

I was keen on playing around with derivatives and also understanding how the histograms look like.

Here is the original image and its histogram. Clearly there is a nice spread of the values.

Sobel filter and its histogram

The output of the Sobel filter on the original image is shown. The edges with Sobel’s derivative somehow are not too pronounced. The Sobel derivate can be used for obtaining the gradient of the image. The corresponding histogram of the Sobel’s gradient is shown.

The code snippet ( The complete code is given below)

    IplImage* out_sobel = cvCreateImage( cvSize(img->width, img->height), IPL_DEPTH_16S, 1);
    cvSobel(in_gray, out_sobel, 1,1,7);
    cvShowImage("Sobel", out_sobel);

    //create an image to hold the histogram
    IplImage* histImage_Sobel = cvCreateImage(cvSize(300,400), 8, 1);

    //create a histogram to store the information from the image
    CvHistogram* histSobel = cvCreateHist(1, &hist_size, CV_HIST_ARRAY, ranges, 1);

    //calculate the histogram and apply to hist
    cvCalcHist( &histImage_Sobel, histSobel, 0, NULL );

    //grab the min and max values and their indeces
    cvGetMinMaxHistValue( histSobel, &min_value, &max_value, &min_idx, &max_idx);

    //scale the bin values so that they will fit in the image representation
    cvScale( histSobel->bins, histSobel->bins, ((double)histImage_Sobel->height)/max_value, 0 );

    //set all histogram values to 255
    cvSet( histImage_Sobel, cvScalarAll(255), 0 );

    //create a factor for scaling along the width
    bin_w = cvRound((double)histImage_Sobel->width/hist_size);

    for( i = 0; i < hist_size; i++ ) {
    //draw the histogram data onto the histogram image
    cvRectangle( histImage_Sobel, cvPoint(i*bin_w, histImage_Sobel->height),
    		   cvPoint((i+1)*bin_w,
    		   histImage_Sobel->height - cvRound(cvGetReal1D(histSobel->bins,i))),
    		   cvScalarAll(0), -1, 8, 0 );
    		//get the value at the current histogram bucket
    		float* bins = cvGetHistValue_1D(histSobel,i);
    		//increment the mean value
    		mean += bins[0];
    	}

    cvShowImage("Hist Sobel",histImage_Sobel);
...
...
(Please see Gavin S. Page's tutorial(vast.uccs.edu/~tboult/CS330/NOTES/OpenCVTutorial_II.ppt) on histograms)

Laplacian and its histogram

The Laplacian provides the 2nd order derivative and hence can be used to determine local maxima and local minima. The Laplacian provides for much more pronounced edges and can be used to extract features of an object of interest. Its corresponding histogram is also included.

Canny filter and Contours

The third filter is cvCanny which is most suitable for obtaining clear edges in an image. The canny is usually used along with cvFindContours to determine the general shape of an object. I used the canny filter which I passed to a contour detecting function. However the contour detecting function identified more than 228 contours most of which were useless except for 1 which had included the complete contour of the hand as shown.

However when I increased the max_depth to 1 I found that it was immediately able to get the complete contour of the hand besides a lot of extraneous contours.

I guess the challenge with the contour function is being able to programmatically reject all those contours which of lesser importance (possibly a future post).

Code for Sobel, Laplacian and Histograms

#include "cv.h"
#include "highgui.h"
#include "stdio.h"

int main(int argc, char** argv)
{
	IplImage* img = cvLoadImage("gazelle.jpg",1);
	IplImage* dst;
	IplImage* in_gray;
	int hist_size=30;
	float gray_ranges[] = { 0, 255 };
	float* ranges[]     = { gray_ranges};
	int min_idx,max_idx;
	float min_value,max_value;
	int bin_w;
	int i;
	float mean,variance;

	cvNamedWindow("Original",CV_WINDOW_AUTOSIZE);
	cvNamedWindow("histogram",CV_WINDOW_AUTOSIZE);
	cvNamedWindow("Sobel",CV_WINDOW_AUTOSIZE);
	cvNamedWindow("Hist Sobel",CV_WINDOW_AUTOSIZE);

	cvNamedWindow("Laplacian",CV_WINDOW_AUTOSIZE);
	cvNamedWindow("Hist Laplace",CV_WINDOW_AUTOSIZE);

	in_gray = cvCreateImage(cvSize(img->width, img->height), IPL_DEPTH_8U, 1);
	cvCvtColor(img, in_gray, CV_BGR2GRAY);
	cvShowImage("Original", in_gray);

	//create a rectangular area to evaluate
	CvRect rect = cvRect(0, 0, 300, 400 );
	//apply the rectangle to the image and establish a region of interest
	cvSetImageROI(in_gray, rect);

	//create an image to hold the histogram
	IplImage* histImage = cvCreateImage(cvSize(300,400), 8, 1);

	//create a histogram to store the information from the image
	CvHistogram* hist = cvCreateHist(1, &hist_size, CV_HIST_ARRAY, ranges, 1);

	//calculate the histogram and apply to hist
	cvCalcHist( &in_gray, hist, 0, NULL );

	//grab the min and max values and their indeces
	cvGetMinMaxHistValue( hist, &min_value, &max_value, &min_idx, &max_idx);

	//scale the bin values so that they will fit in the image representation
	cvScale( hist->bins, hist->bins, ((double)histImage->height)/max_value, 0 );

	//set all histogram values to 255
	cvSet( histImage, cvScalarAll(255), 0 );

	//create a factor for scaling along the width
	bin_w = cvRound((double)histImage->width/hist_size);

	for( i = 0; i < hist_size; i++ ) {
		//draw the histogram data onto the histogram image
		cvRectangle( histImage, cvPoint(i*bin_w, histImage->height),
		   cvPoint((i+1)*bin_w,
		   histImage->height - cvRound(cvGetReal1D(hist->bins,i))),
		   cvScalarAll(0), -1, 8, 0 );
		//get the value at the current histogram bucket
		float* bins = cvGetHistValue_1D(hist,i);
		//increment the mean value
		mean += bins[0];
	}

	//finish mean calculation
	mean /= hist_size;

	//go back through now that mean has been calculated in order to calculate variance
	for( i = 0; i < hist_size; i++ ) {
		float* bins = cvGetHistValue_1D(hist,i);
		variance += pow((bins[0] - mean),2);
	}
	//finish variance calculation
	variance /= hist_size;

	cvShowImage("histogram",histImage);

    IplImage* out_sobel = cvCreateImage( cvSize(img->width, img->height), IPL_DEPTH_16S, 1);
    cvSobel(in_gray, out_sobel, 1,1,7);
    cvShowImage("Sobel", out_sobel);

    //create an image to hold the histogram
    IplImage* histImage_Sobel = cvCreateImage(cvSize(300,400), 8, 1);

    //create a histogram to store the information from the image
    CvHistogram* histSobel = cvCreateHist(1, &hist_size, CV_HIST_ARRAY, ranges, 1);

    //calculate the histogram and apply to hist
    cvCalcHist( &histImage_Sobel, histSobel, 0, NULL );

    //grab the min and max values and their indeces
    cvGetMinMaxHistValue( histSobel, &min_value, &max_value, &min_idx, &max_idx);

    //scale the bin values so that they will fit in the image representation
    cvScale( histSobel->bins, histSobel->bins, ((double)histImage_Sobel->height)/max_value, 0 );

    //set all histogram values to 255
    cvSet( histImage_Sobel, cvScalarAll(255), 0 );

    //create a factor for scaling along the width
    bin_w = cvRound((double)histImage_Sobel->width/hist_size);

    for( i = 0; i < hist_size; i++ ) {
    //draw the histogram data onto the histogram image
    cvRectangle( histImage_Sobel, cvPoint(i*bin_w, histImage_Sobel->height),
    		   cvPoint((i+1)*bin_w,
    		   histImage_Sobel->height - cvRound(cvGetReal1D(histSobel->bins,i))),
    		   cvScalarAll(0), -1, 8, 0 );
    		//get the value at the current histogram bucket
    		float* bins = cvGetHistValue_1D(histSobel,i);
    		//increment the mean value
    		mean += bins[0];
    	}

    cvShowImage("Hist Sobel",histImage_Sobel);

    // Create Laplacian and the histogram for it
    IplImage *output=cvCreateImage( cvSize(img->width, img->height), IPL_DEPTH_16S, 1);
    cvLaplace(in_gray, output, 7);
    cvShowImage("Laplacian", output);

    //create an image to hold the histogram
     IplImage* histImage_Laplace = cvCreateImage(cvSize(300,400), 8, 1);

     //create a histogram to store the information from the image
     CvHistogram* histLaplace = cvCreateHist(1, &hist_size, CV_HIST_ARRAY, ranges, 1);

     //calculate the histogram and apply to hist
     cvCalcHist( &histImage_Laplace, histLaplace, 0, NULL );

     //grab the min and max values and their indeces
     cvGetMinMaxHistValue( histLaplace, &min_value, &max_value, &min_idx, &max_idx);

     //scale the bin values so that they will fit in the image representation
     cvScale( histLaplace->bins, histLaplace->bins, ((double)histImage_Laplace->height)/max_value, 0 );

     //set all histogram values to 255
     cvSet( histImage_Laplace, cvScalarAll(255), 0 );

     //create a factor for scaling along the width
     bin_w = cvRound((double)histImage_Laplace->width/hist_size);

     for( i = 0; i < hist_size; i++ ) {
     //draw the histogram data onto the histogram image
     cvRectangle( histImage_Laplace, cvPoint(i*bin_w, histImage_Laplace->height),
     		   cvPoint((i+1)*bin_w,
     		   histImage_Laplace->height - cvRound(cvGetReal1D(histLaplace->bins,i))),
     		   cvScalarAll(0), -1, 8, 0 );
     		//get the value at the current histogram bucket
     		float* bins = cvGetHistValue_1D(histLaplace,i);
     		//increment the mean value
     		mean += bins[0];
     	}

     cvShowImage("Hist Laplace",histImage_Laplace);

	cvWaitKey(0);

	printf("Mean= %f\n",mean);
	printf("variance=%f\n",variance);

	//clean up images
	cvReleaseImage(&histImage_Laplace);
	cvReleaseImage(&histImage_Sobel);
	cvReleaseImage(&histImage);
	cvReleaseImage(&in_gray);
	cvReleaseImage(&img);

	//remove windows
	cvDestroyWindow("Original");

	cvDestroyWindow("histogram");
}

Code for Canny & Contours
#include "cv.h"
#include "highgui.h"

#define CVX_RED		CV_RGB(0xff,0x00,0x00)
#define CVX_GREEN	CV_RGB(0x00,0xff,0x00)
#define CVX_BLUE	CV_RGB(0x00,0x00,0xff)

int main(int argc, char* argv[])
{
	CvSeq* c;
	int i;
	cvNamedWindow("Original", 1 );
	cvNamedWindow("Canny_Edge", 1 );
	cvNamedWindow("Contours", 1 );
	IplImage* img_8uc1 = cvLoadImage( argv[1], CV_LOAD_IMAGE_GRAYSCALE );
	IplImage* img_edge = cvCreateImage( cvGetSize(img_8uc1), 8, 1 );
	IplImage* img_8uc3 = cvCreateImage( cvGetSize(img_8uc1), 8, 3 );
	cvThreshold( img_8uc1, img_edge, 128, 255, CV_THRESH_BINARY );
	CvMemStorage* storage =cvCreateMemStorage(0);

	CvSeq* first_contour = NULL;

	int Nc;
	int n=0;

	cvShowImage("Original", img_8uc1);

    IplImage *out_canny=cvCreateImage( cvSize(img_8uc1->width, img_8uc1->height), IPL_DEPTH_8U, 1);
	cvCanny(img_8uc1, out_canny, 50.0 ,100.0, 3);
	cvShowImage("Canny_Edge", out_canny);

/*	Nc = cvFindContours(
			img_edge,
			storage,
			&first_contour,
			sizeof(CvContour),
			CV_RETR_LIST,
			CV_CHAIN_APPROX_SIMPLE,
			cvPoint(0,0)// Try all four values and see what happens
	);*/

	Nc = cvFindContours(
			out_canny,
			storage,
			&first_contour,
			sizeof(CvContour),
			CV_RETR_TREE,
			CV_CHAIN_APPROX_SIMPLE,
			cvPoint(0,0)// Try all four values and see what happens
	);

	printf("Total contours detected: %d\n",Nc);

	for(c=first_contour; c!=NULL; c=c->h_next )
	{
		cvCvtColor( img_8uc1, img_8uc3, CV_GRAY2BGR );
		cvDrawContours(
					img_8uc3,
					c,
					CVX_RED,
					CVX_BLUE,
					1,        // Try different values of max_level, and see what happens
					2,
					8,
					cvPoint(0,0));
			printf("Contour #%d\n",n);

			cvShowImage("Contours", img_8uc3 );
			printf(" %d elements: \n",c->total);

			for(i=0; i<c->total; ++i ) {
				CvPoint* p = CV_GET_SEQ_ELEM( CvPoint, c, i );
				printf("(%d,%d)\n",p->x,p->y);

			}
			cvWaitKey(0);
			n++;
	}
	printf("Finished all contours\n");
	cvCvtColor( img_8uc1, img_8uc3, CV_GRAY2BGR );
	cvShowImage( argv[0], img_8uc3 );
	cvWaitKey(0);
	cvDestroyWindow( argv[0] );
	cvReleaseImage( &img_8uc1 );
	cvReleaseImage( &img_8uc3 );
	cvReleaseImage( &img_edge );
	return 0;
}




Find me on Google+

OpenCV: Fun with filters and convolution

My initial encounter with filters, convolution and correlation in OpenCV made me play around with the filters for Gaussian smooth, erosion and dilation operations on random image files. However I found the experience rather unsatisfactory and I wanted to get a real feel for the working of these operations. Suddenly a thought struck me. Could I restore an old family photograph of my parents? The photograph has areas of white patches that had to be removed.

So I started to dig a little more into the filters, convolution and correlation matrices to get a better understanding.

This is the original photograph.

My Mom & late Dad
As can be seen there are large patches in several places in the photograph. So I decided to use cvFloodFill to fill these areas.

a)      cvFloodFill: Since I had to identify the spots where these patches occurred I took a dump of the cvMat of the image which I resized to about 29 x 42. By inspecting the data I could see that the patches typically corresponded to intensity values that were greater than 170. So I decided that the cvFloodFill should happen with the seed around these parts.   So the code checks the intensity values > 170 and calls cvFloodFill. After much tweaking I could see that the white patches were now filled with gray (newval intensity= 150.0) So I was able to get rid of the white patches.



b)      cvSmooth: The next step that I took was to perform a Gaussian smooth of the picture. This smoothed out the filled parts



c)       cvErode & cvDilate: I followed this with cvErode to smooth out the dark areas  and cvDilate to smooth out the bright areas.



d)      cvFilter2D:  I wanted to now sharpen the image. I did a lot of experiments with different kernel values but I found this to be extremely difficult to work with. After much trial and error I came with a kernel values of
double a[9]={-1,20,1,-1,20,1,-1,20,1};
The sharpening was reasonable but there are areas where there are white streaks. I still need to figure out a kernel that can sharpen images. For this also to understand what was happening I tried to dump the values of the image to get a feel of where the values lay.



e)      cvSmooth: Finally I performed a cvSmooth of the filtered output.

While I have had fair success there is still a lot more left to be desired from the final version.
The complete process flow

The code is included below

#include “cv.h”
#include “highgui.h”
#include “stdio.h”
int main(int argc, char** argv)
{
IplImage* img = cvLoadImage(“dad_mom.jpg”,0);
IplImage* dst;
IplImage* dst1;
IplImage* dst2;
IplImage* dst3;
IplImage* dst4;
int i,j,k;
int height,width,step,channels;
uchar* data;
uchar* data1;
uchar* outdata;
CvScalar s;
CvScalar lodiff,highdiff,newval;
// get the image data
height    = img->height;
width     = img->width;
step      = img->widthStep;
channels  = img->nChannels;
data      = (uchar *)img->imageData;
double a[9]={-1,20,1,-1,20,1,-1,20,1};
//double a[9]={1/16,1/8,1/16,1/8,1/4,1/8,1/16,1/8,1/16};
double values[9]={1/16,0,-1/16,2/16,0,-2/16,1/16,0,-1/16};
CvPoint seed;
CvMat kernel= cvMat(3,3,CV_32FC1,a);
printf(“Processing a %d x %d image with %d channels\n”,height,width,channels);
// Create windows
cvNamedWindow(“Original”,CV_WINDOW_AUTOSIZE);
cvNamedWindow(“Flood Fill”,CV_WINDOW_AUTOSIZE);
cvNamedWindow(“Smooth”,CV_WINDOW_AUTOSIZE);
cvNamedWindow(“Erode”,CV_WINDOW_AUTOSIZE);
cvNamedWindow(“Dilate”,CV_WINDOW_AUTOSIZE);
cvNamedWindow(“Filter”,CV_WINDOW_AUTOSIZE);
cvNamedWindow(“Smooth1”,CV_WINDOW_AUTOSIZE);
// Original image
cvShowImage(“Original”, img);
/* Flood fill in white patches intensity > 170.0 */
highdiff=cvRealScalar(5.0);
lodiff=cvRealScalar(5.0);
newval=cvRealScalar(150.0);
for(i=0;i<height;i++) {
for(j=0;j<width;j++) {
for(k=0;k<channels;k++) {
//printf(“Data = %d \n”,data[i*step+j*channels+k]);
if((data[i*step+j*channels+k]) > 170.0)
{
seed=cvPoint(j,i);
//printf(“data=%dFlood
seed=%d,%d\n”,data[i*step+j*channels+k],i,j);
cvFloodFill(img,seed,newval,lodiff,highdiff, NULL,CV_FLOODFILL_FIXED_RANGE,NULL);                                                                              }
else
{
;
}
}
}
//printf(“\n”);
}
cvShowImage(“Flood Fill”,img);
// Gaussian smooth
dst = cvCloneImage(img);
cvSmooth( img, dst, CV_GAUSSIAN, 3, 3, 0, 0 );
cvShowImage(“Smooth”,dst);
// Erode the image
dst1 = cvCloneImage(img);
IplConvKernel* kern = cvCreateStructuringElementEx(3,3,1,1,CV_SHAPE_RECT,values);
cvErode(dst,dst1,kern,1);
cvShowImage(“Erode”,dst1);
// Perform dilation operation
dst2 = cvCloneImage(img);
cvDilate(dst1,dst2,kern,1);
cvShowImage(“Dilate”,dst2);
// Filter the image with convolution kernel. Sharpen the image
dst3 = cvCloneImage(img);
printf(“reached here\n”);
cvFilter2D(dst2,dst3,&kernel,cvPoint(-1,-1));
cvShowImage(“Filter”,dst3);
// Smoothen the image
dst4 = cvCloneImage(img);
cvSmooth( dst3, dst4, CV_MEDIAN, 3, 0, 0, 0 );
cvShowImage(“Smooth1”,dst4);
// Cleanup
cvWaitKey(0);
cvReleaseImage(&img);
cvReleaseImage(&dst);
cvDestroyWindow(“Original”);
vDestroyWindow(“Restore”);

}

Checkout my book ‘Deep Learning from first principles Second Edition- In vectorized Python, R and Octave’.  My book is available on Amazon  as paperback ($18.99) and in kindle version($9.99/Rs449).

You may also like my companion book “Practical Machine Learning with R and Python:Second Edition- Machine Learning in stereo” available in Amazon in paperback($12.99) and Kindle($9.99/Rs449) versions.


Find me on Google+
