Architecting a cloud based IP Multimedia System (IMS)

The full article is included below


This article describes an innovative technique of “cloudifying” the network elements of the IP Multimedia (IMS) framework in order to take advantage of keys benefits of the cloud like elasticity and the utility style pricing. This approach will provide numerous advantages to the Service Provider like better Return-on-Investment(ROI), reduction in capital expenditure and quicker deployment times,  besides offering the end customer benefits like the availability of high speed and imaginative IP multimedia services


IP Multimedia Systems (IMS) is the architectural framework proposed by 3GPP body to establish and maintain multimedia sessions using an all IP network. IMS is a grand vision that is access network agnostic, uses an all IP backbone to begin, manage and release multimedia sessions. This is done through network elements called Call Session Control Function (CSCFs), Home Subscriber Systems (HSS) and Application Servers (AS). The CSCFs use SDP over SIP protocol to communicate with other CSCFs and the Application Servers (AS’es). The CSCFs also use DIAMETER to talk to the Home Subscriber System (HSS’es).

Session Initiation Protocol (SIP) is used for signaling between the CSCFs to begin, control and release multi-media sessions and Session Description Protocol (SDP) is used to describe the type of media (voice, video or data). DIAMETER is used by the CSCFs to access the HSS. All these protocols work over IP. The use of an all IP core network for both signaling and transmitting bearer media makes the IMS a very prospective candidate for the cloud system.

This article  proposes a novel technique of “cloudifying” the network elements of the IMS framework (CSCFs) in order to take advantage of the cloud technology for an all IP network. Essentially this idea proposes deploying the CSCFs (P-CSCF, I-CSCF, S-CSCF, BGCF) over a public cloud. The HSS and AS’es can be deployed over a private cloud for security reasons. The above network elements either use SIP/SDP over IP or DIAMETER over IP. Hence these network elements can be deployed as instances on the servers in the cloud with NIC cards. Note: This does not include the Media Gateway Control Function (MGCF) and the Media Gate Way (MGW) as they require SS7 interfaces. Since IP is used between the servers in the cloud the network elements can setup, maintain and release SIP calls over the servers of the cloud. Hence the IMS framework can be effectively “cloudified” by adopting a hybrid solution of public cloud for the CSCF entities and the private cloud for the HSS’es and AS’es.

This idea enables the deployment of IMS and the ability for the Operator, Equipment Manufacturer and the customer to quickly reap the benefits of the IMS vision while minimizing the risk of such a deployment.


IP Multimedia Systems (IMS) has been in the wings for some time. There have been several deployments by the major equipment manufacturers, but IMS is simply not happening. The vision of IMS is truly grandiose. IMS envisages an all-IP core with several servers known as Call Session Control Function (CSCF) participating to setup, maintain and release of multi-media call sessions. The multi-media sessions can be any combination of voice, data and video.

In the 3GPP Release 5 Architecture IMS draws an architecture of Proxy CSCF (P-CSCF), Serving CSCF(S-CSCF), Interrogating CSCF(I-CSCF), and Breakout CSCF(BGCF), Media Gateway Control Function (MGCF), Home Subscriber Server(HSS) and Application Servers (AS) acting in concert in setting up, maintaining and release media sessions. The main protocols used in IMS are SIP/SDP for managing media sessions which could be voice, data or video and DIAMETER to the HSS.

IMS is also access agnostic and is capable of handling landline or wireless calls over multiple devices from the mobile, laptop, PDA, smartphones or tablet PCs. The application possibilities of IMS are endless from video calling, live multi-player games to video chatting and mobile handoffs of calls from mobile phones to laptop. Despite the numerous possibilities IMS has not made prime time.

The technology has not turned into a money spinner for Operators. One of the reasons may be that Operators are averse to investing enormous amounts into new technology and turning their network upside down.

The IMS framework uses CSCFs which work in concert to setup, manage and release multi media sessions. This is done by using SDP over SIP for signaling and media description. Another very prevalent protocol used in IMS is DIAMETER.  DIAMETER is the protocol that is used for authorizing, authenticating and accounting of subscribers which are maintained in the Home Subscriber System (HSS). All the above protocols namely SDP/SIP and DIAMETER protocols work over IP which makes the entire IMS framework an excellent candidate for deploying on the cloud.


There are 6 key benefits that will accrue directly from the above cloud deployment for the IMS. Such a cloud deployment will

i.    Obviate the need for upfront costs for the Operator

ii.    The elasticity and utility style pricing of the cloud will have multiple benefits for the Service Provider and customer

iii.   Provider quicker ROI for the Service Provider by utilizing a innovative business model of revenue-sharing for the Operator and the equipment manufacturer

iv.   Make headway in IP Multimedia Systems

v.   Enable users of the IMS to avail of high speed and imaginative new services combining voice, data, video and mobility.

vi.   The Service Provider can start with a small deployment and grow as the subscriber base and traffic grows in his network

Also, a cloud deployment of the IMS solution has multiple advantages to all the parties involved namely

a)   The Equipment manufacturer

b)   The Service Provider

c)   The customer

A cloud deployment of IMS will serve to break the inertia that Operators have for deploying new architectures in the network.

a)   The Equipment manufactures for e.g. the telecommunication organizations that create the software for the CSCFs can license the applications to the Operators based on innovative business model of revenue sharing with the Operator based on usage

b)   The Service Provider or the Operator does away with the Capital Expenditure (CAPEX) involved in buying CSCFs along with the hardware.  The cost savings can be passed on to the consumers whose video, data or voice calls will be cheaper. Besides, the absence of CAPEX will provide better margins to the operator. A cloud based IMS will also greatly reduce the complexity of dimensioning a core network. Inaccurate dimensioning can result in either over-provisioning or under-provisioning of the network.  Utilizing a cloud for deploying the CSCFs, HSS and AS can obviate the need upfront infrastructure expenses for the Operator. As mentioned above the Service Provider can pay the equipment manufactured based on the number of calls or traffic through the system

c)   Lastly the customer stands to gain as the IMS vision truly allows for high speed multimedia sessions with complex interactions like multi-party video conferencing, handoffs from mobile to laptop or vice versa. Besides IMS also allows for whiteboarding and multi-player gaming sessions.

Also the elasticity of the cloud can be taken advantage of by the Operator who can start small and automatically scale as the user base grows.


This article describes a method in which the Call Session Control Function (CSCFs) namely the P-CSCF, S-CSCF,I-CSCF and BGCF can be deployed on a public cloud.  This is possible because there are no security risks associated with deploying the CSCFs on the public cloud. Moreover the elasticity and the pay per use of the public cloud are excellent attributes for such a cloudifying process. Similarly the HSS’es and AS’es can be deployed on a private cloud.  This is required because the HSS and the AS do have security considerations as they hold important subscriber data like the IMS Public User Identity (IMPU) and the IMS Private User Identity (IMPI).  However, the Media Gateway Control Function (MGCF) and Media Gateway (MGW) are not included this architecture as these 2 elements require SS7 interfaces

Using the cloud for deployment can bring in the benefits of zero upfront costs, utility style charging based on usage and the ability to grow or shrink elastically as the call traffic expands or shrinks.

This is shown diagrammatically below where all the IMS network elements are deployed on a cloud.

In Fig 1., all the network elements are shown as being part of a cloud.


Fig 1. Cloudifying the IMS architecture.

Detailed description

This idea requires that the IMS solution be “cloudified “i.e. the P-CSCF, I-CSCF, S-CSCF and the BGCF should be deployed on a public cloud. These CSCFs are used to setup, manage and release calls and the information that is used for the call does not pose any security risk. These network elements use SIP for signaling and SDP over SIP for describing the media sessions. The media sessions can be voice, video or data.

However the HSS and AS which contain the Public User Identity (IMPU) and Private User Identity (IMPI)  and other important data  can be deployed in a private cloud. Hence the IMS solution needs a hybrid solution that uses both the public and private cloud. Besides the proxy SIP servers, Registrars and redirect SIP servers also can be deployed on the public cloud.

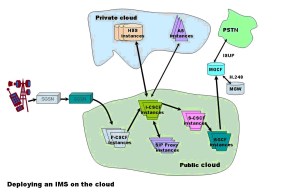

The figure Fig 2. below shows how a hybrid cloud solution can be employed for deploying the IMS framework


Fig 2: Utilizing a hybrid cloud solution for deploying the IMS architecture

The call from a user typically originated from a SIP phone and will initially reach the P-CSCF. After passing through several SIP servers it will reach a I-CSCF. The I-CSCF will use DIAMETER to query the HSS for the correct S-CSCF to handle the call. Once the S-CSCF is identified the I-CSCF then signals the S-CSCF to reach a terminating a P-CSCF and finally the end user on his SIP phone.  Since the call uses SDP over SIP we can imagine that the call is handled by P-CSCF, I-CSCF, S-CSCF and BGCF instances on the cloud. Each of the CSCFs will have the necessary stacks for communicating to the next CSCF. The CSCF typically use SIP/SDP over TCP or UDP and finally over IP. Moreover query from the I-CSCF or S-CSCF to the HSS will use DIAMTER over UDP/IP.  Since IP is the prevalent technology between servers in the cloud communication between CSCFs is possible.


The Call Session Control Functions (CSCFs P-CSCF, I-CSCF, S-CSCF, BGCF) typically handle the setup, maintenance and release of SIP sessions. These CSCFs use either SIP/SDP to communicate to other CSCFs, AS’es or SIP proxies or they use DIAMETER to talk to the HSS. SIP/SDP is used over either the TCP or the UDP protocol.

We can view each of the CSCF, HSS or AS as an application capable of managing SIP or DIAMETER sessions. For this these CSCFs need to maintain different protocol stacks towards other network elements. Since these CSCFs are primarily applications which communicate over IP using protocols over it, it makes eminent sense for deploying these CSCFs over the cloud.

The public cloud contains servers in which instances of applications can run in virtual machines (VMs). These instances can communicate to other instances on other servers using IP. In essence the entire IMS framework can be viewed as CSCF instances which communicate to other CSCF instances, HSS or AS over IP. Hence to setup, maintain and release SIP sessions we can view that instances of P-CSCF, I-CSCF, S-CSCF and B-CSCF executed as separate instances on the servers of a public cloud and communicated using the protocol stacks required for the next network element. The protocol stacks for the different network elements is shown below

The CSCF’s namely the P-CSCF, I-CSCF, S-CSCF & the BGCF all have protocol interfaces that use IP. The detailed protocol stacks for each of these network elements are shown below. Since they communicate over IP the servers need to support 100 Base T Network Interface Cards (NIC) and can typically use RJ-45 connector cables, Hence it is obvious that high performance servers which have 100 Base T NIC cards can be used for hosting the instances of the CSCFs (P-CSCF, I-CSCF, S-CSCF and BGCF). Similarly the private cloud can host the HSS which uses DIAMETER/TCP-SCTP/IP and AS uses SDP/SIP/UDP/IP. Hence these can be deployed on the private cloud.

Network Elements on the Public Cloud

The following network elements will be on the public cloud


The interfaces of each of the above CSCFs are shown below

a)   Proxy CSCF (P-CSCF) interface



As can be seen from above all the interfaces (Gm, Gq, Go and Mw) of the P-CSCF are either UDP/IP or SCTP/TCP/IP.

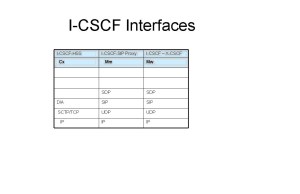

b)   Interrogating CSCF(I- CSCF) interface



As can be seen from above all the interfaces (Cx, Mm and Mw) of the I-CSCF are either UDP/IP or SCTP/TCP/IP.

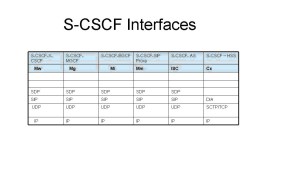

c)   Serving CSCF (S-CSCF) interfaces

The interfaces of the S-CSCF (Mw, Mg, Mi, Mm, ISC and Cx) are all either UDP/IP or SCTP/TCP/IP


d)   Breakout CSCF (BGCF) interface

The interfaces of the BGCF (Mi, Mj, Mk) are all UDP/IP.


Network elements on the private cloud

The following network elements will be on the private cloud

a)   HSS b) AS

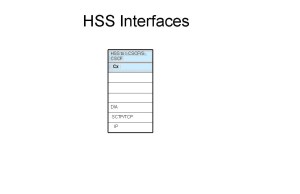

a)   Home Subscriber Service (HSS) interface

The HSS interface (Cx) is DIAMETER/SCTP/TCP over IP.


b)   Application Server (AS) Interface


The AS interface ISC is SDP/SIP/UDP over IP.

As can be seen the interfaces the different network elements have towards other elements are over either UDP/IP or TCP/IP.

Hence we can readily see that a cloud deployment of the IMS framework is feasible.



Thus it can be seen that a cloud based IMS deployment is feasible given the IP interface of the CSCFs, HSS and AS. Key features of the cloud like elasticity and utility style charging will be make the service attractive to the Service providers. A cloud based IMS deployment is truly a great combination for all parties involved namely the subscriber, the Operator and the equipment manufactures. A cloud based deployment will allow the Operator to start with a small customer base and grow as the service becomes popular. Besides the irresistibility of IMS’ high speed data and video applications are bound to capture the subscribers imagination while proving a lot cheaper.

Also see my post on “Envisioning a Software Defined Ip Multimedia System (SD-IMS)

Find me on Google+

A method for optimal bandwidth usage by auctioning available bandwidth using the OpenFlow protocol

Here is a recent idea of mine that has made it to (Intellectual See link

A method for optimal bandwidth usage by auctioning available bandwidth using the OpenFlow protocol.  Here is the full article from

In this article I provide some more details to my earlier post – Towards an auction-based internet.

As the data that traverses the internet continues to explode exponentially the issue of a huge bandwidth crunch will be a distinct possibility in the not too distant future. This invention describes a novel technique for auctioning the available bandwidth to users based on bid price, quality of service expected and the type of traffic. The method suggested in this invention is to use the OpenFlow protocol to dynamically allocate bandwidth to users for different flows over a virtualized network infrastructure.

Powerful smartphones, bandwidth-hungry applications, content-rich applications, and increasing user awareness, have together resulted in a virtual explosion of mobile broadband and data usage. There are 2 key drivers behind this phenomenal growth in mobile data. One is the explosion of devices viz. smartphones, tablet PCs, e-readers, laptops with wireless access. The second is video. Over 30% of overall mobile data traffic is video streaming, which is extremely bandwidth hungry. Besides these, new technologies like the “Internet of Things” & “Smart Grids” now have millions and millions of sensors and actuators connected to the internet and contending for scarce bandwidth. In other words there is an enormous data overload happening in the networks of today.
Two key issues of today’s computing infrastructure deal with data latency and the economics of data transfer. Jim Gray (Turing award in 1998) in his paper on “Distributed Computing Economics” tells us that the economics of today’s computing depends on four factors namely computation, networking, database storage and database access. He then equates $1 as follows
One dollar equates to
= 1 $
≈ 1 GB sent over the WAN
≈ 10 Tops (tera CPU operations)
≈ 8 hours of CPU time
≈ 1 GB disk space
≈ 10 M database accesses
≈ 10 TB of disk bandwidth
≈ 10 TB of LAN bandwidth
As can be seen from above breakup, there is a disproportionate contribution by the WAN bandwidth in comparison to the others. In others words while the processing power of CPUs and the storage capacities have multiplied accompanied by dropping prices, the cost of bandwidth has been high. Moreover the available bandwidth is insufficient to handle the explosion of data traffic.
It is claimed that the “cheapest and fastest way to move a Terabyte cross country is sneakernet (i.e. the transfer of electronic information, especially computer files, by physically carrying removable media such as magnetic tape, compact discs, DVDs, USB flash drives, or external drives from one computer to another).
While there has been a tremendous advancement in CPU processing power (CPU horsepower in the range of petaflops) and enormous increases in storage capacity(of the order of petabytes) coupled with dropping prices, there has been no corresponding drop in bandwidth prices in relation to the bandwidth capacity.
It is in this context an auction-based internet makes eminent sense. An auction-based internet would be a business model in which bandwidth would be allocated to different data traffic on the internet based on dynamic bidding by different network elements. Such an approach becomes imperative while considering the economics and latencies involved in data transfer and the emergence of the promising technology known as the OpenFlow protocol. This is further elaborated below


As mentioned in Jim Turing’s paper a key issue that we are going to face in the future has to do with the economics of data transfer and the associated WAN latencies
As can be seen there are 3 distinct issues with the current state of technology
1) There is an exponential increase in data traffic circling the internet. According to a Cisco report the projected increase in data traffic between 2014 and 2015 is of the order of 200 exabytes (10^18)).The internet is thus clogged due to the many bandwidth hungry applications and millions of devices that make the internet
2) WAN latencies and the economics of data transfers are two key issues of the net
3) Service Providers have not found a good way to monetize this data explosion.
Clearly bandwidth is a resource that needs to be utilized judiciously given that there are several contenders for the usage of bandwidth.
Detailed description: This invention suggests a scheme by which internet bandwidth can be auctioned between users based on their bid price, Quality of Service (QoS) required and the type of traffic (video, voice, data, streaming). The energy utility already auctions electricity to the highest bidder. This invention suggests a similar approach to auction scarce bandwidth to competing bidders.
The internet pipes get crowded at different periods of the day, during seasons and during popular sporting events. This invention suggests the need for an intelligent network to price data transfer rates differently depending on the time of the day, the type of traffic and the quality of service required. In this scheme of things the internet will be based on an auction mechanism in which different devices bid for scarce bandwidth based on the urgency, speed and quality of services required.
Such a network can be realized today provided the network and the network elements that constitute the internet implement the OpenFlow protocol.
Software Defined Networks (SDNs) is the new, path breaking innovation in which network traffic can be controlled programmatically through the use of the OpenFlow protocol. SDN is the result of pioneering effort by Stanford University and University of California, Berkeley and is based on the Open Flow Protocol and represents a paradigm shift to the way networking elements operate.

SDNs can be made to dynamically route traffic flows based on decisions in real time. The flow of data packets through the network can be controlled in a programmatic manner through the OpenFlow protocol. In order to dynamically allocate smaller or fatter pipes for different flows, it necessary for the logic in the Flow Controller to be updated dynamically based on the bid price, QoS parameters and the traffic type.

The OpenFlow protocol has a Flow Controller element which can be made to create different flows by manipulating the flow tables of the different network elements. Hence the Flow Controller depending on the bid price, the bandwidth rate and the QoS will auction the different bids and create different flows for different users. The Flow Controller will then update the flow tables of the network elements that will participate to realize this end-to-end flow of traffic for different users.

A typical scenario can be visualized as below


In the above figure different users bid for available bandwidth. For e.g. User A could bid for A Mbps @ $a/bit for traffic type A, User B could bid for B Mbps @ $b/bit for traffic type B and User C could bid for C Mbps @ $c/bit for traffic type C. The different QoS parameters like delay, throughput, and jitter are all sent in the user requests. The Flow controller receives all these bids with associated parameters and auctions the available bandwidth against the bid prices that the network elements bid for. The Flow Controller then ranks the bids against the most optimal bandwidth allocation that has the highest return.

The Flow Controller can then allocate different bandwidths to the different users based on the bids from the highest to the lowest, quality of service and the type of traffic. Software Defined Networks (SDNs) can then create different flows for across the networks. SDN can create different slices of network elements from end-to–end for each of the different flow requirements.

The Flow Controller can then create these flows and update the flow tables of the network elements based on the allotted speeds for the bid price.

This is shown diagrammatically below



For e.g. we could assume that a corporate has 3 different flows namely, Immediate, ASAP (As soon as possible) and  price below $x. Based on the upper ceiling for the bid price, the OpenFlow controller will allocate a flow for the immediate traffic of the corporation. For the ASAP flow, the corporate would have requested that the flow be arranged when the bid price falls between a range $a – $b. The OpenFlow Controller will ensure that it can arrange for such a flow. The last type of traffic will be allotted a default flow during non-peak hours. This will require that the OpenFlow controller be able to allocate different flows dynamically based on winning the auction process that happens in this scheme.

Using the OpenFlow paradigm to auction bandwidth

These will be the typical steps that will occur during

  1. Let us assume that it is the period of the day when the usage is at its peak
  2. Let there be 3 users User A, User B and User C who would like to video-conference, video stream and make a voice call respectively
  3. Depending on the urgency and the price that the users can afford these 3 users will bid for a slice of a bandwidth to complete their call
  4. Let user A request A Mbps @ $a/bit for QoS parameters p(a). Let user B request B Mbps @ $b/bit for QoS parameters p(b) and user C request C Mbps @ $c/bit for QoS parameters p(c).
  5. When the Flow Controller receives these requests, based on the available bandwidth at its disposal (assuming it has already used X Mbps for already existing flows) it will normalize these requests and auction them so that it results in the highest bid winning its requested bandwidth slice followed by the ones lower than it. If a user does not qualify the auction the user will have a bid at a later time according to some algorithm. Let us assume that user A and user C win their bids
  6. The Flow Controller will now algorithmically decide the contents of the flow tables of the intervening network elements and will accordingly populate these flow tables
  7. The flows for User A and User C are now in progress.
  8. The Flow Controller will accept bids whenever there is spare bandwidth that can be put up for auction.

As can be seen such a mechanism will result in a varying price for bandwidth with the highest value during peak periods and lower values during off-peak periods.

Benefits: The current protocols of the internet of today namely IntServ, DiffServ allocate pipes based on the traffic type & class which is static once allocated. This strategy enables OpenFlow to dynamically adjust the traffic flows based on the current bid price prevailing in that part of the network. Moreover the usage of OpenFlow protocol can generate a lot more granualar flow types.

The ability of the OpenFlow protocol to be able to dynamically allocate different flows will once and for all solve the problem of being able to monetize mobile and fixed line data This will be a win-win for both the Service Providers and the consumer. The Service Provider will be able to get a ROI for the infrastructure based on the traffic flowing through his network. Users can decide the type of service they are interested and choose appropriately. The consumer rather than paying a fixed access charge could have a smaller charge because of low bandwidth usage.

Conclusion: An auction-based internet is a worthwhile business model to pursue. The ability to route traffic dynamically based on an auction mechanism in the internet enables the internet infrastructure to be utilized optimally. It will serve the dual purpose of solving traffic congestion, as highest bidders will get the pipe but will also monetize data traffic based on its importance to the end user.

Find me on Google+
